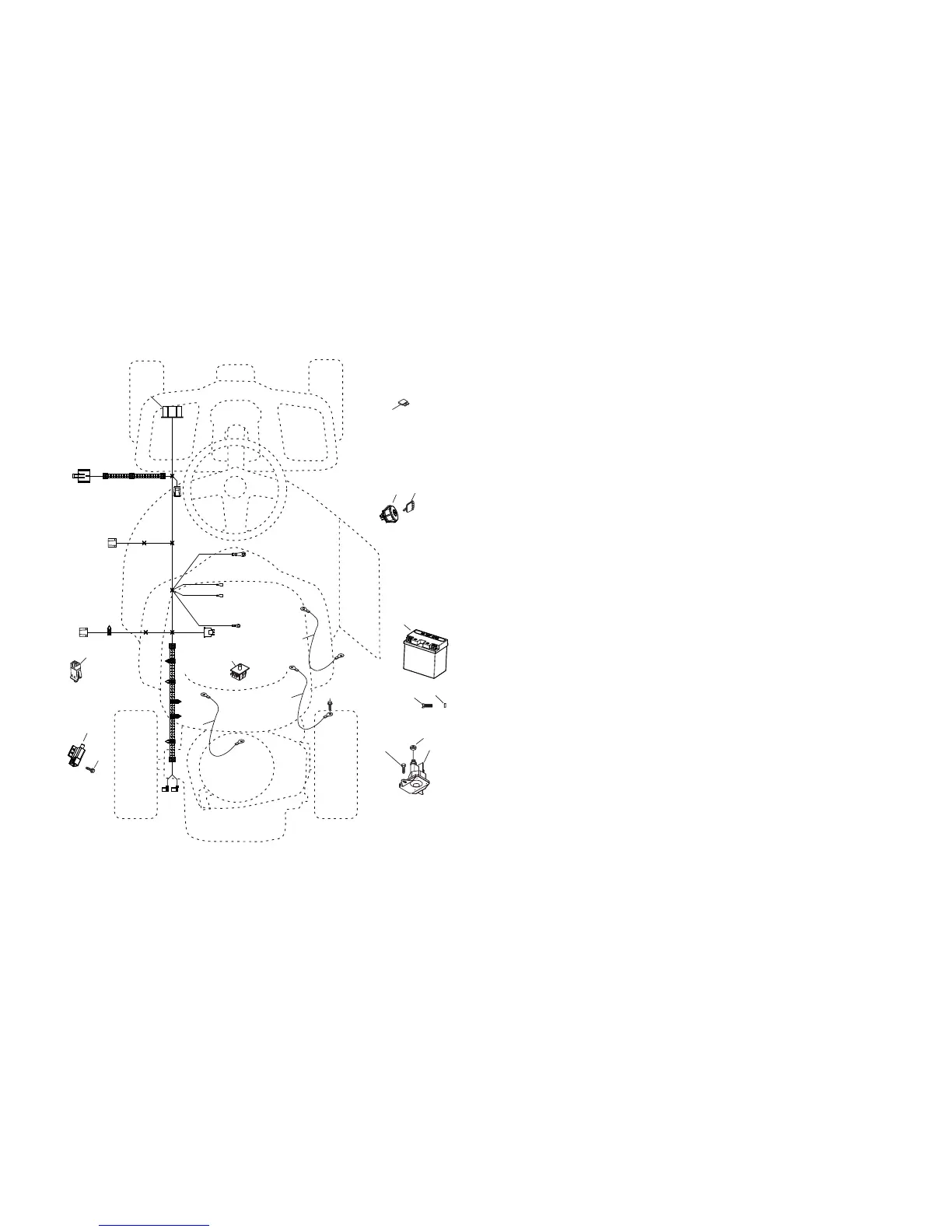

McCulloch MC30 Repair Parts Manual

16
LRV2
10
9
12
1
3
4
25
23
22
24
13
15
17
16
20
21
19
18
TONDEUSE AUTOPORTÉE NO. DE CATALOGUE MC30 (96028000201)
ÉLECTRIQUE
NO. DE PROD. 960 28 00-02
13
1 532 43 68-48 DECK
2 532 19 28-70 MANDREL ASM
3 532 43 68-56 KEEPER, BELT
4 532 43 68-55 PULLEY, MANDREL
5 532 44 15-97 BELT
6 532 43 68-63 COVER, MANDREL
7 532 43 67-34 LIFT ASM, DECK
8 532 42 91-95 LINK. LIFT. FIXED
9 532 42 93-97 LINK AMS. LIFT ADJUSTABLE
10 532 43 96-38 DEFLECTOR
12 532 43 66-47 PIN, HINGE
13 532 43 74-62 SPRING, TORSION
14 532 19 51-85 ARM, MOWER SUPPORT
17 819 19 19-12 WASHER
18 532 19 42-09 PIN
19 532 19 65-39 BOLT, SHOULDER
20 532 19 42-08 PIN COTTER 5/16 BOW TIE LOCK
21 819 17 19-12 WASHER 17/32 X 1-3/16 X 12 GA.
22 532 44 15-98 LINK ASM DECK
25 532 12 47-88 RETAINER SPRING 1"
26 532 18 76-90 SPACER, MANDREL
27 532 17 39-84 BOLT, MANDREL
28 532 40 02-34 NUT FLANGE LOCK TOP
29 532 41 92-73 BLADE
30 532 19 30-03 BOLT, BLADE
31 532 19 31-97 PULLEY, IDLER
32 532 14 10-43 GUARD, IDLER TUV
34 872 11 06-12 BOLT, 3/8-16 X 1 1/2
35 532 19 94-70 ARM, BRAKE
36 532 13 77-29 SCREW THD ROLL 1/4-20 X 5/8
37 873 90 06-00 NUT, 3/8-16 FLANGE
40 819 17 16-16 WASHER, 16 GA.
48 532 43 68-57 ARM CLUTCHING
49 532 19 90-92 SPACER RETAINER
50 817 00 06-16 SCREW 3/8-16 X 1
52 817 60 04-06 SCREW 1/4-20 X 3/8
53 532 40 18-72 SPRING RETURN DECK
54 532 43 57-26 BALL BEARING
55 532 43 79-88 E-RING 5/16
56 532 43 68-62 ROD ANTI-SWAY
57 819 13 13-12 WASHER 13/32 X 13/16 X 12 GA
59 532 43 68-58 GUARD TUV IDLER
61 532 43 79-47 MULCH COVER ASM
62 532 17 62-05 TRUNION SUSPENSION ARM
63 532 17 59-94 NUT LIFT LINK 7/16-20
64 817 67 06-08 SCREW THDROL 3/8-16 X 1/2
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER MODEL NUMBER MC30 (96028000201)
MOWER DECK
PRODUCT NUMBER 960 28 00-02
