24
6
36
18
18
5
4
3
26
2
1
27
27
13
55
12
19
19
17
14
17
29
30
63
63
62
22
64
28
10
61
25
31
37
50
49
48
59
34
34
52
35
53
32
37
37
57
20
56
57
20
LRV-B_Deck_4_r2
7
37
9
21
18
19
19
40
40
8
TONDEUSE AUTOPORTÉE NO. DE CATALOGUE MC30 (96028000201)

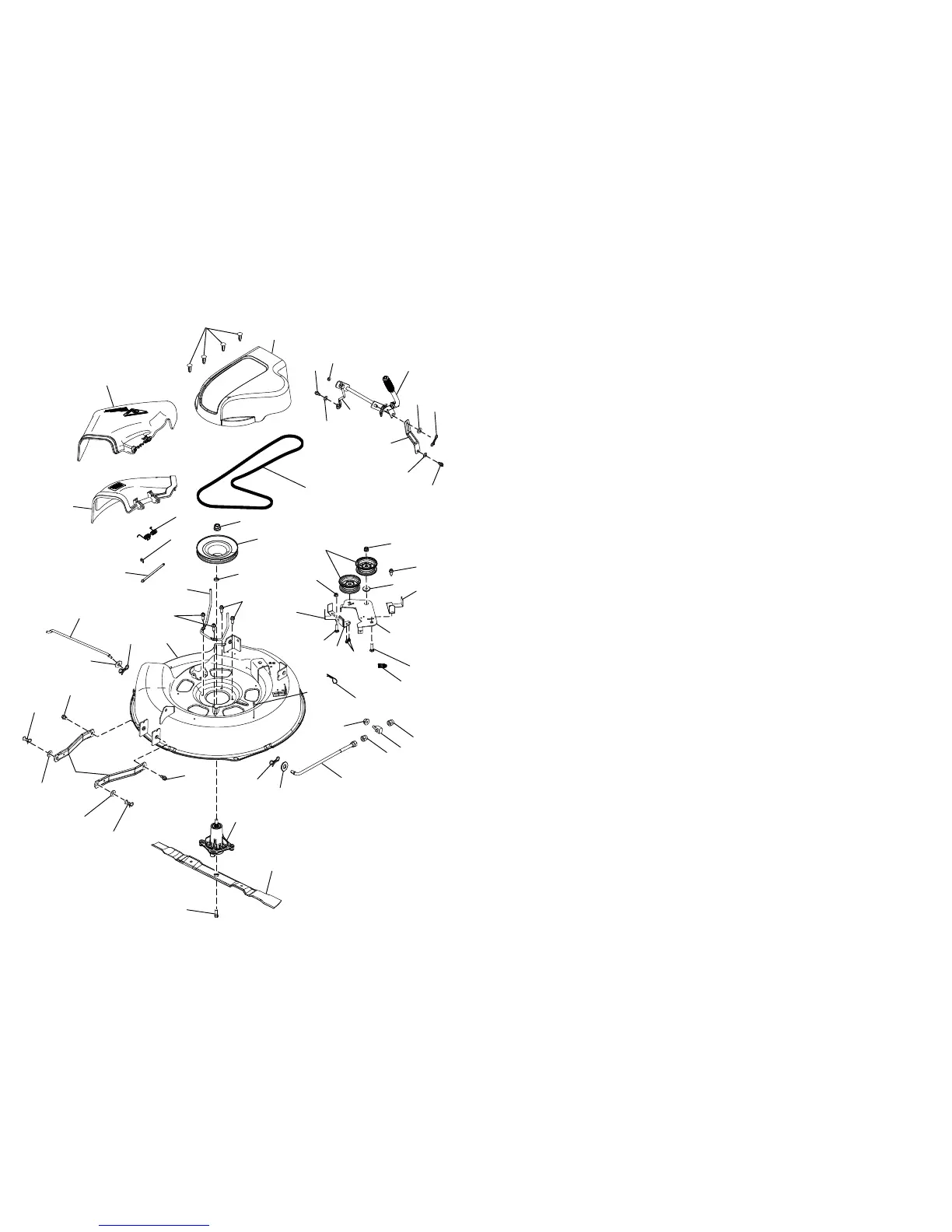

PLATEAU DE COUPE
NO. DE PROD. 960 28 00-02
5
1 532 43 65-51 BATTERY
3 532 19 33-50 SWITCH, IGN, DLTA, P-IN, ROS
4 532 41 19-33 KEY/CHAIN
9 532 10 95-53 SWITCH, INTLK,CL, MWR, GRY
10 532 17 61-38 SWITCH, INTERLOCK, NONC,GRAY
12 532 19 27-49 SWITCH, SEAT, DP, ROS
13 532 43 72-28 HARNESS, IGN, ELECTSTART, LRV
15 532 19 25-07 SOLENOID
16 817 72 04-08 SCREW THD CUT 1/4-20 X 1/2 TY23
17 873 51 04-00 NUT KEPS HEX 1/4-20 UNC
18 532 41 66-94 CABLE BATTERY
19 532 42 12-99 CABLE STARTER
20 532 42 12-98 CABLE GROUND
21 817 06 05-12 SCREW 5/16-18 X 3/4
22 532 44 21-48 SCREW HEX M5X0.8.9MM
23 532 43 81-22 NUT M5
24 818 10 10-12 SCREW TORX #10-14 X .750
25 532 44 16-22 FUSE, 10
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER MODEL NUMBER MC30 (96028000201)
ELECTRICAL
PRODUCT NUMBER 960 28 00-02
