REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC621ES (96182000601)

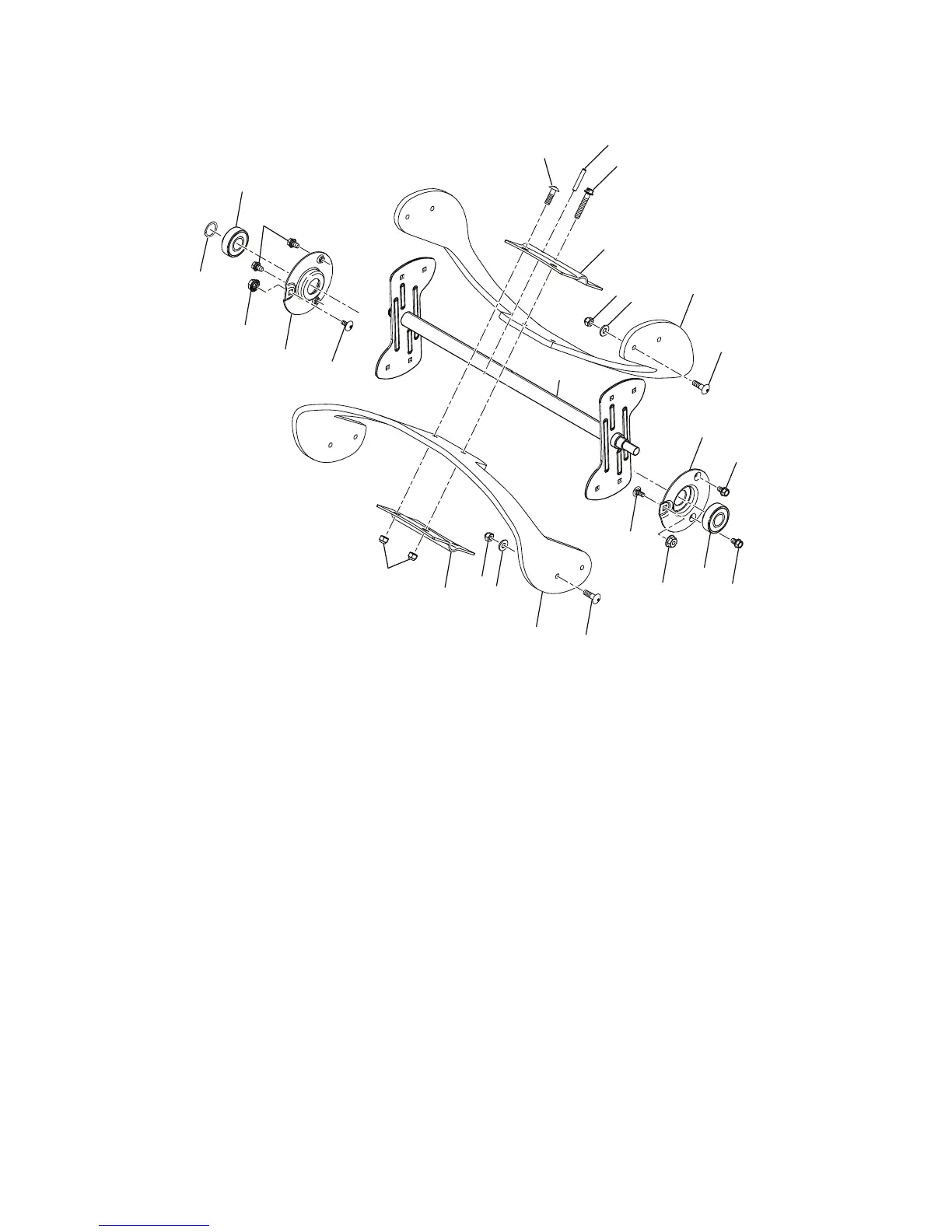

AUGER ASSEMBLY
9
9
10
10
1
2
3
4
5
6
7
7
8
11
11
11
12
12
13
13
4
5
5
6
1
1
14
SSST-Auger asm_1
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. QTY DESCRIPTION
1 72110407 12 BOLT.CARRIAGE
2 5142H 1 PIN.ROLL.3/16 X 1-1/4
3 199687 1 BOLT.1/4-20.1.50"
4 434777X431 2 PLATE.CENTER.BLADE
5 132004 13 HEX.NUT.1/4-20 NYLON LOCKING
6 19091016 8 WASHER 9/32 X 5/8 X 16 GA.
7 442759 2 BLADE.AUGER
8 434862X428 1 WELDMENT.AUGER.ASM
9 434010X431 2 SUPPORT.BEARING.SSST.PNT
10 110485X 2 BEARING.BALL.MANDREL
11 17600406 4 SCREW.HEX.WASHEAD.1/4-20 X 3/8
12 72110404 2 BOLT.CARR.SS.1/4-20 UNC X 1/2.GR5
13 438130 2 WHIZ.LOCK.NUTS.BEARING CAPS
14 12000028 1 RETAINING.CLIP
