28
REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC621ES (96182000601)

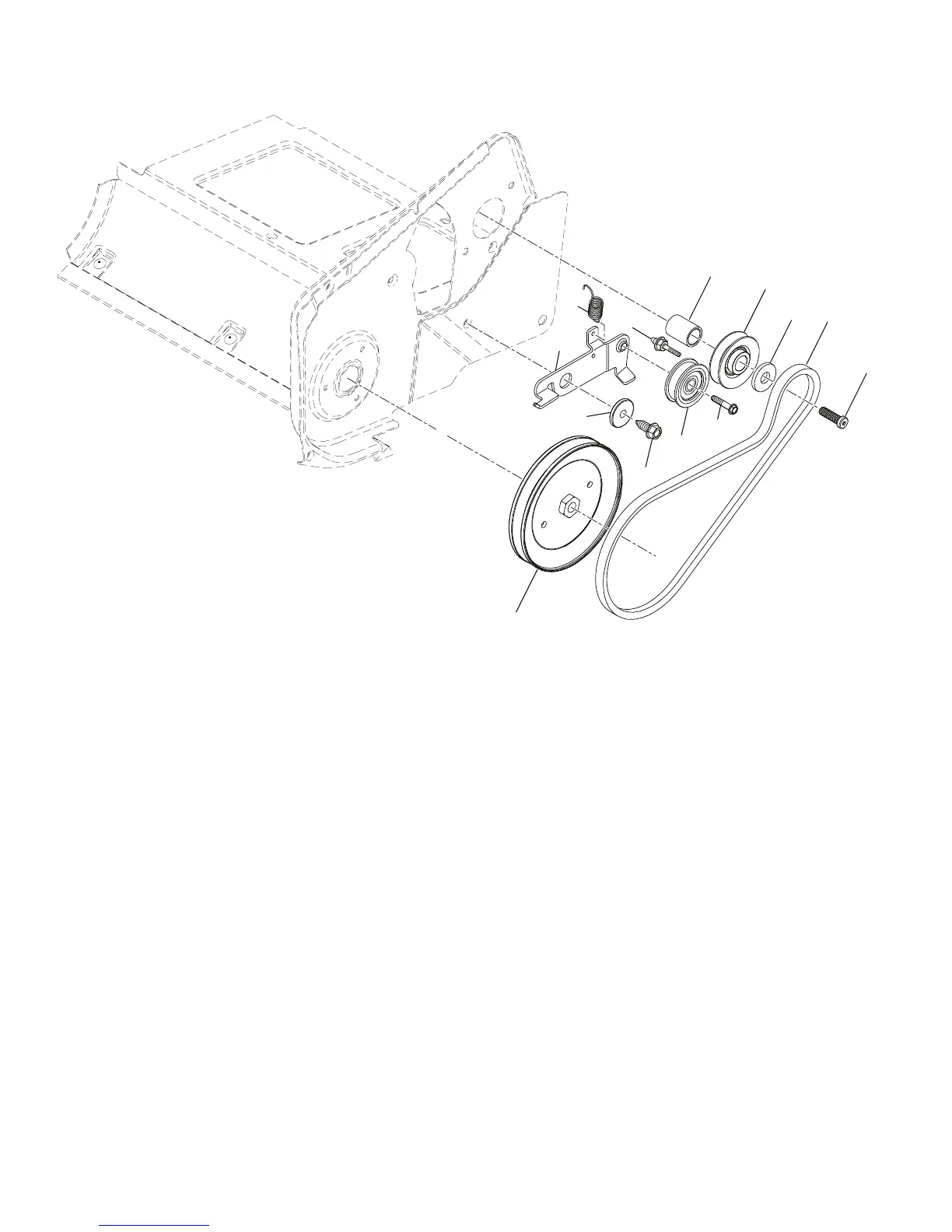

DRIVE ASSEMBLY
9
1
2
3
4
5
6
8
7
10
11
12
13
SSST-Drive asm_3
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. QTY DESCRIPTION
1 434860 1 SPACER.ENGINE.CRANK
2 434502 1 KEEPER.ENGINE.BELT
3
426490
1 PULLEY.ENG.TRACTION.3/4
4 851074 1 WASHER.HARDEN
5 437261 1 BELT-V.TRACTION
6 430817 1 SCREW.CAP.SCHD.3/8-24 X 1.25
7 434859 1 SPRING.IDLER.PULLEY.RETURN
8 434848X431 1 ARM.IDLER.PNT.MS431
9 166043 1 PULLEY.IDLER.BACKSIDE
10 17060620 1 SCREW.HXWH.THDRL.1/4-20X1-1/4
11 199092 1 SPACER.RETAINER
12 17060620 1 SCREW.3/8-16X1.SMGML.TAP/R.BLK
13 435383 1 PULLEY.DRIVEN
- - 443614 1 OWNER'S.MANUAL.ENGLISH/FRENCH
