REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC621ES (96182000601)

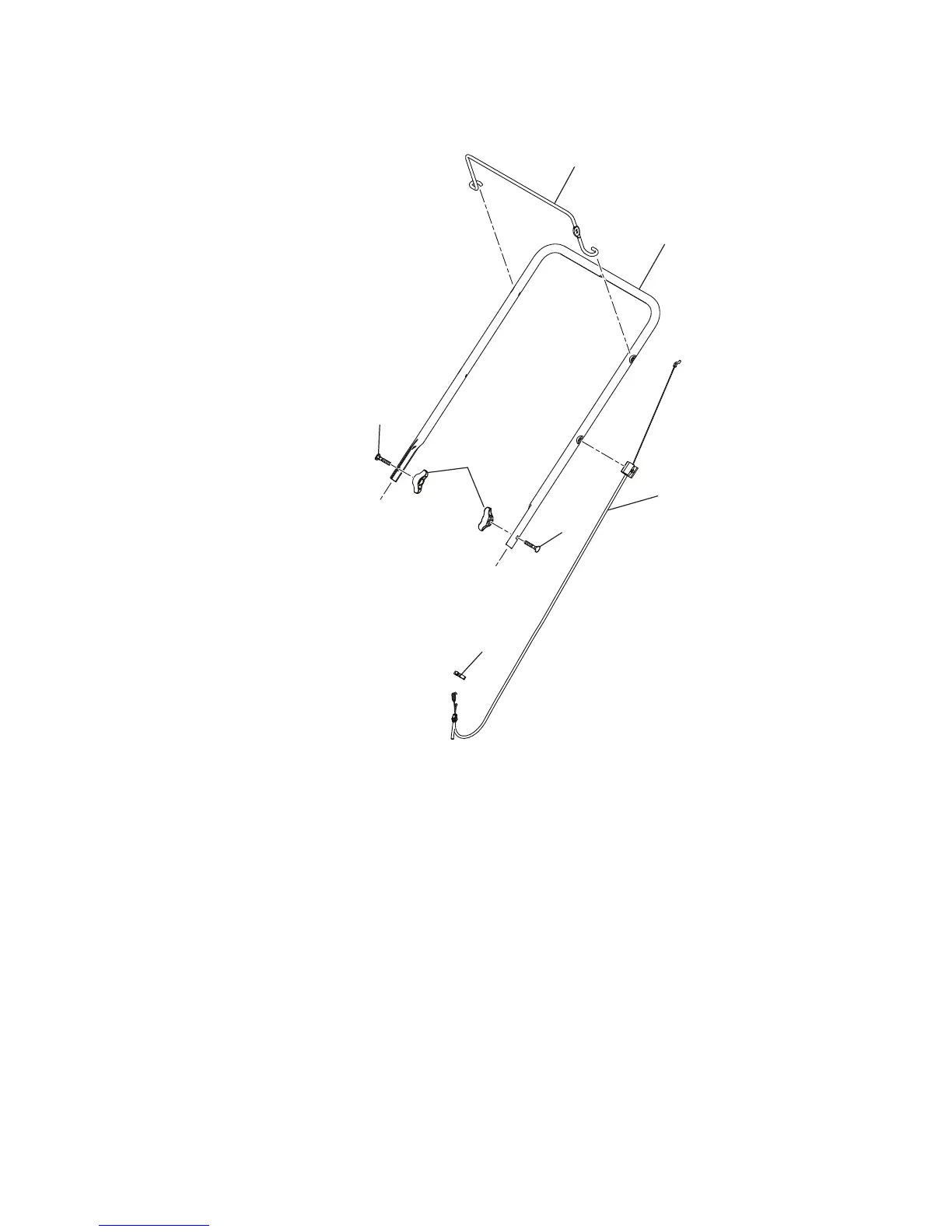

HANDLE ASSEMBLY
1
2
3
4
5
5
6
SSST-Handle asm_1
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1 442888X421 1 BAIL.HANDLE.PAINT.MS431
2 442595X431 1 HANDLE.PNT.UPPER.SSST
3 434806 1 CONTROL.CABLE
4 189713X428 2 KNOB.HANDLE.BLACK
5 191574 2 BOLT.HANDLE.BLACK PATCHED
6 145006 1 CLIP.PUSH-IN.HINGED
