8
Connect shift rod
a. Insert end of shift rod into hole of shift lever indicator.
b. Insert hairpin clip through hole of shift rod to secure.
Tire pressure
Reduce tire pressure to 20 PSI (Tires were over in flated for
shipping purposes). If tire pres sures are not equal, tiller will
pull to one side.
3
2
1
4
6

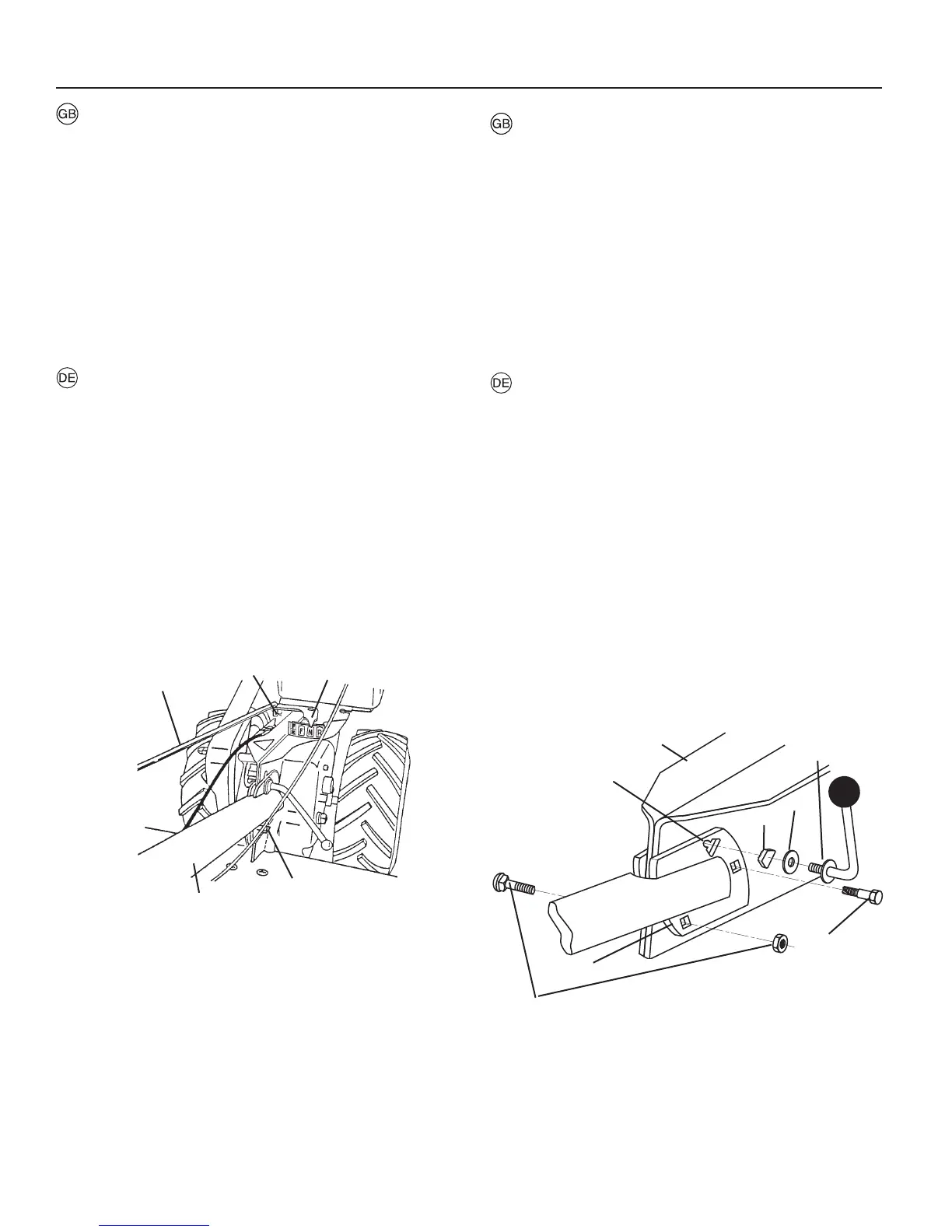

Figure 3
Inset
1. Shift rod
2. Hairpin clip
3. Shift lever indicator
4. Handle assembly
5. Carriage bolt and lock nut
6. Handle base
7. Slot
8. Greasecase
9. Handle lock
10. Washer
11. Handle lock lever
12. Pivot bolt
2
handles_34
10
9
8
7
6
11
12
5
Anschluß der Schaltstange
a. Das Ende der Schaltstange in das Loch der
Schalthebelanzeige einsetzen.
b. Den Haarnadelsplint durch das Loch in der Schaltstange
führen, um diese zu sichern.
Reifendruck
Reifenluftdruck auf ca. 1,4 bar absenken (Die Reifen werden
für Transportzwecke auf übermäßig hohen Druck aufgepumpt).
Wenn die Reifendrücke nicht gleichmäßig sind, zieht die
Bodenfräse nach einer Seite.
1. Schaltstange
2. Haarnadelklemme
3. Schalthebelanzeiger
4. Handgriffmontagesatz
5. Wagenbolzen und Kontermutter
6. Handgriffplatte
7. Schlitz
8. Getriebegehäuse
9. Handgriffsperre
10. Unterlegscheibe
11. Handgriffsperrenhebel
12. Gelenkbolzen
Abb 3
Ausschnitt

Other manuals for McCulloch MRT6

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the McCulloch MRT6 and is the answer not in the manual?

McCulloch MRT6 Specifications

Engine Specifications IconEngine Specifications
engine type4-stroke, 1 cylinder
engine displacement3.02
engine speed3200 rpm
Noise and Vibration IconNoise and Vibration
sound level97 dB(A)
operator ear noise level86 dB(A)
vibration level2.5 m/s²
Weight and Dimensions IconWeight and Dimensions
weight92 kg
transport wheel diameter40 cm
working width43 cm
working depth15 cm
blade diameter30 cm
