ASSEMBLY
10 – English

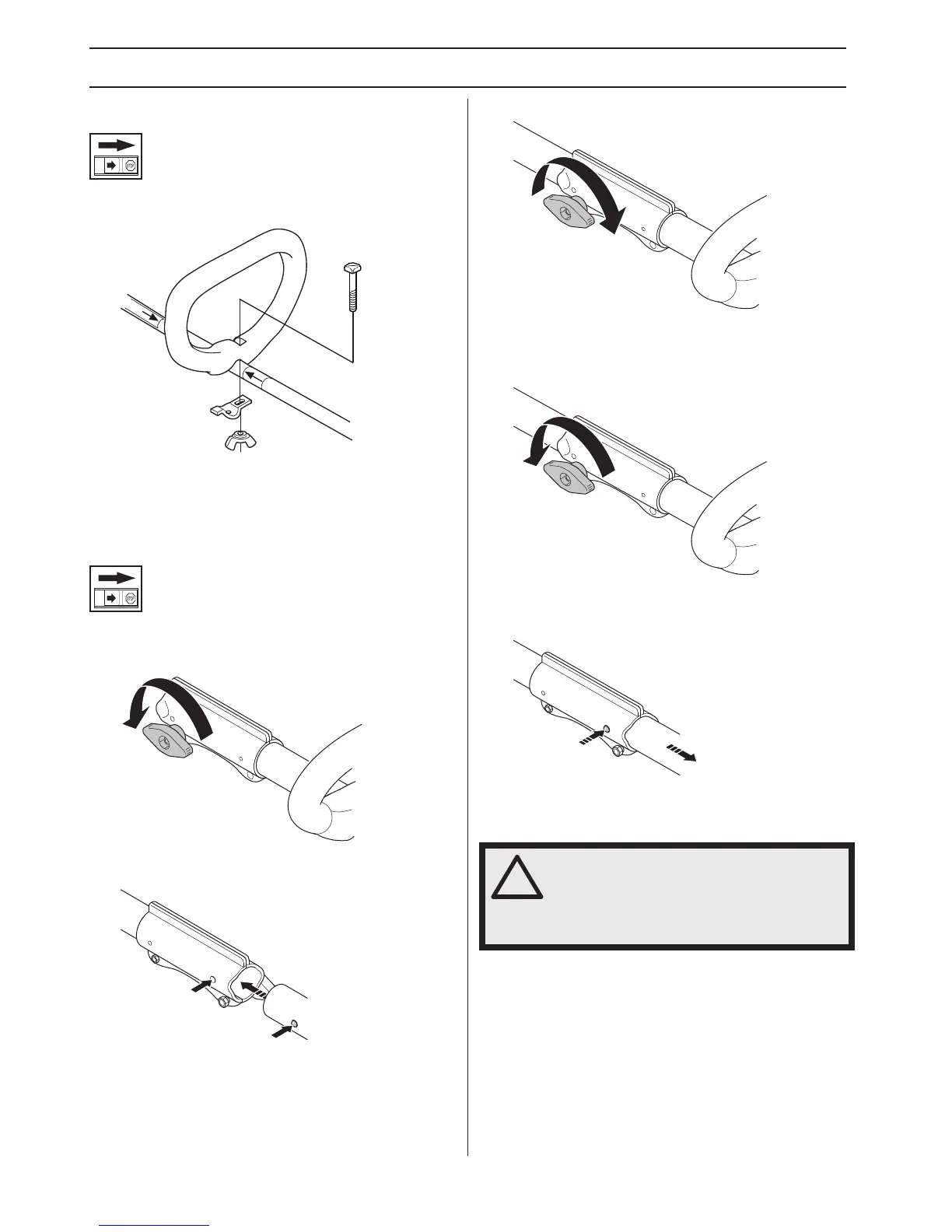

Fitting the loop handle
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Fit the bolt, securing plate and wing nut as shown in
the diagram. Tighten the wing nut.
Assembling and dismantling the
two-piece shaft
Assembly:
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the hole in the
coupling (B).
• Push the attachment into the coupling until the
attachment snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling:
• Loosen the coupling by turning the knob (at least 3
times).
• Push and hold the button (C). While securely holding
the engine end, pull the attachment straight out of the
coupling.
Assembling the cutting
equipment
A
B
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
C
