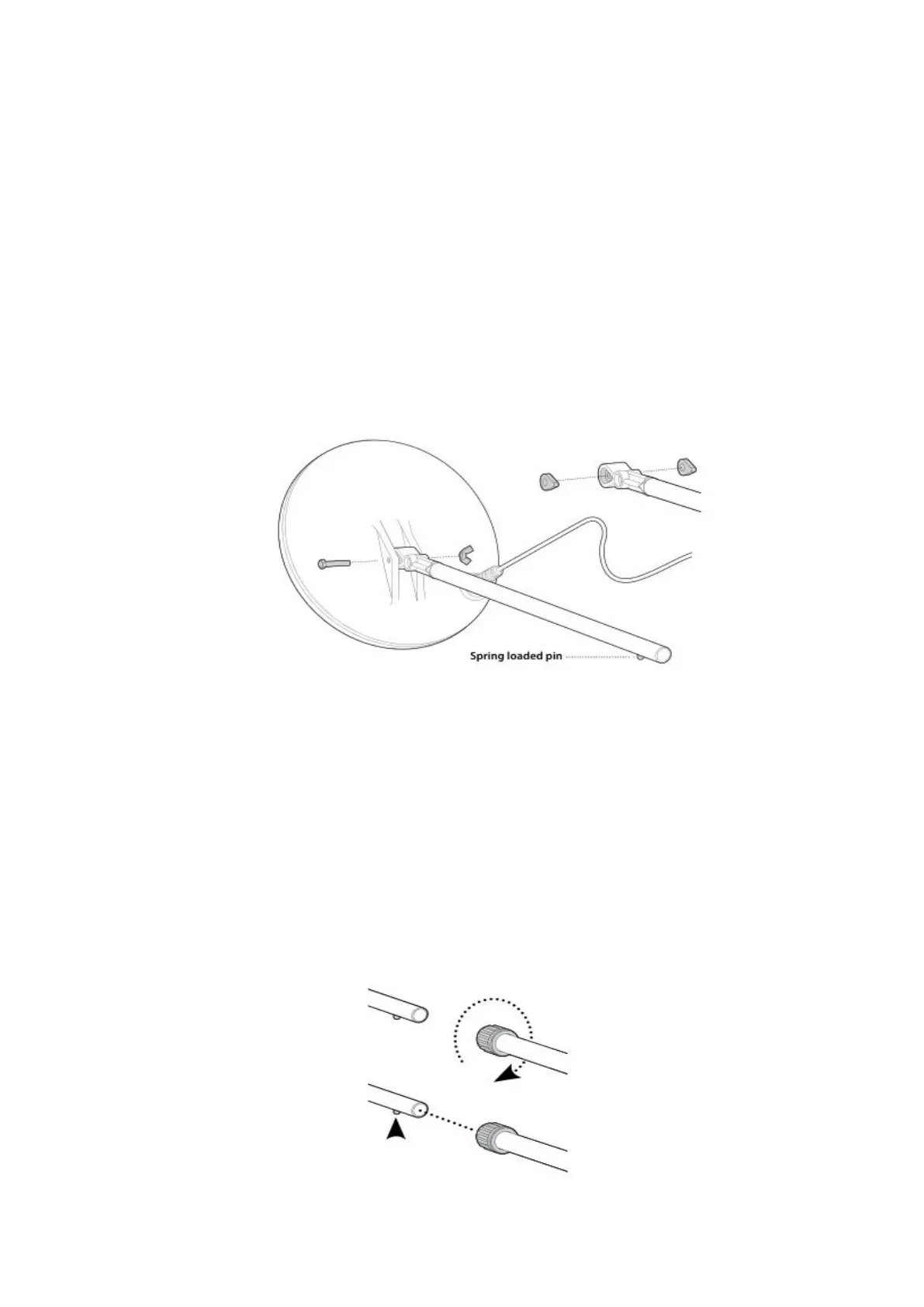

1.Plug the two rubber was hers into the holes on either side of the lower
2.Ensur e that the spr ing loa ded pin of the lower shaft is pointing
downwar ds.Slide the lower shaft into the bra cket on the top of the coil.
Insert the bolt through the lo wer shaft and the bracket on top of th e
coil.Fasten with the nut provide d;being careful not to damage the
thread of the nut by over-tightening .This ma y need to be loosened to
adjust the coil to a comfortable detecting angle.
Step ： B
1.With the twistlock facing awa y from you,rotate the tw istlock of the
upper shaft cloc kwise to ensur e it is loosened,as pictured left.
2.Compres s the spring loaded pin of the lower shaft.S lide the lowe r
shaft into the uppe r shaft until the pin reaches an adjustment hole.The
pin will spring out and clip into place.
3.Rotate th e twistlock counter-clo ckwise to clamp the lower shaft and
