Step ： C

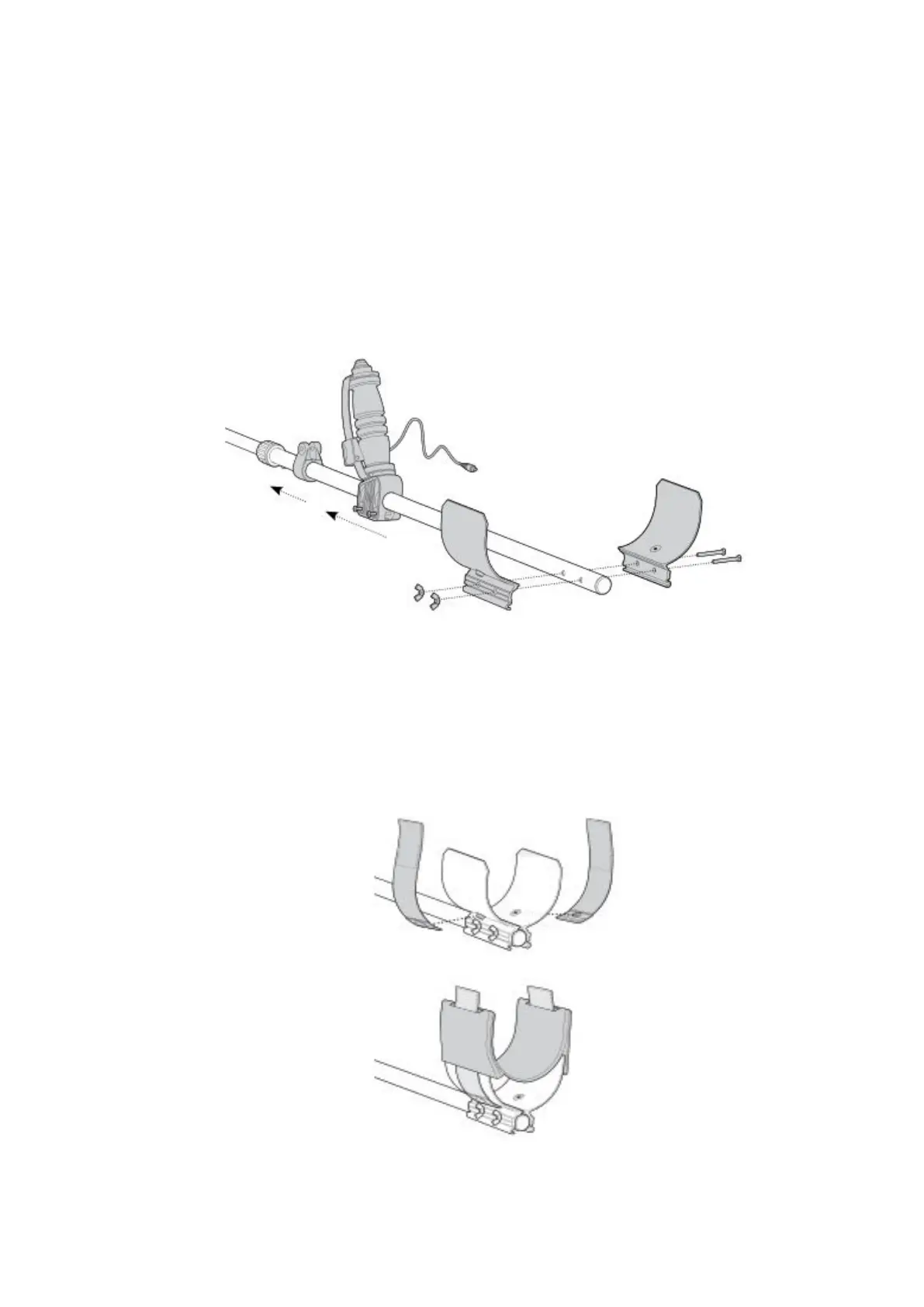

Att achi ng the Ha ndle to the Up per Shaft:
Slide the handle onto the upper shaft so that it angles awa y from you,as
shown below.
Att achi ng the Armrest to the Upper Shaft:
1.Place the two armrest halves on either side of the upper
shaft,aligning the armrest and upper shaft holes.
2.Insert the bolts through the armrest and upper shaft hole s.
3.Loose ly fasten the wing-nuts onto the bolts.
Step: D
Attaching the Armrest Stra ps to the Armrest:
1.Press both strap studs onto the armrest studs.
2.Push the armrest straps through the slots in the armrest cover and
then slide the cove r over the armrest.
