29
FM Antenna

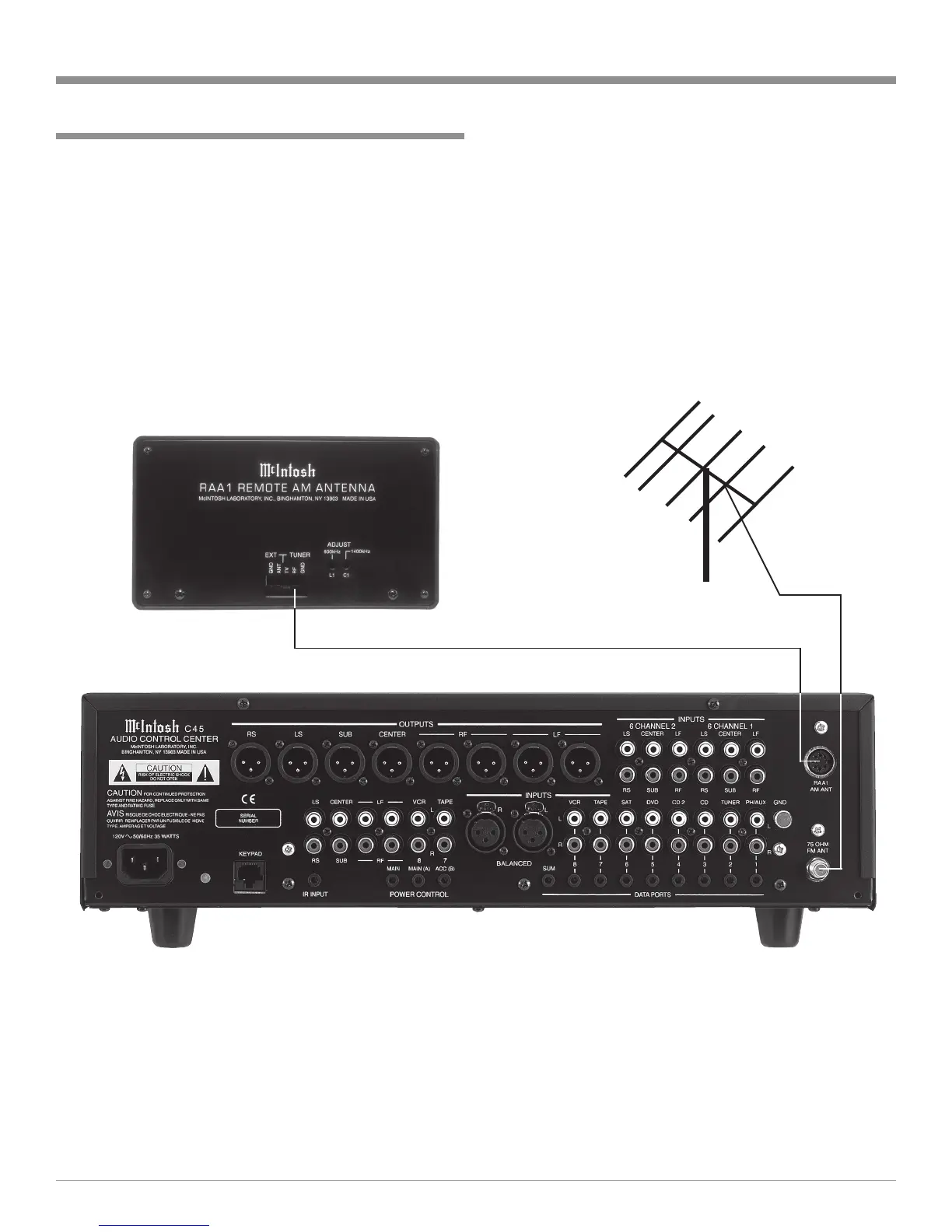

1. Connect the Remote AM antenna by plugging the DIN
connector of the supplied 3 conductor cable into the AM
ANT, DIN socket on the back panel of the C45.
Note: If a longer length cable needs to be used between
the C45 and the RAA1, use a 2 conductor shielded
cable. Refer to page 4 for additional connection
information.
2. Connect a 75 ohm coax cable from an FM antenna or
cable system to the C45, 75 ohm FM ANT connector.
How to Connect Antenna Components
How to Connect Antenna Components
