McIntosh MA2275

3
MA2275

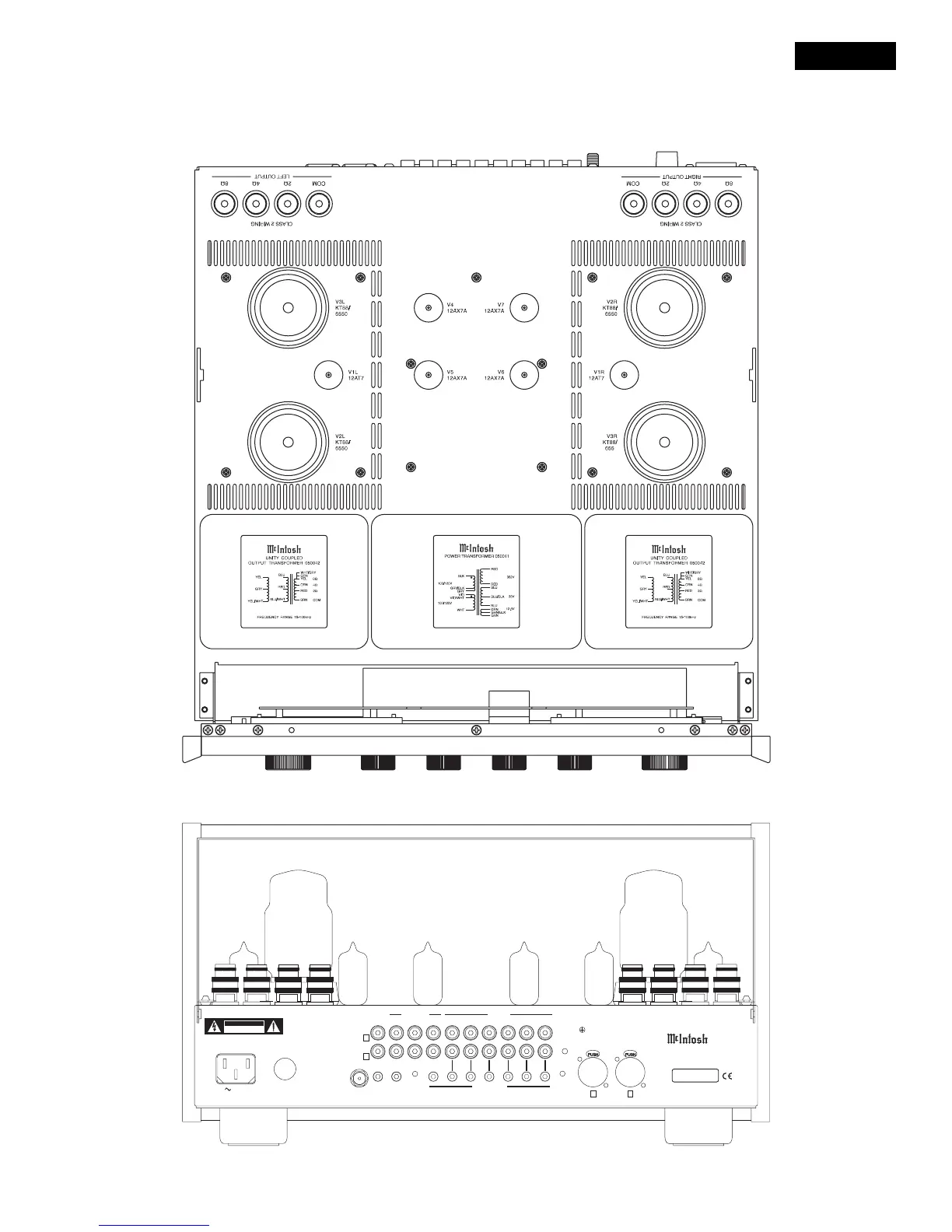

TOP AND REAR VIEWS
PHONO
GND
EXT SENSOR
POWER
AMP IN
T 4AL 250V
SLO-BLO
120V 50/60Hz 3.6A
PREAMP
TAPE
OUTPUTS
POWER CONTROL
SUM
DATA PORTS
MAIN
ACC
SERIAL
NUMBER
MA2275
McINTOSH LABORATORY, INC.,
BINGHAMTON, NY MADE IN USA
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION FOR CONTINUED PROTECTION
AGAINST FIRE HAZARD REPLACE ONLY WITH SAME
TYPE AND RATING FUSE.
CD INPUT
INTEGRATED AMPLIFIER
L
R
L
R
DVD
TUNER
CD 2CD
INPUTS
TAPE
12
AVIS RISQUE DE CHOC ELECTRIQUE - NE PAS
OUVRIR. REMPLACER PAR UN FUSIBLE DE MEME
TYPE, AMPERAGE ET VOLTAGE.
