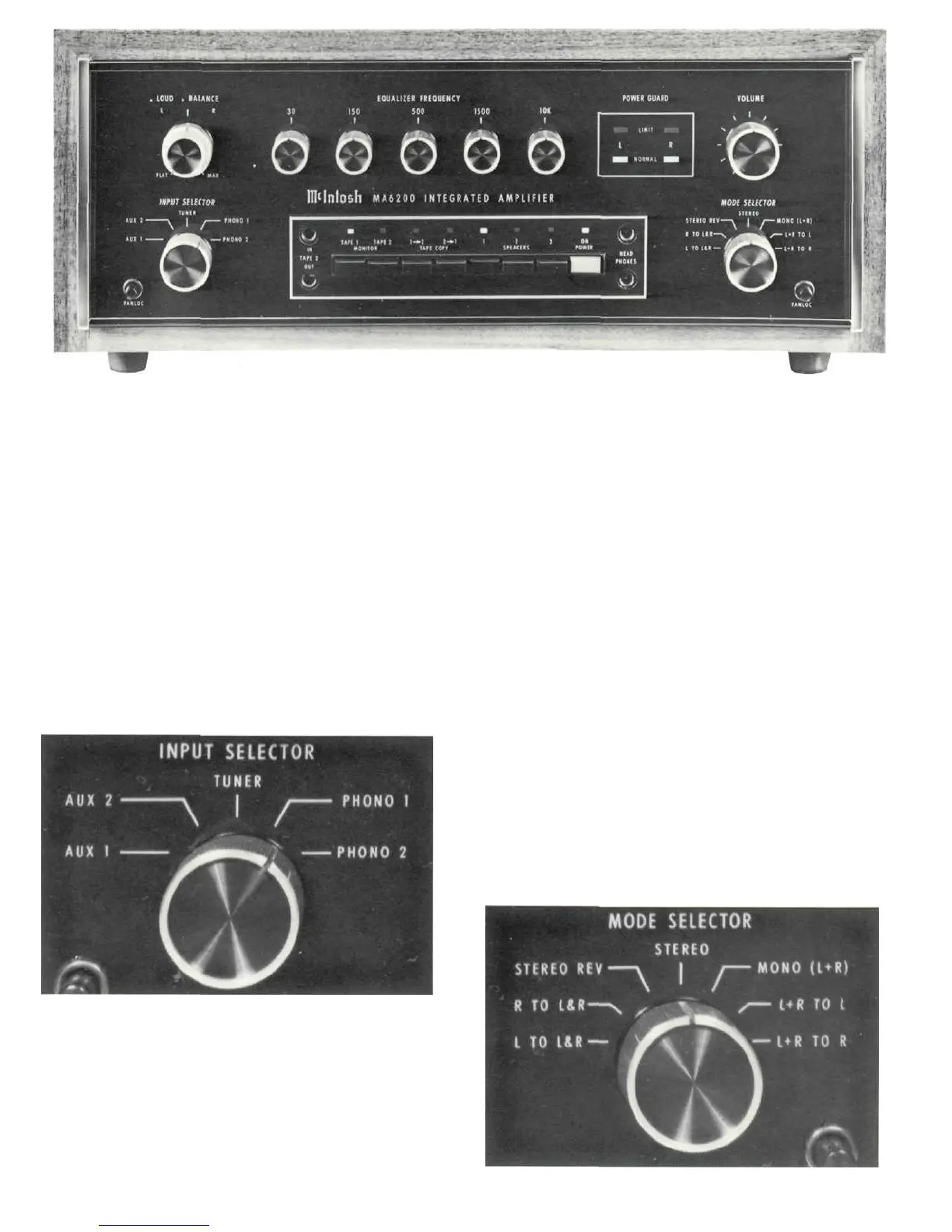

McIntosh MA6200

The Front Panel Controls and
How to use Them
INPUT SELECTOR
The INPUT SELECTOR Is a five position switch
that connects the chosen input program to the pro-
per circuits in the MA 6200.
AUX 1: Connects to the high level input, any out-
put from a high level program source requiring flat
amplification. Such a source could be a television
set, playback from another tape recorder, an addi-
tional tuner, etc.
response has been shaped according to the RIAA
standard to compensate for the characteristics of a
magnetic phono cartridge.
PHONO 2: Same as PHONO 1 but for a second
phono system.
MODE SELECTOR
The MODE SELECTOR facilitates the accurate ad-
justment of a stereo system for some differences
caused by room acoustics, loudspeaker placement
and the other components used in the system.
The MODE SELECTOR switch connects the pro-
gram to the loudspeaker in seven ways:
L to L and R: Connects the left program to both
loudspeakers.
R to L and R: Connects the right program to both
loudspeakers.
AUX 2: Same as AUX 1 but for a second high level
program source.
TUNER: Connects the output from any AM, FM or
MPX FM tuner to the high level input stage. In the
TUNER position the MA 6200 has flat amplification.
PHONO 1: Connects the output of any magnetic
phono cartridge to the low level input stage. The
8
