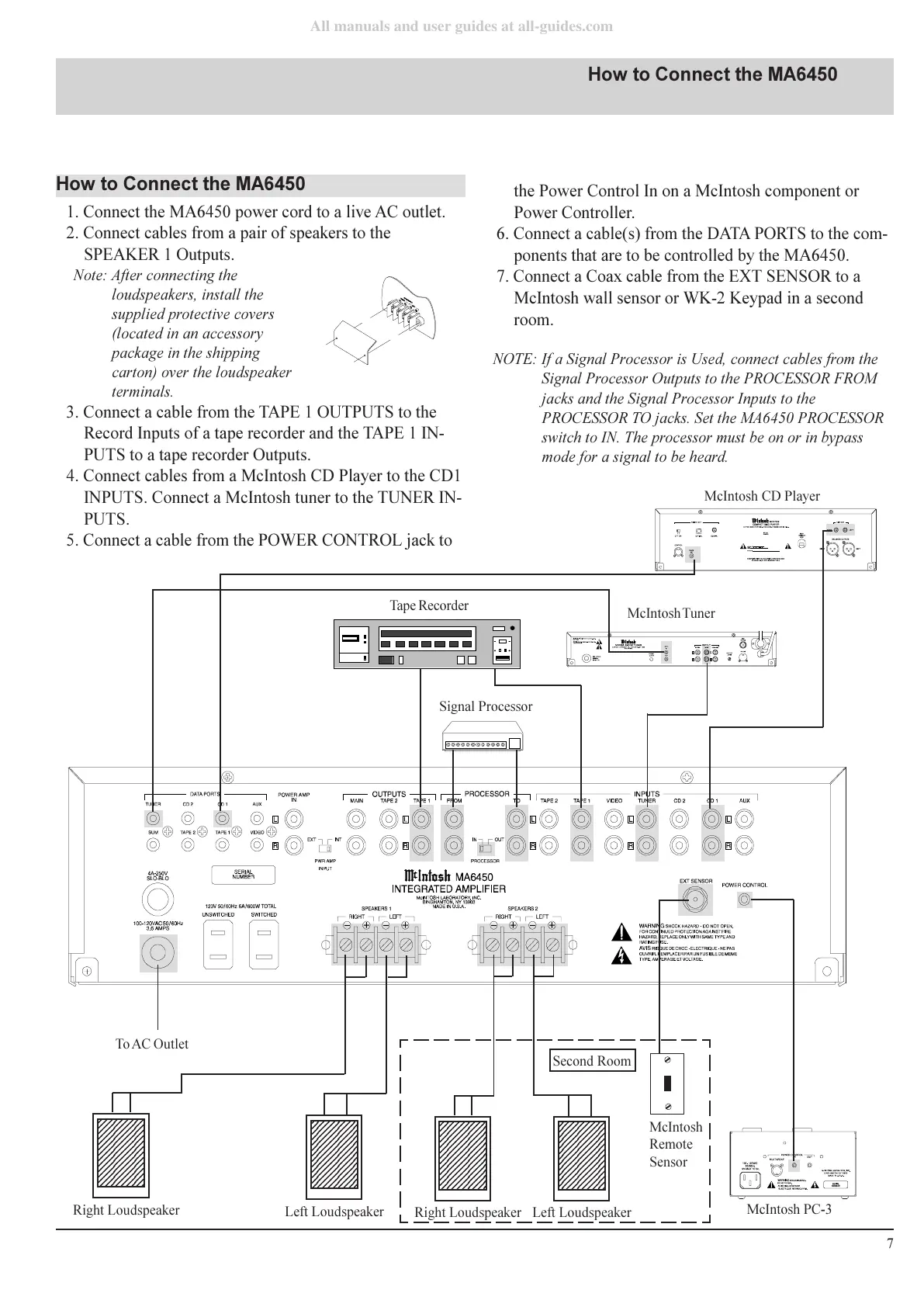

1. Connect the MA6450 power cord to a live AC outlet.
2. Connect cables from a pair of speakers to the
SPEAKER 1 Outputs.
Note: After connecting the
loudspeakers, install the
supplied protective covers
(located in an accessory
package in the shipping
carton) over the loudspeaker
terminals.
3. Connect a cable from the TAPE 1 OUTPUTS to the
Record Inputs of a tape recorder and the TAPE 1 IN-
PUTS to a tape recorder Outputs.
4. Connect cables from a McIntosh CD Player to the CD1
INPUTS. Connect a McIntosh tuner to the TUNER IN-
PUTS.
5. Connect a cable from the POWER CONTROL jack to
the Power Control In on a McIntosh component or
Power Controller.
6. Connect a cable(s) from the DATA PORTS to the com-
ponents that are to be controlled by the MA6450.
7. Connect a Coax cable from the EXT SENSOR to a
McIntosh wall sensor or WK-2 Keypad in a second
room.
NOTE: If a Signal Processor is Used, connect cables from the
Signal Processor Outputs to the PROCESSOR FROM
jacks and the Signal Processor Inputs to the
PROCESSOR TO jacks. Set the MA6450 PROCESSOR
switch to IN. The processor must be on or in bypass
mode for a signal to be heard.
