8
McIntosh MVS-3
A/V Selector

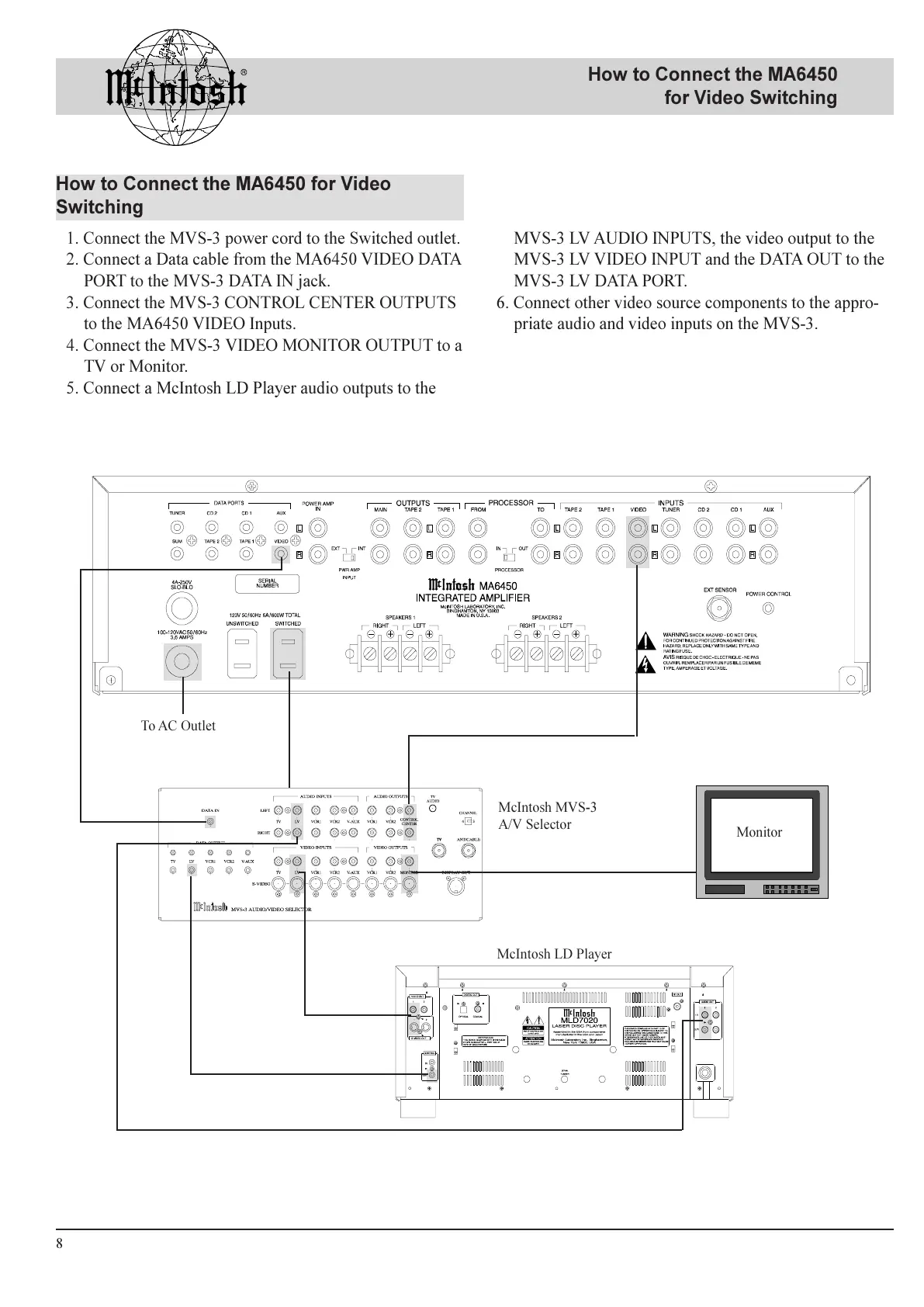

How to Connect the MA6450
for Video Switching
How to Connect the MA6450 for Video
Switching
Monitor
McIntosh LD Player
To AC Outlet
1. Connect the MVS-3 power cord to the Switched outlet.
2. Connect a Data cable from the MA6450 VIDEO DATA
PORT to the MVS-3 DATA IN jack.
3. Connect the MVS-3 CONTROL CENTER OUTPUTS
to the MA6450 VIDEO Inputs.
4. Connect the MVS-3 VIDEO MONITOR OUTPUT to a
TV or Monitor.
5. Connect a McIntosh LD Player audio outputs to the
MVS-3 LV AUDIO INPUTS, the video output to the
MVS-3 LV VIDEO INPUT and the DATA OUT to the
MVS-3 LV DATA PORT.
6. Connect other video source components to the appro-
priate audio and video inputs on the MVS-3.
