PERFORMANCE SPECIFICATIONS
2
Amplier Specications
Power Output
300 watts is the minimum sine wave con-
tinuous average power output per channel,
both channels operating
Output Load Impedance
2, 4 or 8 ohms
Rated Power Band
20Hz to 20,000Hz
Total Harmonic Distortion
0.005% maximum with both channels op-
erating from 250 milliwatts to rated power,
20Hz to 20,000Hz
Dynamic Headroom
1.8dB
Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 100,000Hz
Preamplier Output 1 and 2 (for rated input)
1.7V unbalanced Output 1 (8V Maximun)
3.4V balanced Output 2 (16V Maximun)
Sensitivity (for rated output)
High Level, 300mV unbalanced, 600mV
balanced
Phono MM, 3.0mV
Phono MC, 0.30mV
Power Amp In, 1.7V
Signal To Noise Ratio (A-Weighted)
High Level, 98dB below rated output
Phono MM, 84dB below 5mV input
Phono MC, 82dB below 0.5mV input
Power Amplier, 114dB below rated output
Intermodulation Distortion
0.005% maximum, if the instantaneous peak
power is 600 watts or less per channel with
both channels operating for any combina-
tion of frequencies from 20Hz to 20,000Hz
Wide Band Damping Factor
Greater than 40
Input Impedance
High Level Unbalanced, 20K ohms
High Level Balanced, 10K ohms
Phono MM, 47K ohms; 50 to 400pF in
50pF steps
Phono MC, 50, 100, 200, 400 or 1,000
ohms; 100pF
Power Amp In, 10K ohms
Maximum Input Signal
High Level, 8V unbalanced, 16V balanced
Phono MM, 80mV
Phono MC, 8mV
Power Amplier In, 16V
Preamplier Output Impedance
220 ohms
Headphone Impedance
20 to 600 ohms
Power Guard
Less than 2% THD with up to 16dB over-
drive at 1,000Hz

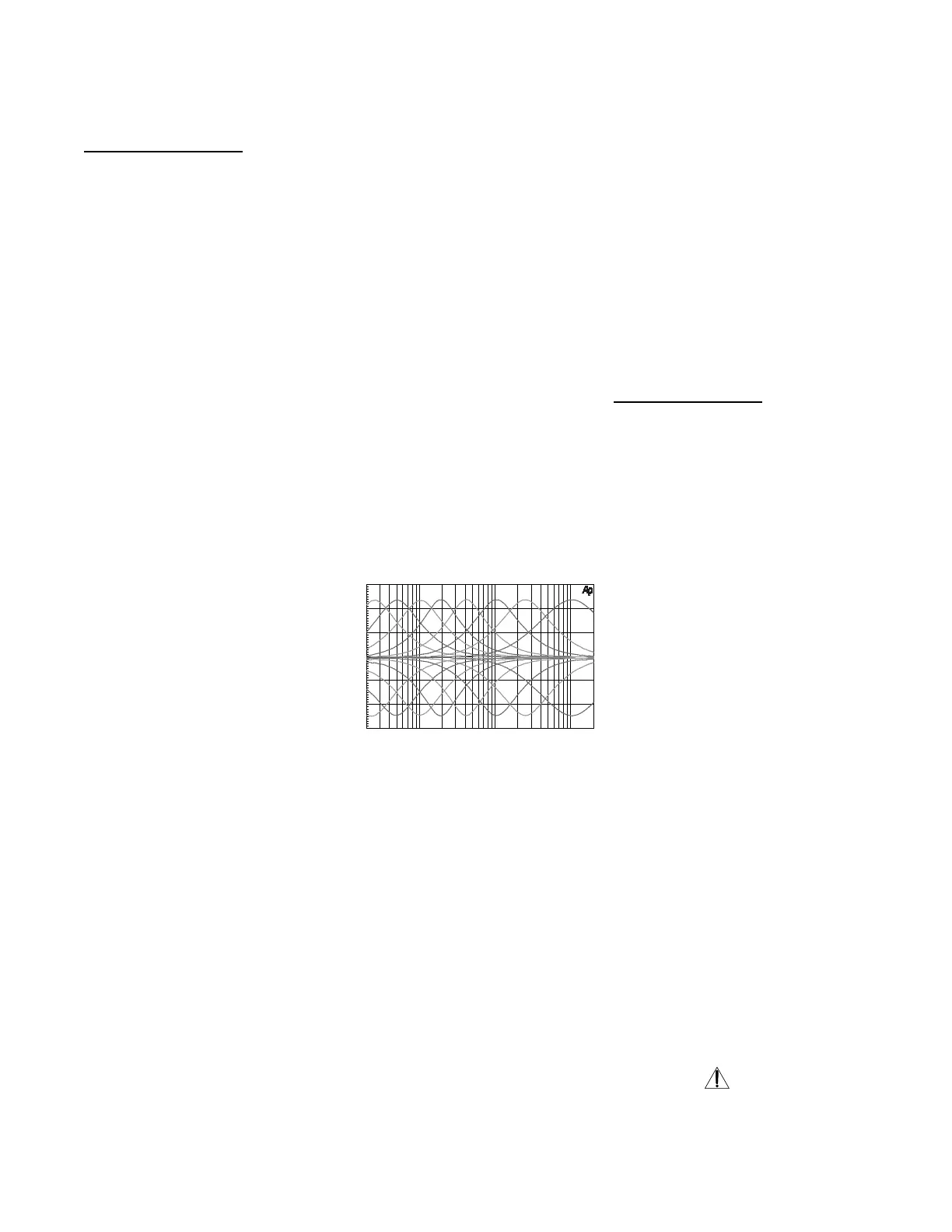

Graph of the Equalizer Curves
Voltage Gain
High Level to Rec Output: 0dB
High Level to Output 1: 15dB
High Level to Output 2: 21dB
Phono MM to Rec Output: 40dB
Phono MC to Rec Output: 60dB
Power Amplier: 29dB (8 ohm Output
Terminals)
Digital Input Sample Rates
Optical: 16Bit, 24Bit - 32kHz to 96kHz
Coaxial: 16Bit, 24Bit - 32kHz to 96kHz
USB: 16Bit, 24Bit, 32Bit - 32kHz to 192kHz
Power Control and Trigger Output
12VDC, 25mA
General Specications
Power Requirements
Field AC Voltage conversion of the MA8000
is not possible. The MA8000 is factory con-
gured for one of the following AC Voltages:
100V ~ 50/60Hz at 8 Amps
110V ~ 50/60Hz at 6.6 Amps
120V ~ 50/60Hz at 6.6 Amps
220V ~ 50/60Hz at 3.6 Amps
230V ~ 50/60Hz at 3.3 Amps
240V ~ 50/60Hz at 3.3 Amps
Standby: Less than 0.25 watt
Note: Refer to the rear panel of the MA8000
for the correct voltage.
Overall Dimensions
Width is 17-1/2 inches (44.45cm)
Height is 9-7/16 inches (24.00cm) including
feet
Depth is 22 inches (55.88cm) including the
Front Panel, Knobs and Cables
Weight
100 pounds (45.4 kg) net, 133 pounds (60.3
kg) in shipping carton
Shipping Carton Dimensions
Width is 29-1/2 inches (74.93cm)
Depth is 29 inches (73.66cm)
Height is 17 inches (43.18cm)
20 50 100 200 500 1k 2k 5k 10k 20k
FREQUENCY IN HERTZ
0
- 5
A
M
P
L
I
T
U
D
E
I
N
D
E
C
I
B
E
L
S
-10
-15
+ 5
+10
+15
NOTES
1. Unless otherwise noted, all voltages indicated on the
schematics are measured under the following conditions:
a. AC input at rated voltage marked on rear panel.
b. All voltages are +/-10% with respect to ground. A
high impedance (10 megaohm) voltmeter must be used.
c. Impedance switch set to “8”.
2. Unless otherwise specied:
a. Resistor values are in ohms.
b. Capacitor values are microfarads (uF).
c. Inductor values are in microhenries (uH)
3. On PC board drawings, Square pad indicates:
a. Polarized Capacitors - Positive
b. Diodes - Cathode
c. Others - Pin 1
4. WARNING
Parts marked with the symbol have critical
characteristics. Use only replacement parts recom-
mended by the manufacturer.
5. Remote control HR085.
