The MAC7200 can be part of a Multichannel Sound
System for BLU-RAY-Audio, DVD-Audio and Home
Theater Movies. The Right and Left Front Channels
from an Audio/Video Control Center can “Passthru”
the MAC7200. In the following example the UNBAL-
ANCED 5 Input will become the “Passthru” input:
1. Connect Audio Cables from the A/V Processor
FL (Front Left) and FR (Front Right) Channel
Outputs to the MAC7200 UNBALANCED Num-
ber 5 INPUTS Left and Right Jacks.
2. Connect a Control Cable from the A/V Proces-
sor TRIGger 2 Output to the MAC7200 POWER
CONTROL PASSTHRU INPUT Jack.
Note: Refer to Setup “Passthru” on page 23 to assign
the Number 5 INPUT as the “Passthru” Input.
3. Proceed to “Connecting Loudspeaker” on
Page 11.

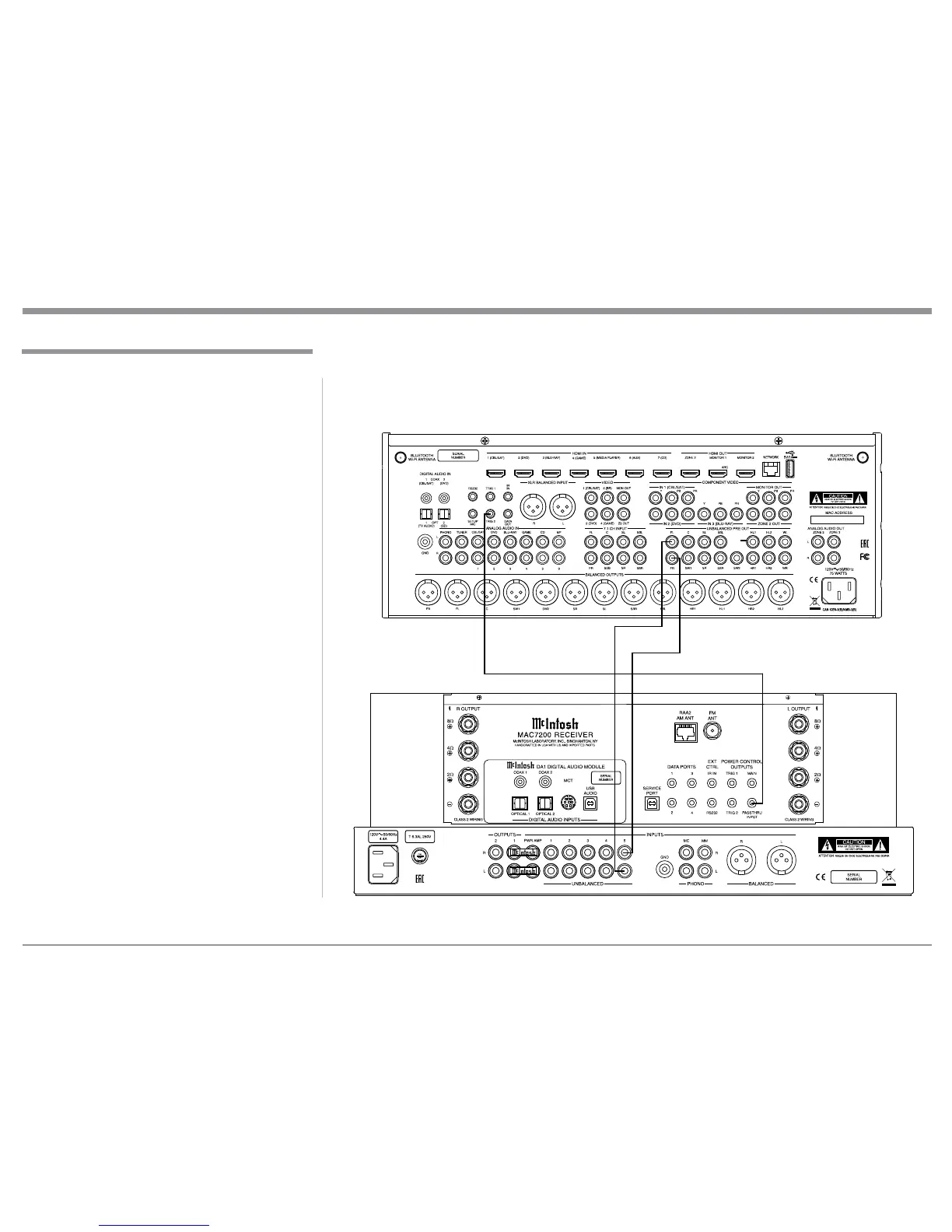

Passthru Connections
Passthru Connections
A/V Processor
