McIntosh MCD1000 Service Manual

19
20
Part
No.
Description
Ref
No.

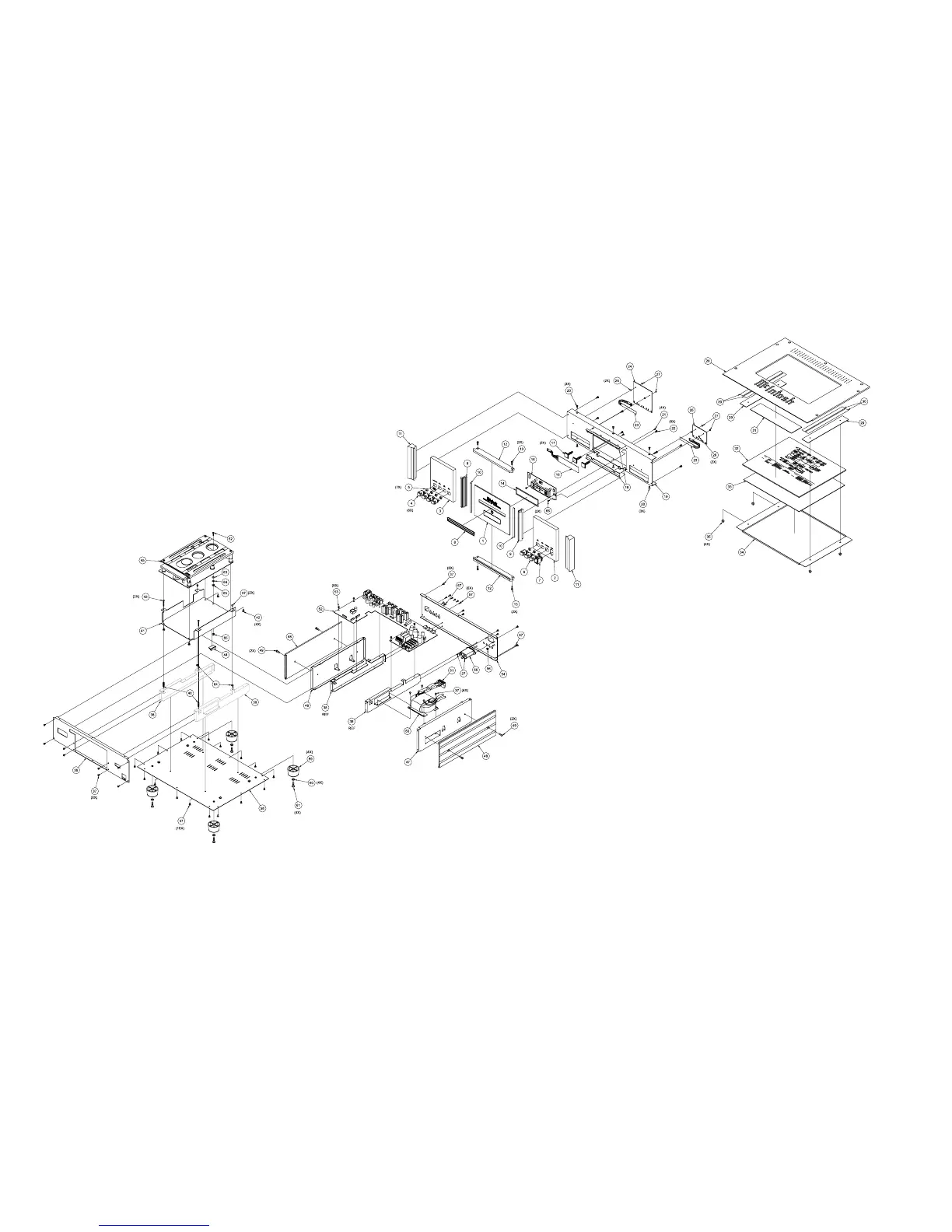

EXPLODED VIEW and PARTS LIST
1 016503 GLASS CENTER
2 016504 GLASS RIGHT
3 016502 GLASS LEFT
4 017517 PUSHBUTTON ASSY BLK
5 078033 O-RING
6 017531 PUSHBUTTON ASSY RED
7 148073 SWITCH LDPDT ROCKER
8 017949 CD BEZEL
9 018722 EXTRUSION CENTER 5”
10 094042 TAPE VINYL FOAM 1/16 X 1/4
11 018721 END CAP 5”
12 018715 TOP/BOTTOM END CAP
13 100342 SCREW 6-32 X 3/8 FILLISTER HD
14 092419 FILTER DISPLAY
15 050018 ASSY DISPLAY PCB
16 017901 LOGO PUSHBUTTON BACKLIGHT
17 017947 SUPPORT CIRCUIT BOARD
18 005360 GAP PLATE
19 005373 PLATE BACK
20 101232 SCREW 6-32 X ¼ PHIL FLAT
21 101074 SCREW TAPPING 4-40 X 1/4 PH PN
22 100276 SCR MCH SEMS 6-32 X 5/16 PH PN
23 017907 TITLE/PUSHBUTTON BACKLIGHT
24 050019 ASSY KEYBOARD LEFT
25 050020 ASSY KEYBOARD RIGHT
26 104179 NYLON WASHER .070
27 102001 NUT KEP 4-40 CADMIUM PLATE
28 018723 TOP PANEL
29 005364 TOP STRIP
30 094192 TAPE DOUBLE SIDED 1/2”
31 005396 GOLD STRIP
32 016505 GLASS TOP COVER
33 094442 FOAM PAD
34 005365 TRAY
35 102064 NUT CAP 6-32
36 005374 SUBPANEL
37 101196 SCR TAP SEMS 6-32 X 1/4 PH PN
38 005392 TRAY SUPPORT LEFT
39 005375 TRAY SUPPORT RIGHT
40 019058 SPRING
41 005377 TRAY TRANSPORT
42 100358 SCREW MACH M4 X 0.7 X 8mm
43 100300 SCR MACH SEMS 6-32 X 1 PH PN
44 017687 CLAMP CABLE
45 320171 CD MECHANISM
46 005394 SIDE PANEL LEFT
47 005393 SIDE PANEL RIGHT
48 018724 SIDE PANEL
49 100356 SCREW 10-32 X 1/2 LOW SHCS
50 159343 TRANSFORMER R-CORE POWER
51 117800 MTA CONNECTOR 8 PIN .156
52 050017 ASSY MAIN PCB
53 101222 SCREW TT SEMS 6-32 X 1/4 PH PN
54 005372 REAR PANEL
55 117755 RECEP INPUT & LINE FILTER
56 102020 NUT MACH 6-32 SELF-LOCK
57 101197 SCR HI/LO 4-24 X 3/8 PH RD BLK
58 005363 BOTTOM COVER
59 017937 FOOT
60 104083 WASHER #10 PLATED 104062
61 100159 SCR MCH 10-32 X 3/4 PH PN BLK
62 100304 SCR MCH SEMS 6-32 X 1/2 PH PN
63 104009 WASH FIBRE FLAT 6 X 3/8 X 3/64
64 104005 WASH FLAT STEEL 6 X 3/8 X .032
65 102003 NUT MACH 6-32 W/LOCK
66 101057 SCREW 4-40 X 1/4 PH PN
67 101109 SCREW 6-32 X 5/16 PH PN
