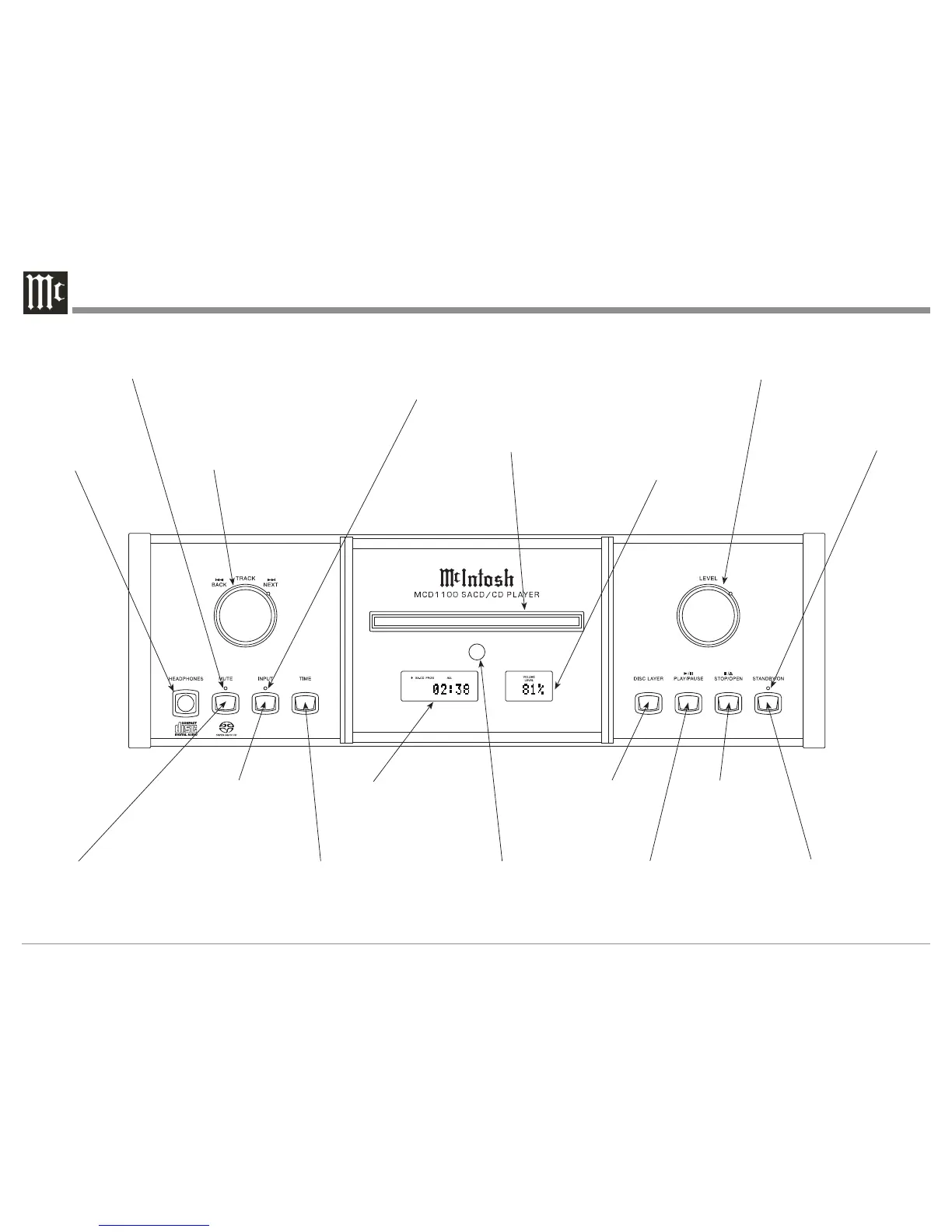

Front Panel Displays, Controls, Push-buttons and Jack
Standby Power
On Indicator
IR Sensor receives
commands from a
Remote Control
Disc Tray opens to
load and unload a disc
Front Panel Information
Display indicates various
operation functions and
times
STANDBY/ON Push-button switches
WKH0&'21RU2))6WDQGE\
Stops disc playback,
Opens and Closes
the disc tray for
loading or unloading
discs
Starts disc playback and
pauses disc playback
Allows moving
backward or forward
one track at a time
Selects various play-
back times for indica-
tion on the Front Panel
Information Display
Selects the SACD
or CD Audio
Tracks from a
hybrid disc
Adjusts the listening
volume level
Connection for low
impedance dynamic
headphones, for private
listening
Push to mute the audio at
rear panel Audio Output
Connectors (Headphones
DUHQRWDIIHFWHG
Audio Output Mute
On Indicator
Front Panel Information
Display indicates volume
levels and external Digi-
tal Input Selected
Selects either disc playback
or selects the external input
(Coaxial, BNC, Optical or
86%'LJLWDO,QSXWIRUGH-
coding of the Digital Signal
Digital Signal Detector
Indicator LED indicates
when the digital signal is
not present
1
3&03XOVH&RGH0RGXODWLRQ'LJLWDO6LJQDOW\SHXVHGIRU&''LVFVand '6''LUHFW6WUHDP'LJLWDO'LJLWDO6LJQDOW\SHXVHGIRU6$&''LVFV
