McIntosh MCD1100 User Manual

8
POWER CONTROL IN receives
turn-on signals from a McIntosh
component and POWER CONTROL
OUT sends turn-on signals on to
another McIntosh Component
Connect the MCD1100 power cord to
a live AC outlet. Refer to information
on the back panel of your MCD1100
to determine the correct voltage for
your unit
IR INput for connecting
an IR Receiver
DATA IN receives control data
from a McIntosh Control Center
COAXIAL, OPTICAL, XLR
and BNC DIGITAL AUDIO
OUTPUT send signals to a
Control Center with a D/A
Converter or a decoder
COAXIAL, OPTICAL, XLR and BNC DIGITAL
AUDIO INPUT receives a Digital Signal
1
from an
external source component such as a Disc Player
and uses the MCD1100 internal D/A Converter to
decode the signal into analog audio
BALANCED VARIABLE
level AUDIO OUTPUT
supply analog audio signals
to connect to Balanced In-
puts of other components
BALANCED FIXED
level AUDIO OUTPUT
supply analog audio
signals to Balanced
Inputs of other compo-
nents
UNBALANCED VARIABLE
level AUDIO OUTPUT supply
analog audio signals to Unbal-
anced Inputs of other components
UNBALANCED FIXED
level AUDIO OUTPUT
supply analog audio signals
to Unbalanced Inputs of
other components
1
- For additional information Refer to page 4 “General Information”, note 4.

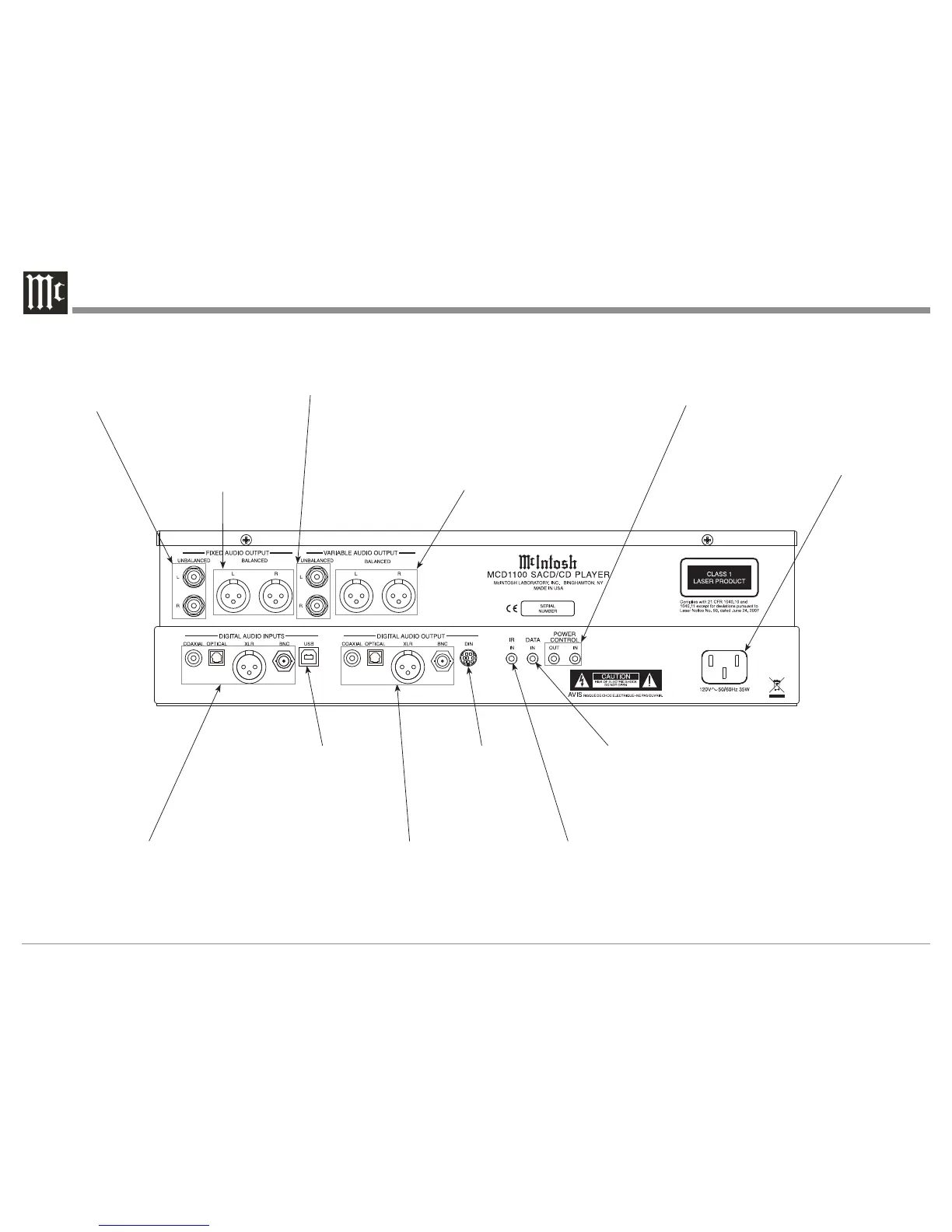

Rear Panel Connections
DIN DIGITAL
AUDIO OUT-
PUT reserved
for future use
USB DIGITAL
AUDIO INPUT
and control signal
for connection to a
computer

McIntosh MCD1100 Specifications

General

Brand	McIntosh
Model	MCD1100
Category	CD Player
Language	English
