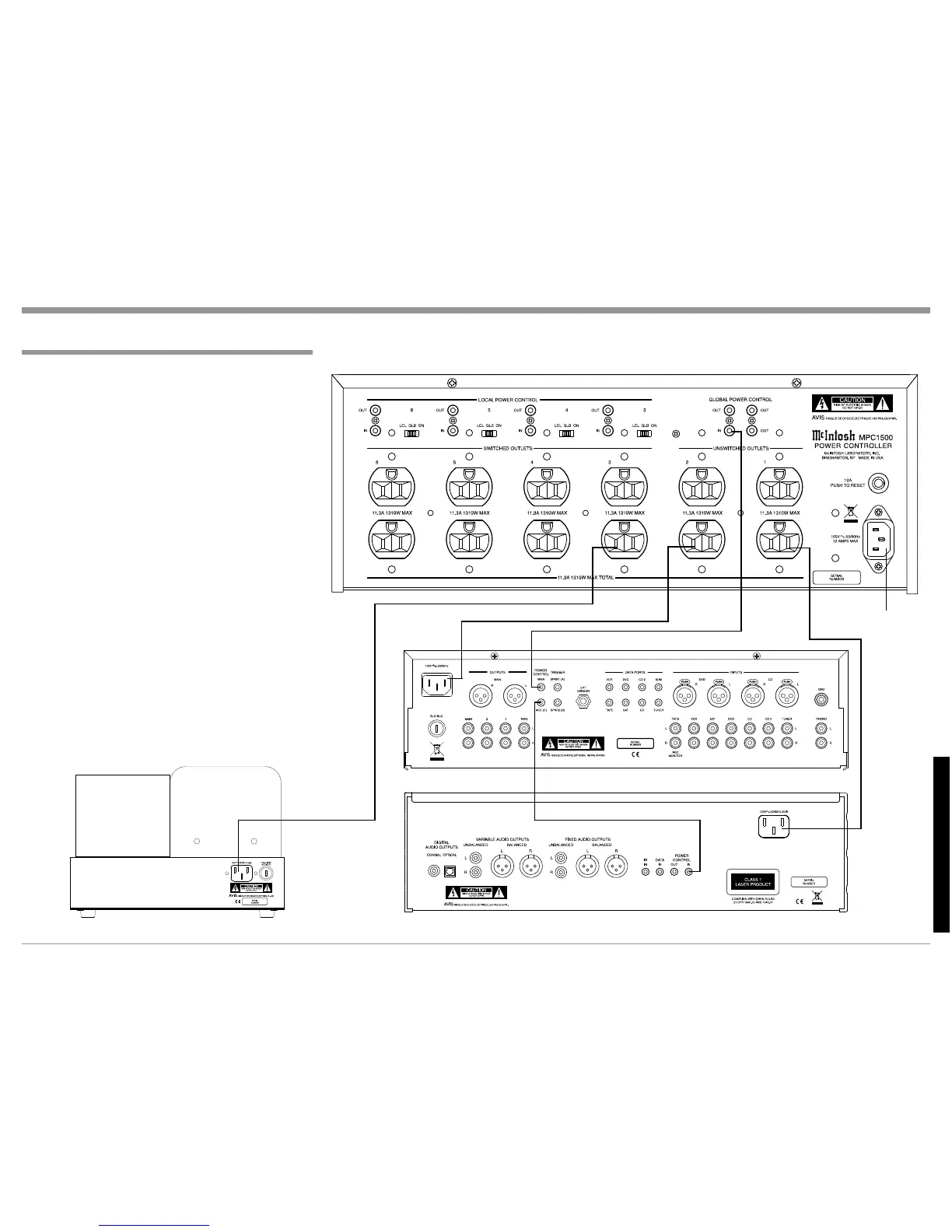

How to Connect in a Two Channel System
How to Connect in a Two Channel System
The MPC1500 has the ability to automatically switch
AC Power On/Off to Components connected to the
SWITCHED AC OUTLETS via the Power Control
connection coming from the Preamplifier. Source
Components switch On/Off via the Power Control
connection from the Preamplifier. For additional
information refer to “General Information” on page 4
and “Connector and Cable Information” on page 5.
1. Connect a Control Cable from the MPC1500
GLOBAL POWER CONTROL IN Jack to the
Power Control Main Out Jack on the Preamplifier.
2. Connect the AC Power Cord from the Power Am-
plifier to MPC1500 SWITCHED AC OUTLET 3.
3. Connect a Control Cable from the Preamplifier Acc
Power Control Out Jack to the Power Control In
jack on the Disc Player.
4. Connect the AC Power Cords from the Preamplifier
and Disc Player to the UNSWITCHED AC OUT-
LETS 1 and 2.
5. Connect any remaining Components in a similar
manner.
6. Using the supplied AC Cord, connect the MPC1500
directly to an AC Wall Outlet.
Power Amplifier
Disc Player
75 WATTS
T630maAL 250V
Preamplifier
To AC Outlet
To Next Page
