McLean T50 - Mounting Instructions; Components List

4 10-1008-214 rev 1

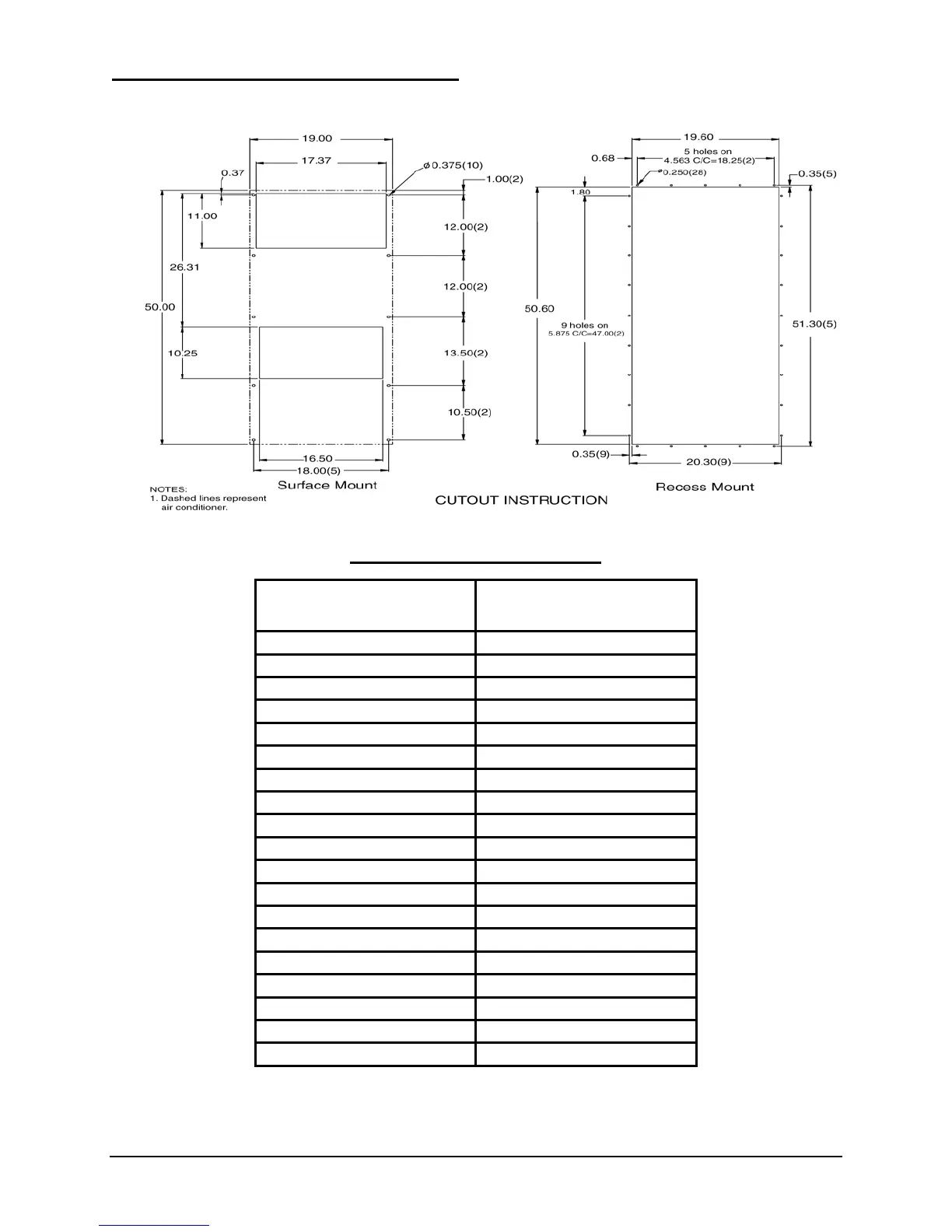

T50 Mounting Cutout Dimensions
T50 Series Components List
Part Description Part Number
Blower Motor, Condenser 10-1020-32
Capacitor, Evap Impeller 52-6084-02
Capacitor, Compressor, Run 52-6032-01
Capacitor, Condr Blower Motor 52-6084-00
Coil, Condenser 50-6006-01
Coil, Evaporator 50-6010-01
Compressor 10-1026-107
Compressor Start Capacitor 10-1032-08
Compressor Start Relay 10-1042-17
Filter, Air, Reusable 10-1000-83
Filter/Dryer 52-6028-06
Freeze Stat 10-1061-05
Head Pressure Control Switch 52-6104-26
Impeller, Evaporator 10-1091-88
Service Cord 52-6035-141
Terminal Block 10-1003-31
Thermal Expansion Valve 10-1040-33
Thermostat, SPDT, 60-101F 10-1061-03
Thermostat, SPST, 55-100F 10-1061-02
