NOMENCLATURE AND FUNCTIONS

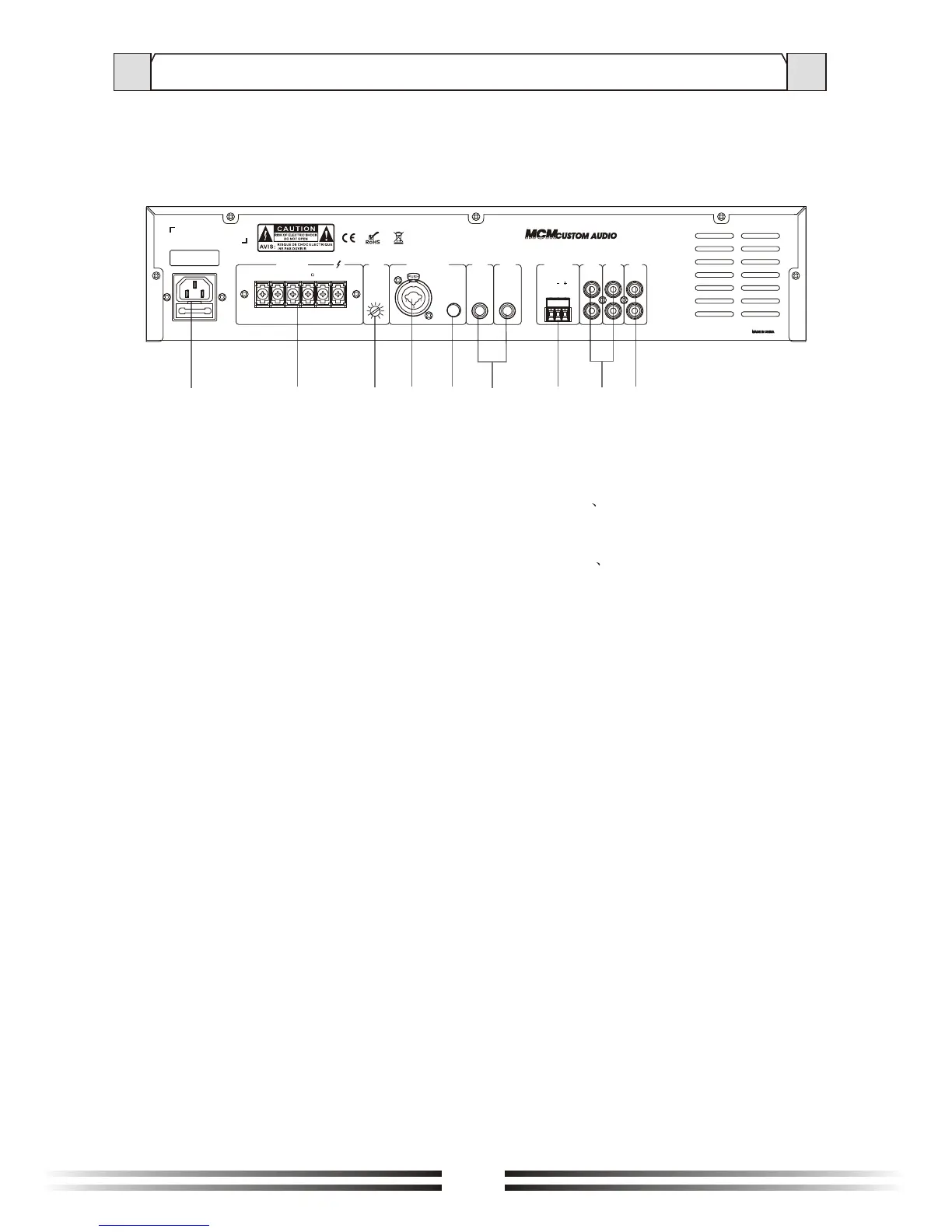

2.2 60W/120W REAR PANEL
13.~ 120V 60Hz POWER INPUT
14. SPEAKER TERMINALS
Connectors for 4-16 ohms or 70V and 100V
speaker
15. Mute adjust
Adjust the mute degree from 0-
20dB when MIC1 input override all
the other inputs.
16. MIC input with phantom power
MIC1 input compatible of XLR and
6.3 MIC
17. Phantom power switch
18. (MIC 2 MIC 3) MIC input
MIC2-3 input of 6.3 MIC
19. TEL INPUT
20. (AUX 1 AUX 2) AUX input
AUX 2-3 for extra equipment input
21. Line output
Connect to other audio processing
equipments
16
14
13
15
16
18
19
20
21
17
~120V 60Hz 100W
T3.15AL 250V
MIC2
MIC3
MUTE
G
TEL INPUT AUX2AUX1
LINE
OUT
MIC 1
XLR/6.30 INPUT
BAL/UNBAL
PHANTOM
OUTPUTS
COM
4-16 70V 100V
COM COM
