NOMENCLATURE AND FUNCTIONS

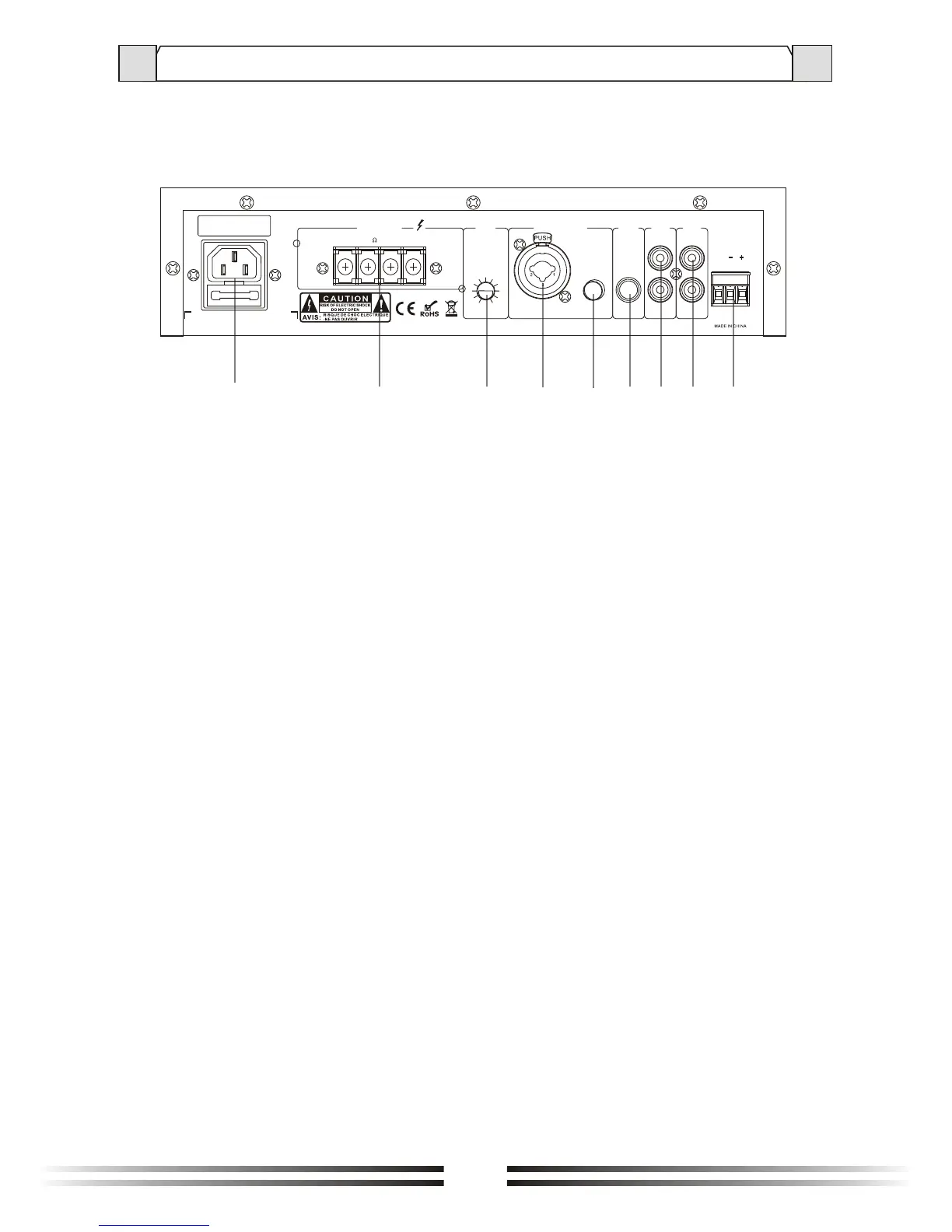

2.2 20W/40W REAR PANEL
12. ~120V 60Hz AC POWER INPUT
13.SPEAKER TERMINALS
Connectors for 4-16 ohms or 70V and 100V
speaker
14.Mute adjust
Adjust the mute degree from 0-30dB
when MIC1 input override all
the other inputs( except TEL).
15.MIC input with phantom power
MIC1 input compatible of XLR and
stereo connector
16. MIC 1 PHANTOM +48V Power switch
17.MIC 2 MIC input
MIC2 input of Microphone
18.AUX input
AUX for extra equipment input
19.Line output
Connect to other audio processing
equipments
20.TEL INPUT
7
12 13
14
15
16
18 19
20
17
LINE
OUT
AUXMIC 2
~120V 60Hz 40W
T2AL 250V
MUTE
MIC 1
XLR/6.30 INPUT
BAL/UNBAL
+48V
PHANTOM
OUTPUTS
COM
4-16
70V 100V
TEL INPUT
G
