mcmurdo SMARTFIND E5 - Bulkhead Bracket Description

Commercial in Confidence

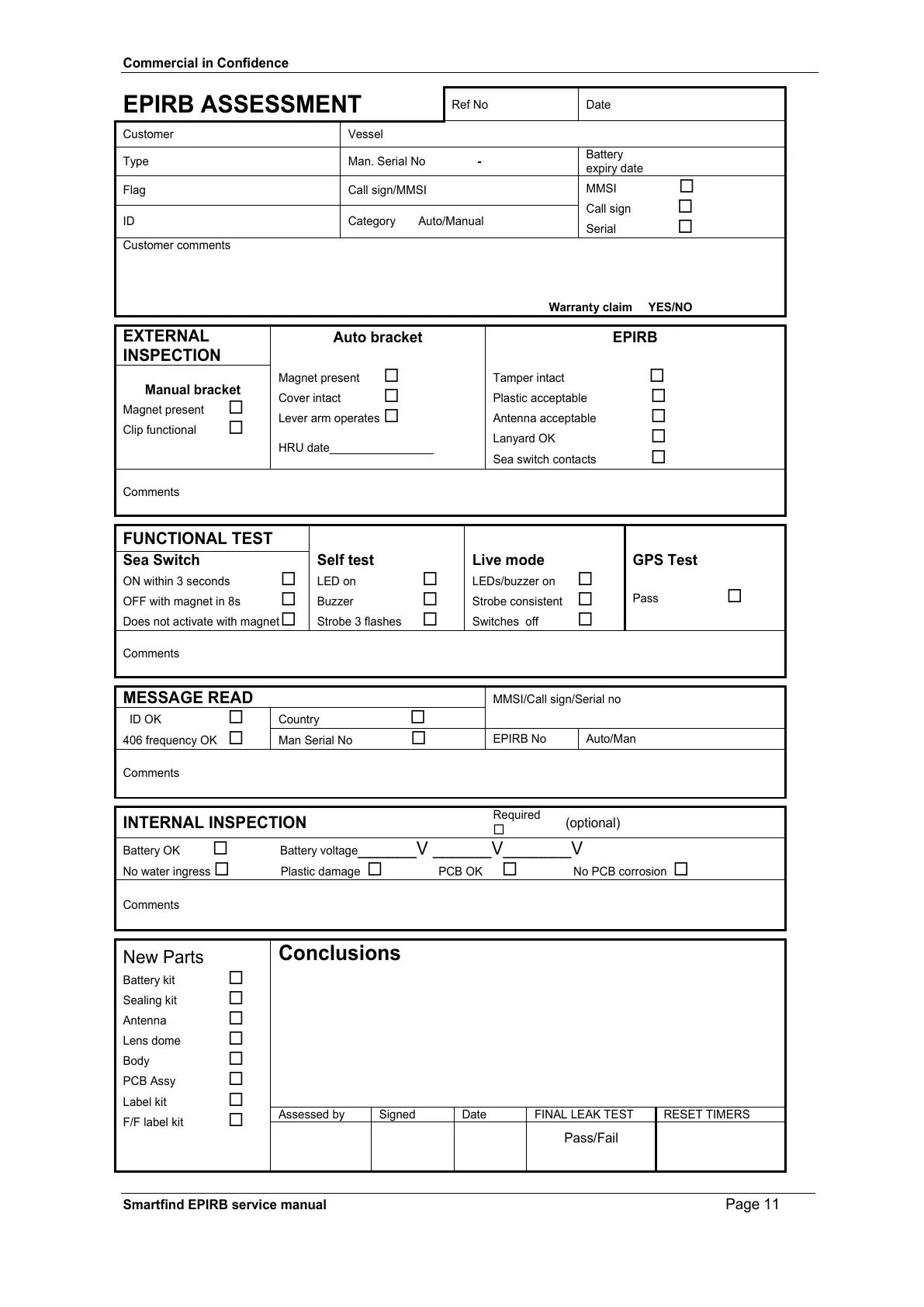

Smartfind EPIRB service manual Page 11
EPIRB ASSESSMENT
Ref No Date
Customer Vessel
Type
Man. Serial No -
Battery
expiry date
Flag Call sign/MMSI
ID Category Auto/Manual
MMSI 
Call sign 
Serial 
Customer comments
Warranty claim YES/NO
EXTERNAL
INSPECTION
Auto bracket EPIRB
Manual bracket
Magnet present 
Clip functional 
Magnet present 
Cover intact 
Lever arm operates 
HRU date________________
Tamper intact 
Plastic acceptable 
Antenna acceptable 
Lanyard OK 
Sea switch contacts 
Comments
FUNCTIONAL TEST
Sea Switch
ON within 3 seconds 
OFF with magnet in 8s 
Does not activate with magnet 
Self test
LED on 
Buzzer 
Strobe 3 flashes 
Live mode
LEDs/buzzer on 
Strobe consistent 
Switches off 
GPS Test
Pass 
Comments
MESSAGE READ
ID OK  Country 
MMSI/Call sign/Serial no
406 frequency OK  Man Serial No 
EPIRB No Auto/Man
Comments
INTERNAL INSPECTION
Required

(optional)
Battery OK  Battery voltage______V ______V_______V
No water ingress  Plastic damage  PCB OK  No PCB corrosion 
Comments
Conclusions
Assessed by Signed Date FINAL LEAK TEST RESET TIMERS
New Parts
Battery kit 
Sealing kit 
Antenna 
Lens dome 
Body 
PCB Assy 
Label kit 
F/F label kit 
Pass/Fail
