6
ACZ 010A through 039A IOMM ACZ1

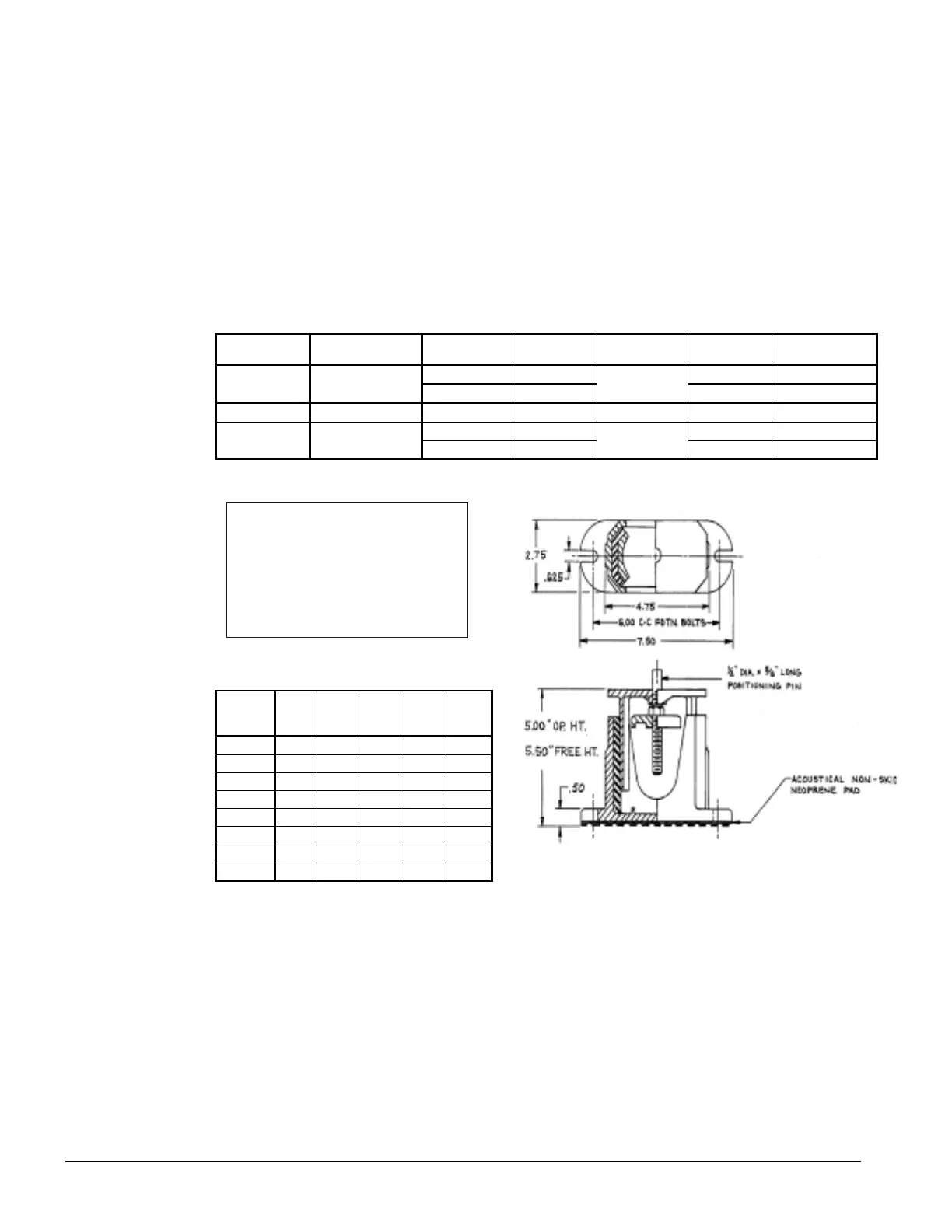

Vibration Isolators
Vibration isolators are recommended for all roof-mounted installations or wherever vibration
transmission is a consideration. The isolators can be purchased from McQuay by the part numbers
shown in the table.
The unit should be initially on shims or blocks at the listed free height. When all piping, wiring,
flushing, charging, etc. is completed, the springs are adjusted upward to loosen the blocks or shims
that are then removed.
A rubber anti-skid pad is part of the isolator. Installation of spring isolators requires flexible piping
connections and at least three feet of flexible conduit to avoid straining the piping and transmitting
vibration and noise.
Table 1, Recommended Vibration Isolators
ACZ UNIT
ISOLATOR
TYPE
ISOLATOR
PART NO.
NUMBER
REQUIRED
KIT of FOUR
PART NO.
LOCATION
ISOLATOR
DESCRIPTION
021639703 2 LF, RF RP-3 Green
010A – 039A Rubber-in-Shear
021639701 2
350014857
LB, RB RP-3 Red
010A – 020A Spring Isolators 047792726 4 350014835 All CP-1-26
047792726 2 LF, RF CP-1-27
025A – 039A Spring Isolators
047792727 2
350014839
LB, RB CP-1-26
Note: See dimension drawing for location of isolators
Corner Operating Weights
ACZ
Unit
Model
RF LF RB LB Total
010 309 311 190 190 1000
013 309 311 190 190 1000
016 402 404 207 207 1220
020 511 513 158 158 1340
025 492 494 242 242 1470
028 498 501 245 246 1490
033 614 567 302 277 1760
039 683 630 336 311 1960
Chilled Water System
Water Piping (Applicable when the Unit is Field Connected to a Water
Type Evaporator)
Local authorities can supply the installer with the proper building and safety codes required for proper
installation.
Install piping with minimum bends and changes in elevation to minimize pressure drop. Consider the
following when installing water piping:
1.
Vibration eliminators to reduce vibration and noise transmission to the building.
2.
Shutoff valves to isolate the unit from the piping system during unit servicing.
RBI
LBI
RFI
LFI
Control
Panel
