IM 778 / Page 11

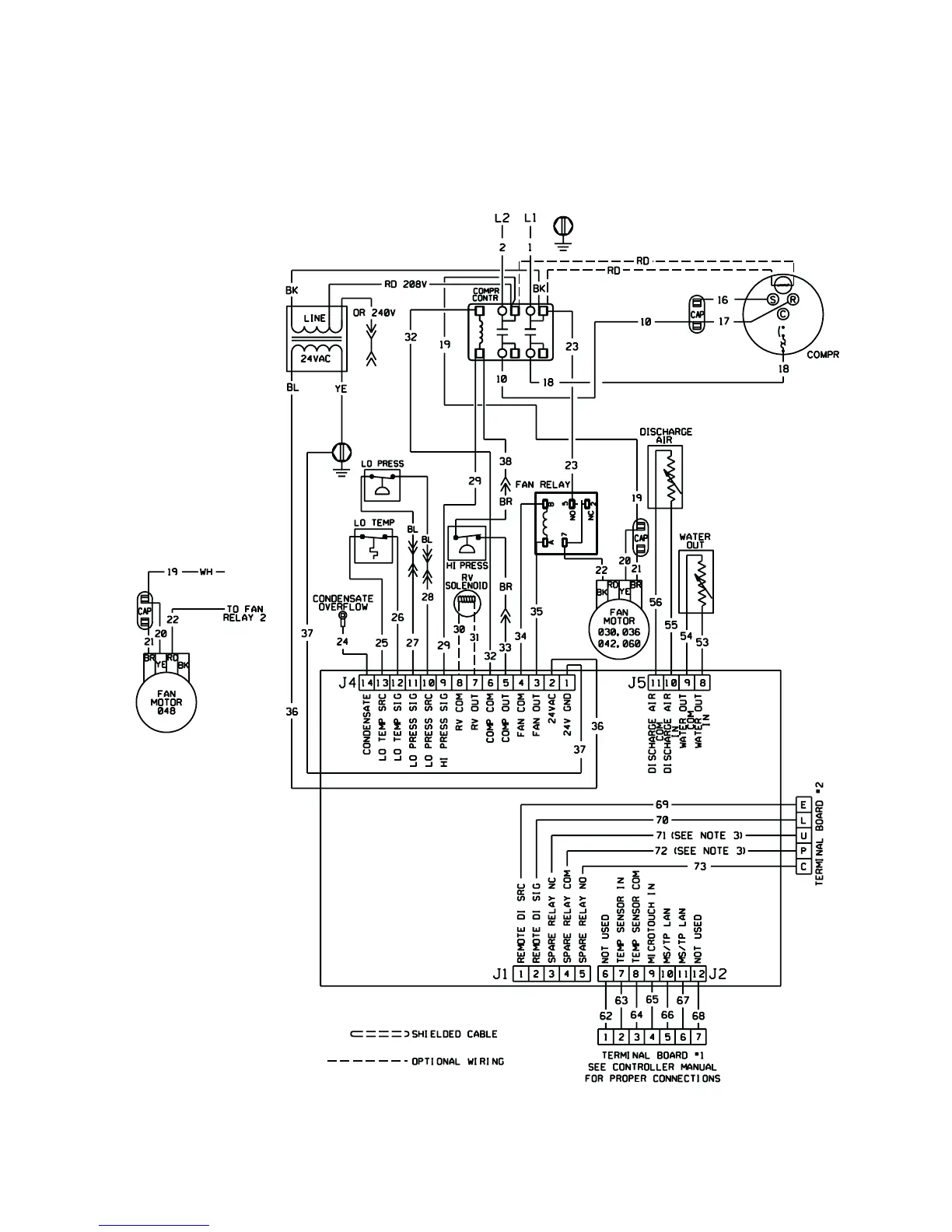

Figure 12. Typical BACnet
®
WSHP unit controller
Notes:
1. Unit is factory wired for 208V operation. If 230V power supply is used,
transformer must be rewired by disconnecting the power lead from the
red transformer primary wire and connecting the power lead to the
orange transformer primary wire. Place an insulation cap on the red
transformer primary wire.
