Page 12 of 24 / IM 407

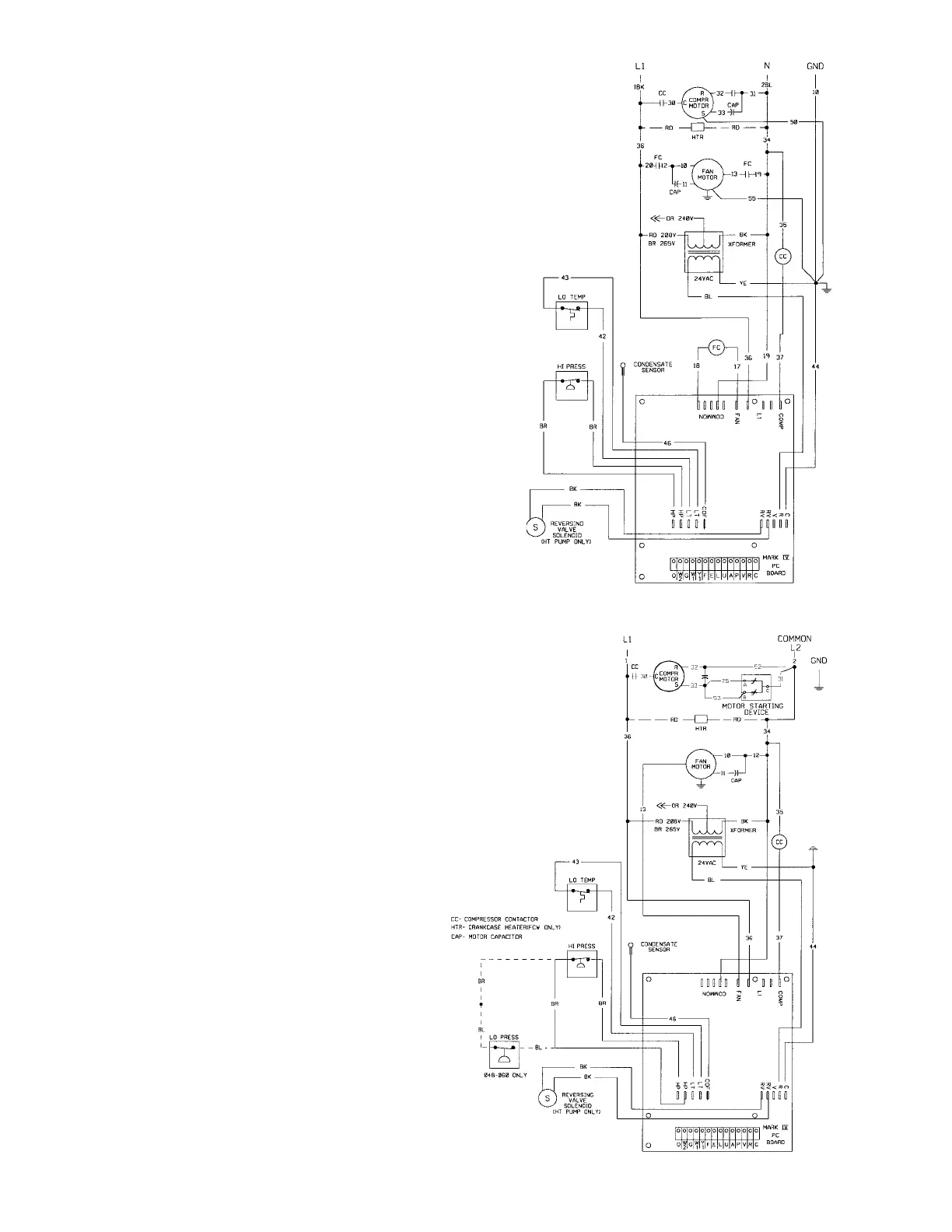

Figure 16. Unit sizes 024 (230 volts, single-phase) 061415320 Rev. A
Notes:
1. Mark IV/AC controller board contains a static sensitive micropro-
cessor. Proper grounding of field service personnel is required or
damage to controller may result.
2. Terminal block on Mark IV/AC board provides 24 VAC at termi-
nals R and C. All other terminals are 24 VDC output.
3. All temperature and pressure switches are normally closed.
4. Field supplied relays attached to the 24 volt terminals R, W, Y or
G may introduce electrical noise. Never install relays in series
with the inputs.
Notes:
1. Mark IV/AC controller board contains a static sensitive micropro-
cessor. Proper grounding of field service personnel is required or
damage to controller may result.
2. Terminal block on Mark IV/AC board provides 24 VAC at termi-
nals R and C. All other terminals are 24 VDC output.
3. All temperature and pressure switches are normally closed.
4. Field supplied relays attached to the 24 volt terminals R, W, Y or
G may introduce electrical noise. Never install relays in series
with the inputs.
Figure 17. Unit sizes 048 and 060 (230 volts, single-phase) 063393303 Rev. C
To Next Page
