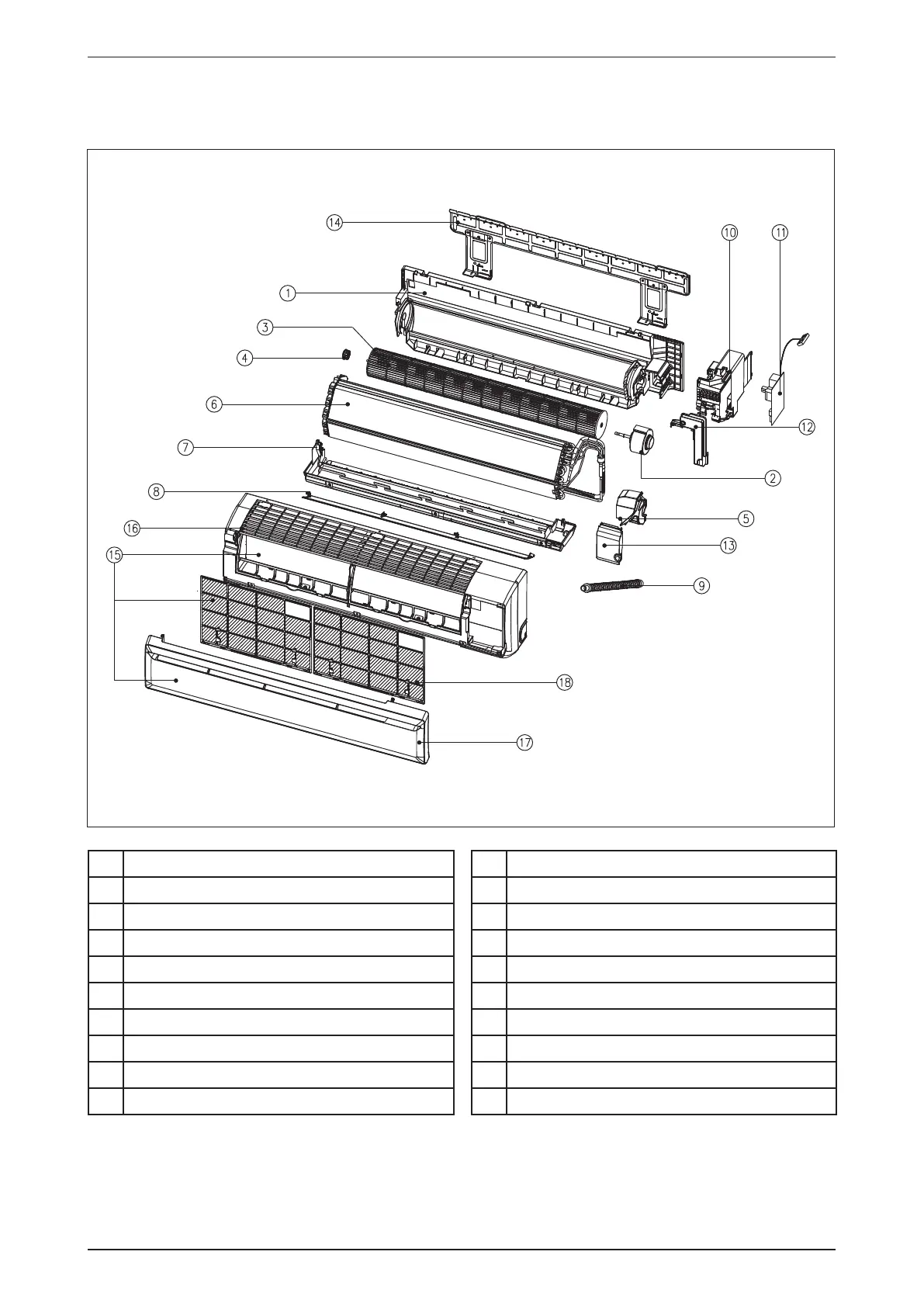

M5MSY_(i) Exploded View and Part List
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
Indoor Unit
Model: M5WMY 20JR
No Description
1
Assy. Chasis
2
Motor
3
Blower
4
Fan Bush
5
Cover, Motor
6
Assy. Heat Exchanger
7
Assy. Air Discharge Housing
8
Assy. Louver
9
Hose
No Description
10
Assy. Control Box
11
Assy. Control Module
12
Cover, Control Box
13
Cover, Service
14
Assy. Mounting Plate
15
Assy. Front Cover
16
Cover, Front
17
Intake Grille
18
Filter
