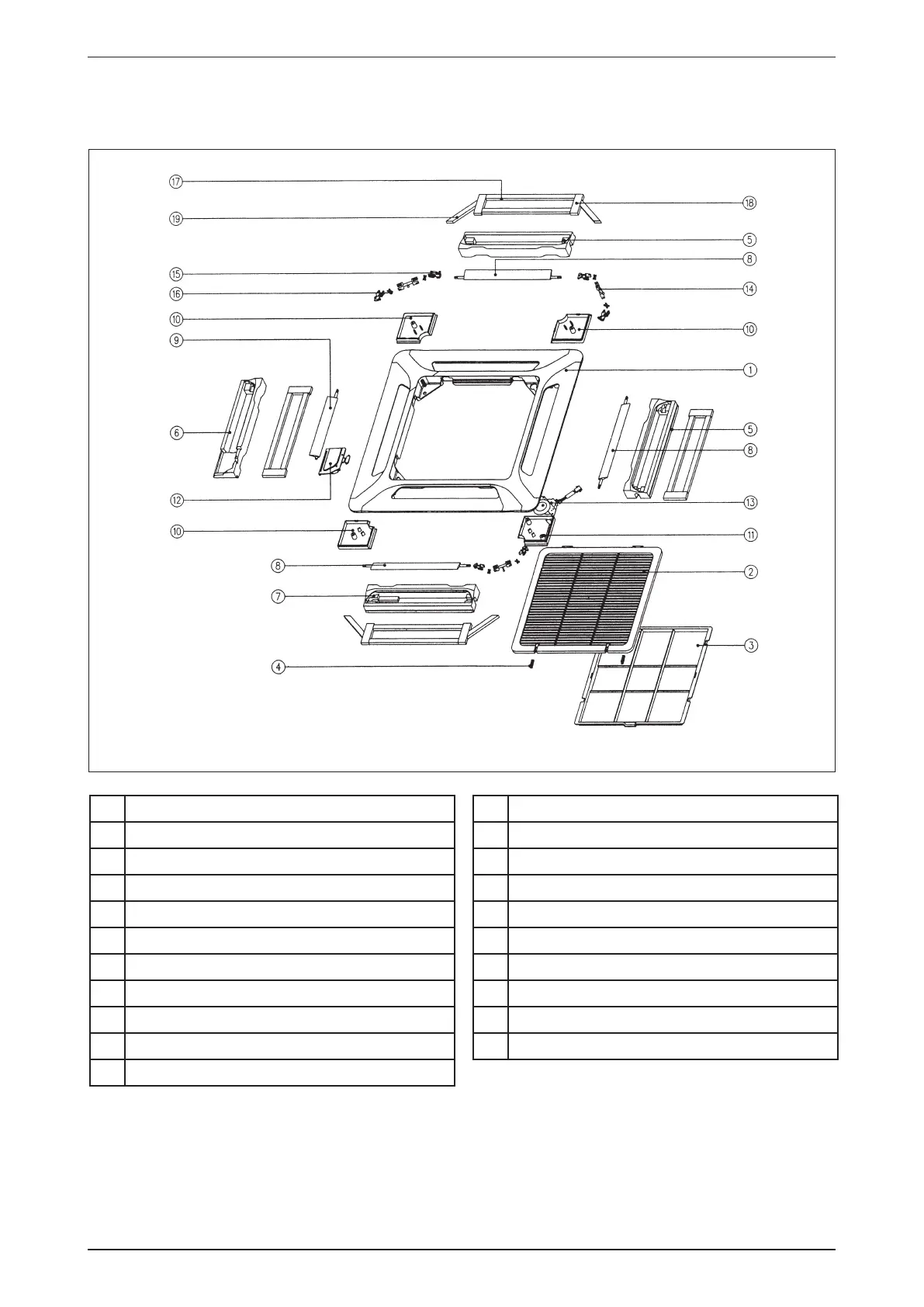

Exploded View and Part List M5MSY_(i)
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
Indoor Unit
Model: PLCKY-CR
No Description
1
Frame
2
Assy. Intake Grille B
3
Filter
4
Lock, Grille
5
Discharge, Foam
6
Discharge, Foam LED
7
Discharge, Foam Short
8
Louver
9
Louver, LED
10
Lingkage, Cover
No Description
11
Lingkage, Motor Cover
12
Assy. Bracket Receiver (LED/SLM)
13
Assy. Motor
14
Crank, Connector
15
Louver, Holder
16
Cross, Crank
17
Ins. Long
18
Ins. Short
19
Ins. Corner
