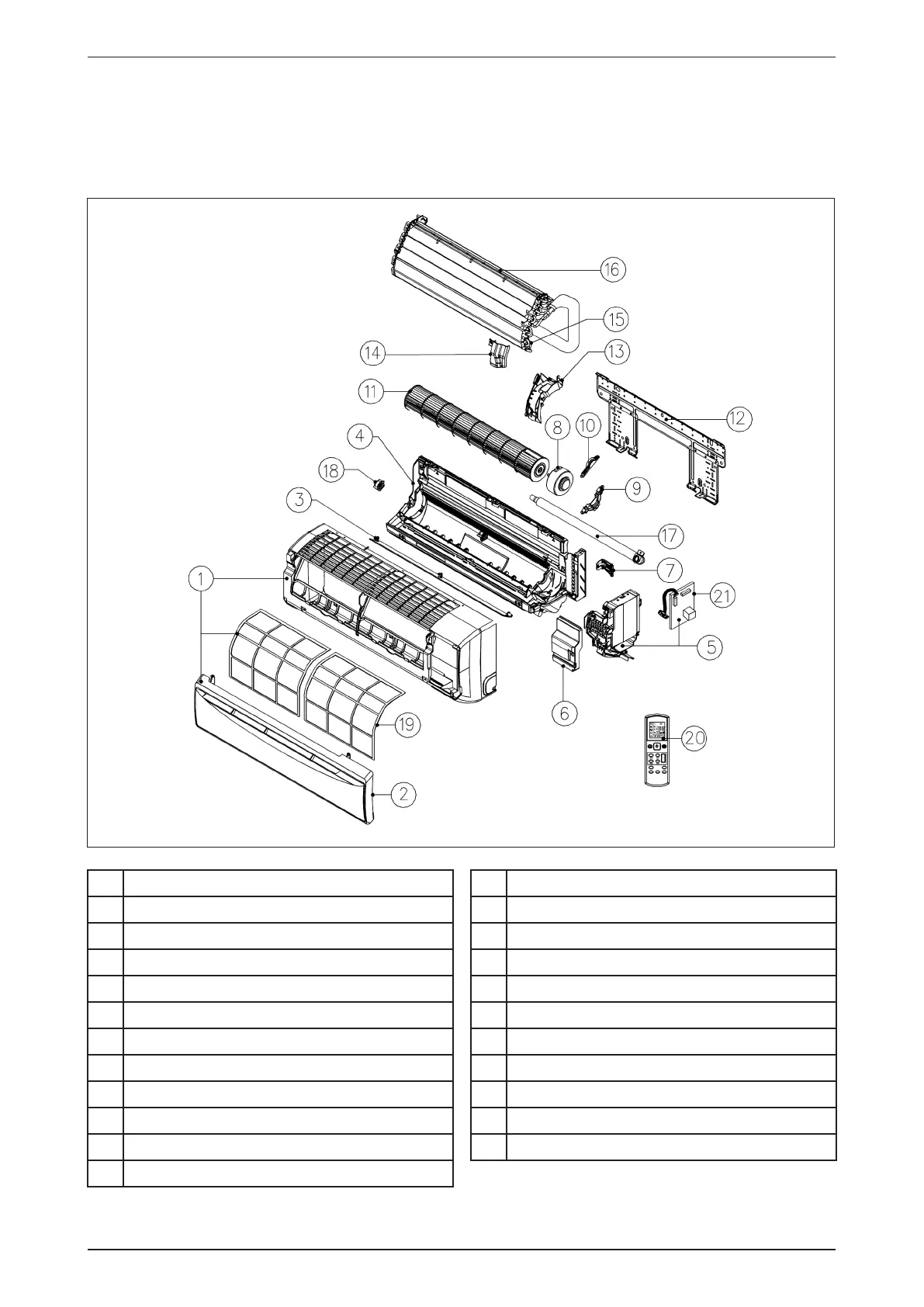

M5MSY_(i) Exploded View and Part List
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
No
Description
1 Assy. Front Grille
2 Assy. Panel
3 Assy. Disch. Grille Hor.Blade
4 Bottom Frame Assy.
5 Assy. Control Box
6 Assy. Service Cover
7 Assy. Piping Fixture
8 Motor
9 Motor Mounting Plate (1)
10 Motor Mounting Plate (2)
11 Blower, Cross Flow
No
Description
12 Assy. Installation Plate
13 Right Side Panel
14 Drip Proof Cover
15 Clip, Coil Sensor
16 Assy. Coil
17 Assy. Drain Hose
18 Fan Bearing Vibration Absorber Set
19 Air Filter
20 Handset, Wireless
21 Assy. PCB (With Lamp Cover)
Exploded View and Part List
Indoor Unit
Model: M5WMY10/15LR
