M5MSY-2010 Application Information
Controller
Netware 3C

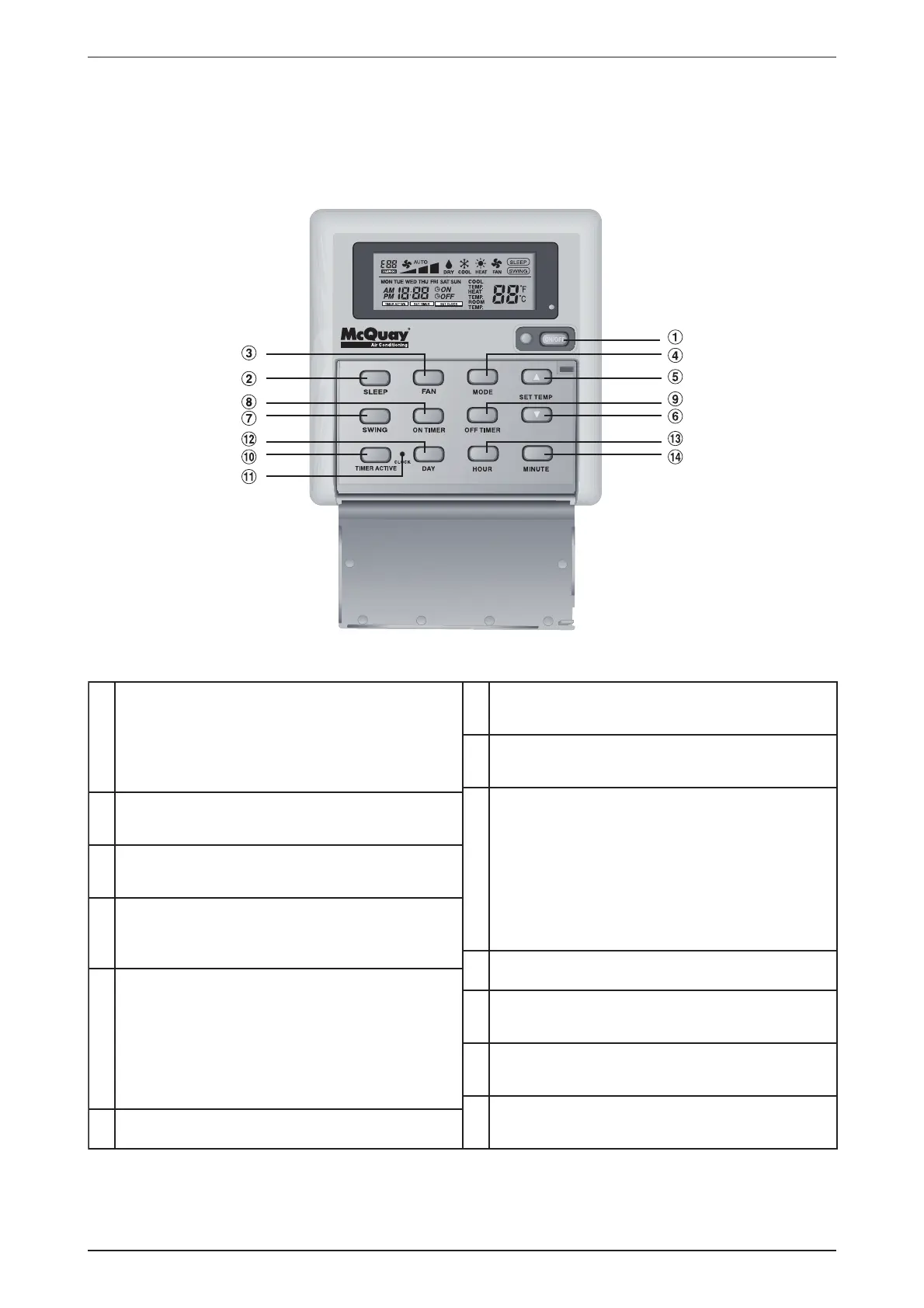

1 ON/OFF Button
Starting Operation:
When the unit is turned off, press the ON/OFF button.
The operation LED lights and the unit is turned on.
Stopping Operation:
When the unit is turned on, press the ON/OFF button. The
operation LED is extinguished and control are turned off.
•
•
2 SLEEP Button
Press SLEEP button to activate the sleep mode or energy
saving mode.
•
3 FAN Button
Press FAN button to select AUTO, HIGH, MEDIUM or LOW
fan speed.
•
4 MODE Button
Press the MODE button to switch operation from COOL,
HEAT, DRY, FAN.
Check the display to see in which mode the control is set.
•
•
5,6 ‘▲’ or ‘▼’ Set Temperature Button
Press the temperature button and set the temperature
of your choice. By pressing the ‘▲’ or ‘▼’ button once,
temperature changes by 1°C [or 1°F].
Temperature can be set within the range 16°C~30°C
(61°F~86°F)
During fan mode, temperature cannot be set.
If pressing ‘▲’ and ‘▼’ together, the unit of temperature will
change from °C to °F and vice-versa.
•
•
•
•
7 SWING button
Press SWING button to activate the air sweep function.•
8 ON TIMER Button
Enable/disable the Event 1, 2 and 3 ON TIMER setting
mode
•
9 OFF TIMER Button
Enable/disable the Event 1, 2 and 3 OFF TIMER setting
mode
•
10 Timer Active Button
These timers will not triggered if the timer is not active.
To activate the timers, press the TIMER ACTIVE key
unit “TIMER ACTIVE” appears on LCD. This symbol is to
indicate Event 1, Event 2 and/or Event 3 timers are active.
Pressing the same steps will deactivate the timers and
“TIMER ACTIVE” symbol will disappear.
Another method to cancel the timers setting is changed all
the hour setting of the timers to null one by one. When the
setting is null, the LCD display --:--, then this respective
timer will be disable.
•
•
11 CLOCK Button
Enable/disable the Real Time Clock (RTC) setting mode•
12 DAY Button
a) Select the day for RTC or timer setting
b) Enable/disable FAN Key lock
13 HOUR Button
a) Select the hour for RTC or timer settings
b) Set Override function for 1, 2 or 4 hours
14 MINUTE Button
a) Select the minute for RTC or timer settings
b) Enable/disable key lock
