Outline and Dimension M5MSY-2010

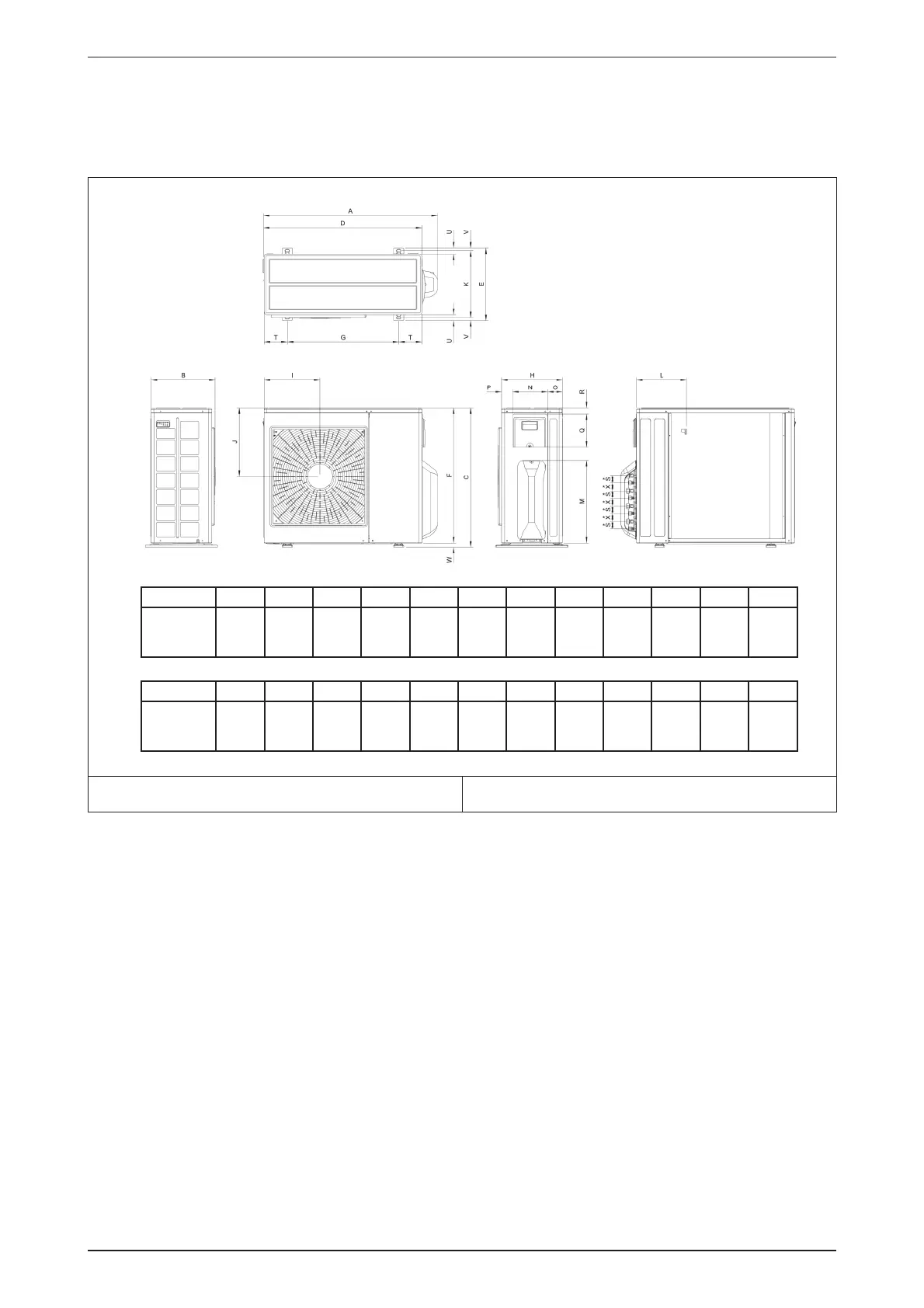

Outline and Dimension
Outdoor Unit
Model: M5MSY20/25/30BR
Note: Dimension in mm
Dimension A B C D E F G H I J K L
mm
(inch)
940
(37)
348
(13.7)
756
(29.8)
855
(33.7)
392
(15.4)
733
(28.9)
603
(23.7)
328
(12.9)
303
(11.9)
370
(14.6)
362
(14.3)
271
(10.7)
Dimension M N O P Q R S T U V W X
mm
(inch)
448
(17.6)
190
(7.5)
80
(3.1)
58
(2.3)
180
(7.1)
32
(1.3)
39
(1.5)
126
(5)
32
(1.3)
15
(0.6)
23
(0.9)
44
(1.7)
