26
M5MSY-2010 Application Information

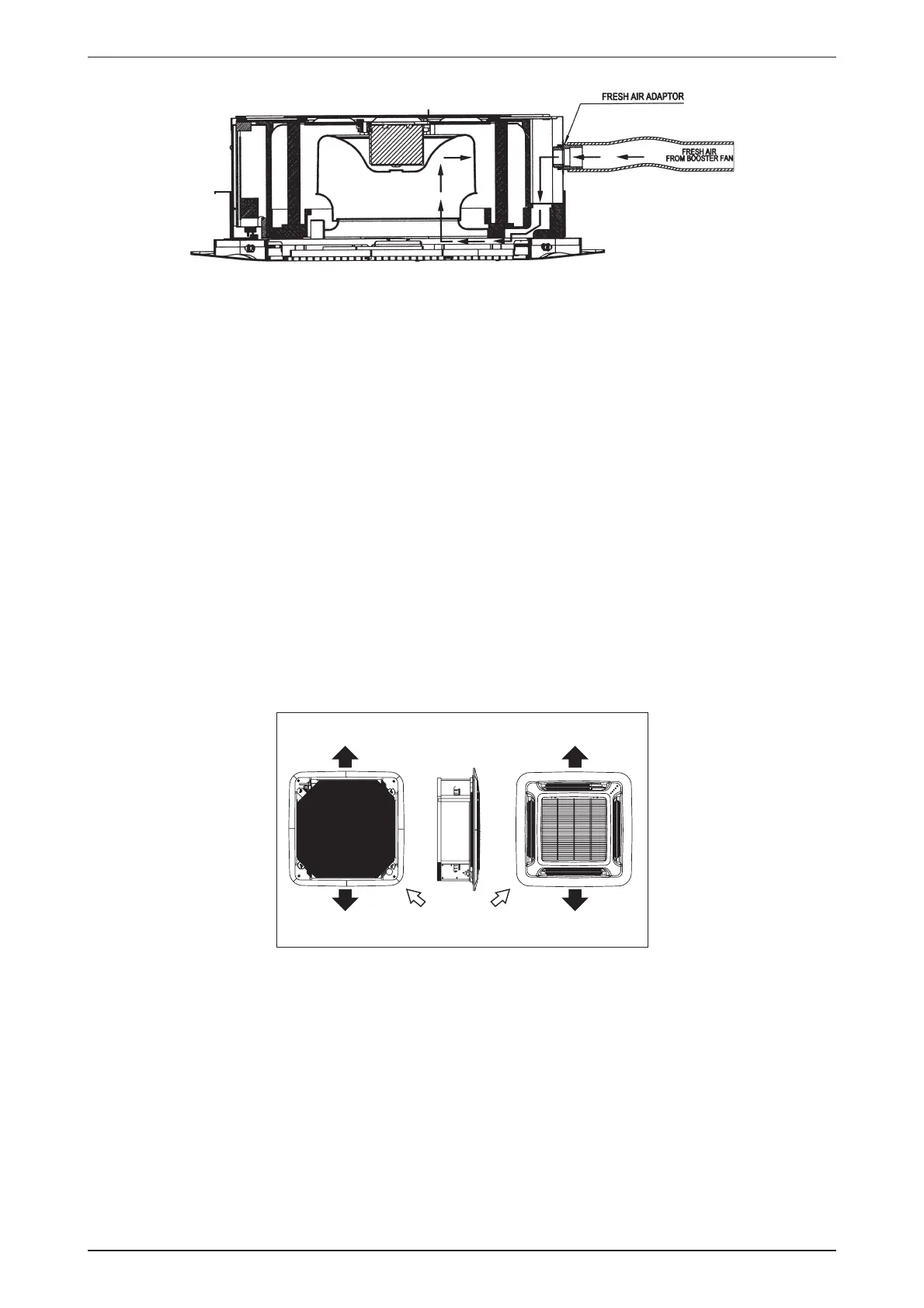

Fig. 2
The direction of the fresh air intake is shown as fi g. 2.
Sealing Material
It is possible to seal one of the four air discharge outlet (sealing two or more air discharge outlet could
cause a malfunction).
Remove the front panel and inserting the seal material into the air discharge outlet at the indoor unit to
sealthe air outlet.
The sealing material is the same length as the length air discharge outlet. If it is desired to seal the shorter
air discharge outlet, cut the sealing material to shorten it.
Push the sealing material in about 10mm beyond the bottom surface of the indoor unit so that it does not
touch the air louver. Be sure not to push the sealing material in any farther than about 10mm.
Short Duct Specifi cation For M5CKY-E Unit
The indoor unit is provided with air discharge and air intake “knock-out” hole for duct connection. However
the connection of the short duct for air discharge is possible on only one side.
The use of short duct for air discharge will improve air fl ow distribution if there is an obstruction (such as
alighting fi xture) or in a long, narrow room or an L-shaped room. It is also used for air-conditioning of two
rooms simultaneously.
Possible Direction For Air Discharge and Air Intake
Air Intake
Air DischargeAir Discharge
egrahcsiDriAegrahcsiDriA
•
•
•
•
•
•
