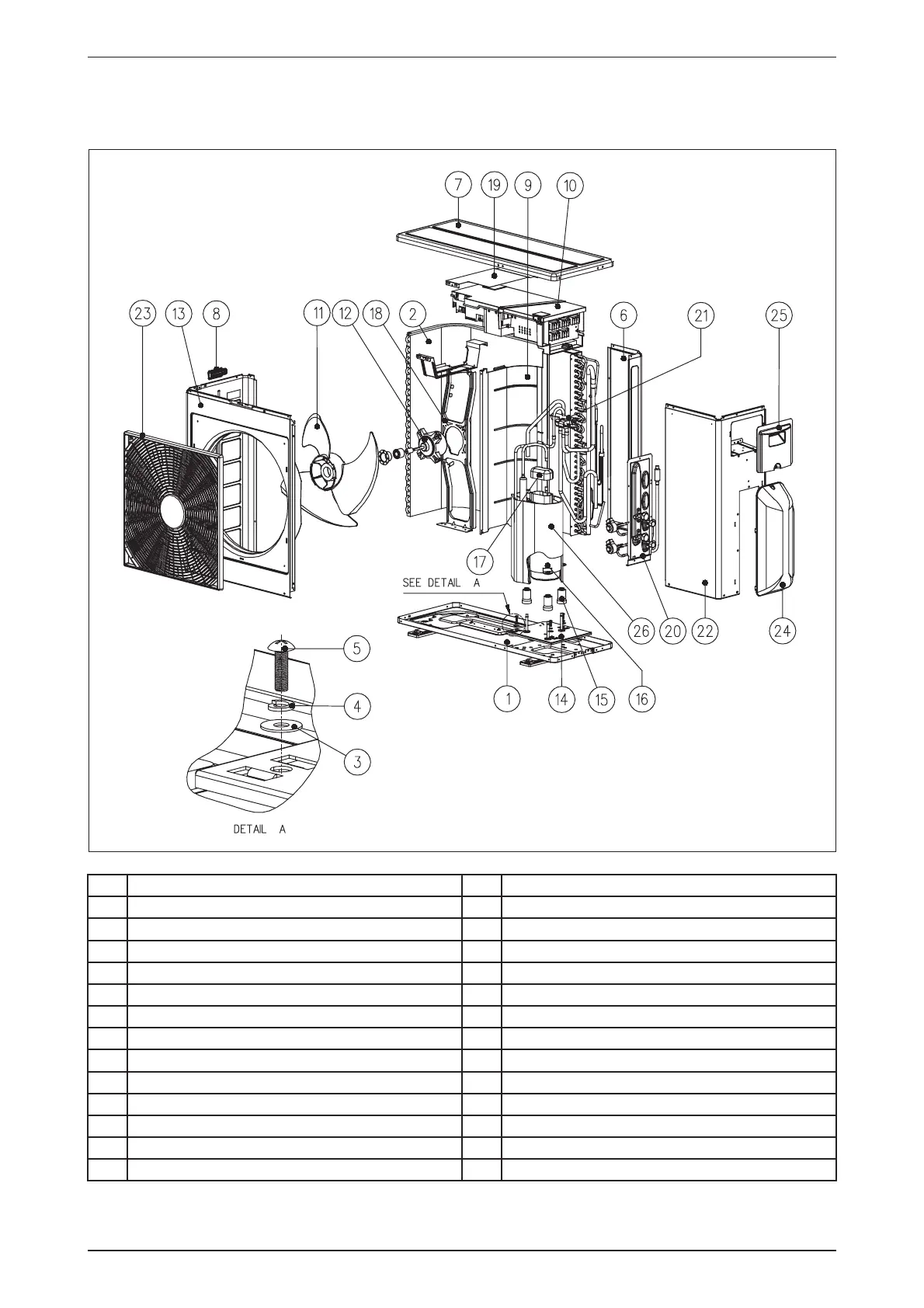

M5MSY-2010 Exploded View and Part List
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
Outdoor Unit
Model: M5MSY20BR
No Description No Description
1 Assy. Base Pan 14 Assy. Comp. Mounting Plate
2 Assy. Outdoor Coil 15 Grommet, Comp.
3 Flat Washer 16 Compressor
4 Washer, Spring 17 Terminal Cover
5 Screw 18 Motor, Bracket
6 Assy. Panel Right Back 19 Plate, Seal Board
7 Assy. Panel Top 20 Assy. Valve Plate Main
8 Plastic, Handle 21 Assy. 4WV
9 Partition 22 Panel, Service
10 Assy. Control Box 23 Plastic, Front Grille
11 Assy. Propeller Fan 24 Plastic, Valve Cover
12 Motor 25 Access, Cover
13 Panel, Front/ Left 26 Compressor, Felt
