M5MSY-2010 Application Information
Please ensure that the following steps are taken:
Check the gradient for drainage fl ow as recommended in Figure 4.

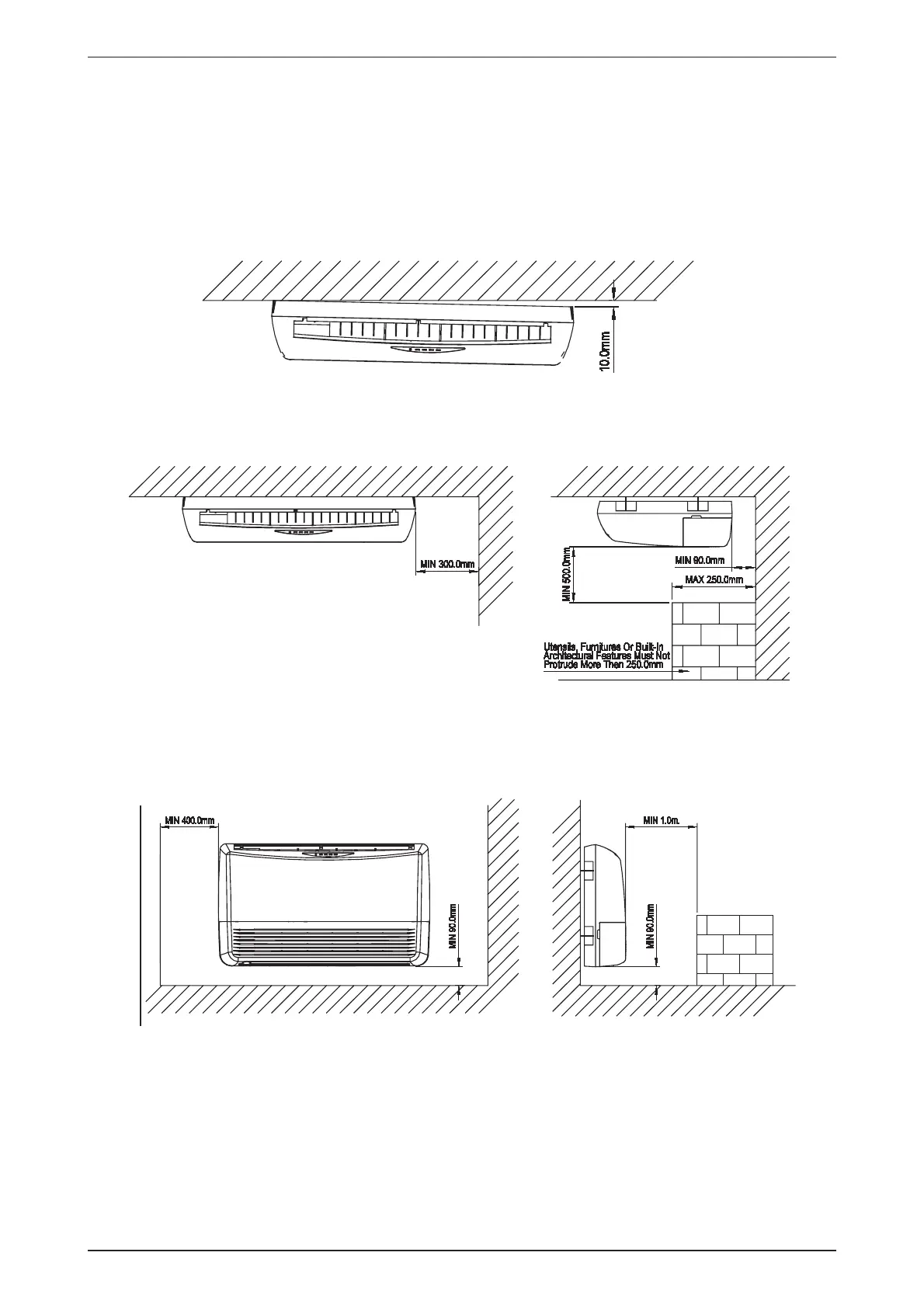

Provide clearance for easy servicing and optimal air fl ow as shown in Figure 5.
The indoor unit must be installed such that there is no short circuit of the cool discharge air with the warm
return air.
Don not install the indoor unit where there is direct sunlight shining on the unit. The location should be
suitable for piping and drainage installation. The unit must be a large distance away from the door.
Fig.4
Fig.5
Under ceiling type
Floor standing type
•
•
•
•
