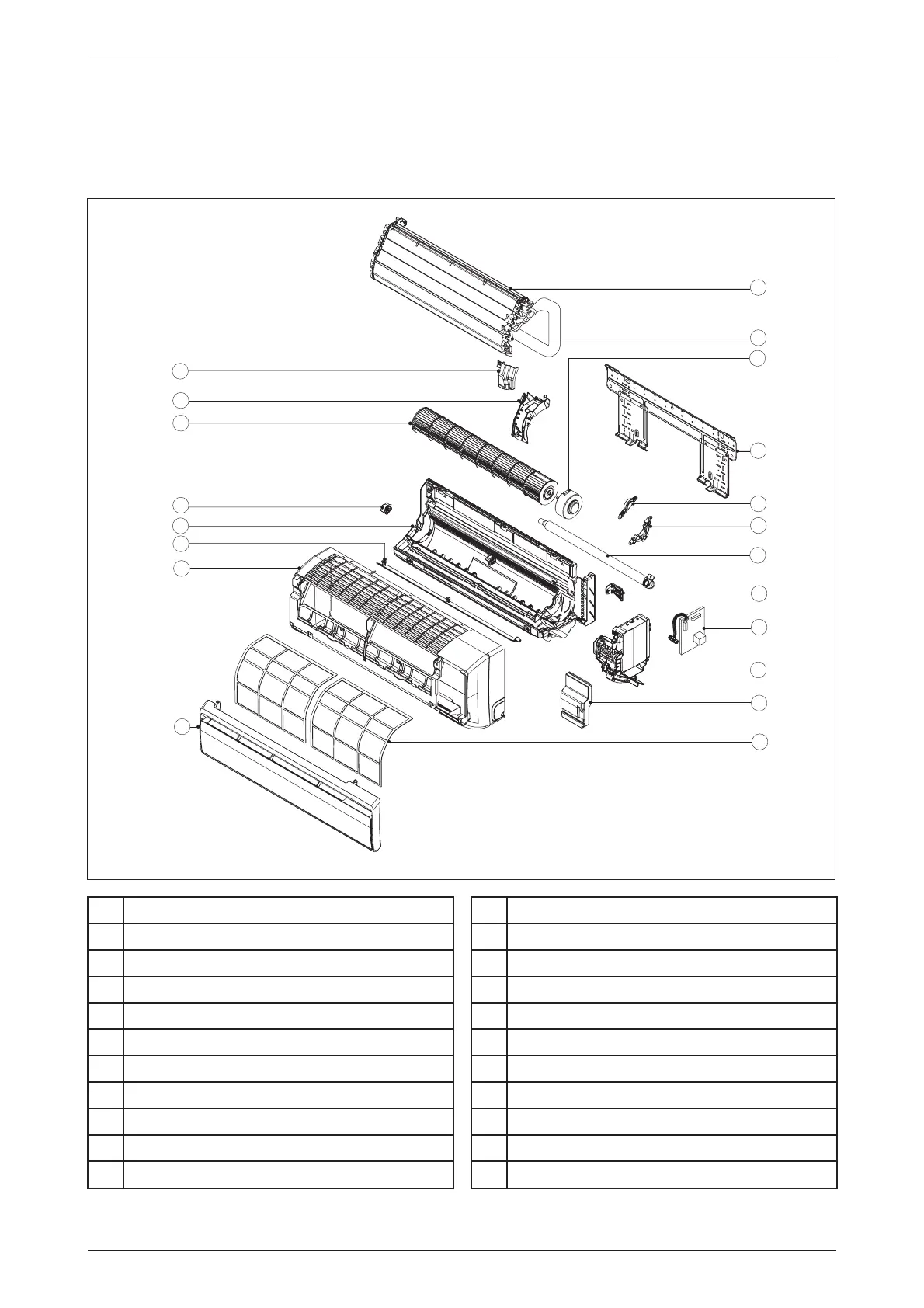

M5MSY-2010 Exploded View and Part List
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
No
Description
1 Assy. Front Grille
2 Panel, McQuay
3 Disch. Grille Hor.Blade Assy.
4 Assy. Bottom Frame
5 Assy. Control Box
6 Assy. Service Cover
7 Assy. Piping Fixture
8 Motor
9 Motor Mounting Plate (1)
10 Motor Mounting Plate (2)
No
Description
11 Blower
12 Assy. Installation Plate
13 Right Side Panel
14 Cover, Drip Proof
15 Clip, Coil Sensor
16 Assy. Heat Exchanger
17 Assy. Drain Hose
18 Fan Bearing Vibration Absorber
19 Air Filter
20 Assy. Control Module
1
2
3
8
10
12
15
18
4
11
13
14
9
17
7
5
6
20
19
16
Exploded View and Part List
Indoor Unit
Model: M5WMY10/15JR
To Next Page
