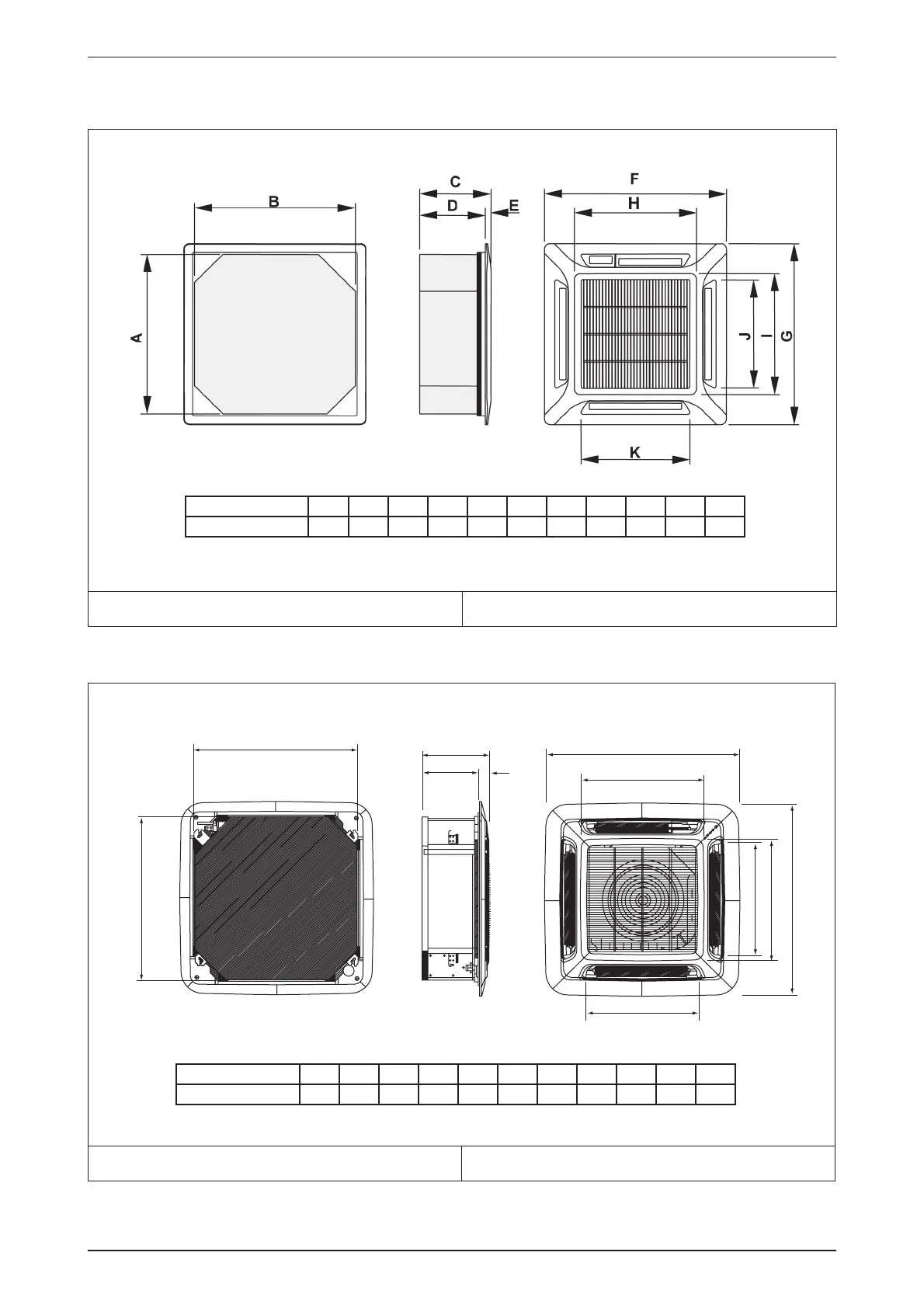

Outline and Dimension M5MSY-2010
Indoor Unit
Model: M5CKY 10/15/20CR
Note: Dimension in mm
Indoor Unit
Model: M5CKY 20/25ER
A
B
C
D
E
F
H
K
J
I
G
Note: Dimension in mm
MODEL A B C D E F G H I J K
M5CKY 10/15/20CR 570 570 295 275 20 640 640 408 408 364 364
MODEL A B C D E F G H I J K
M5CKY 20/25ER 820 820 350 290 60 990 990 627 627 607 607
