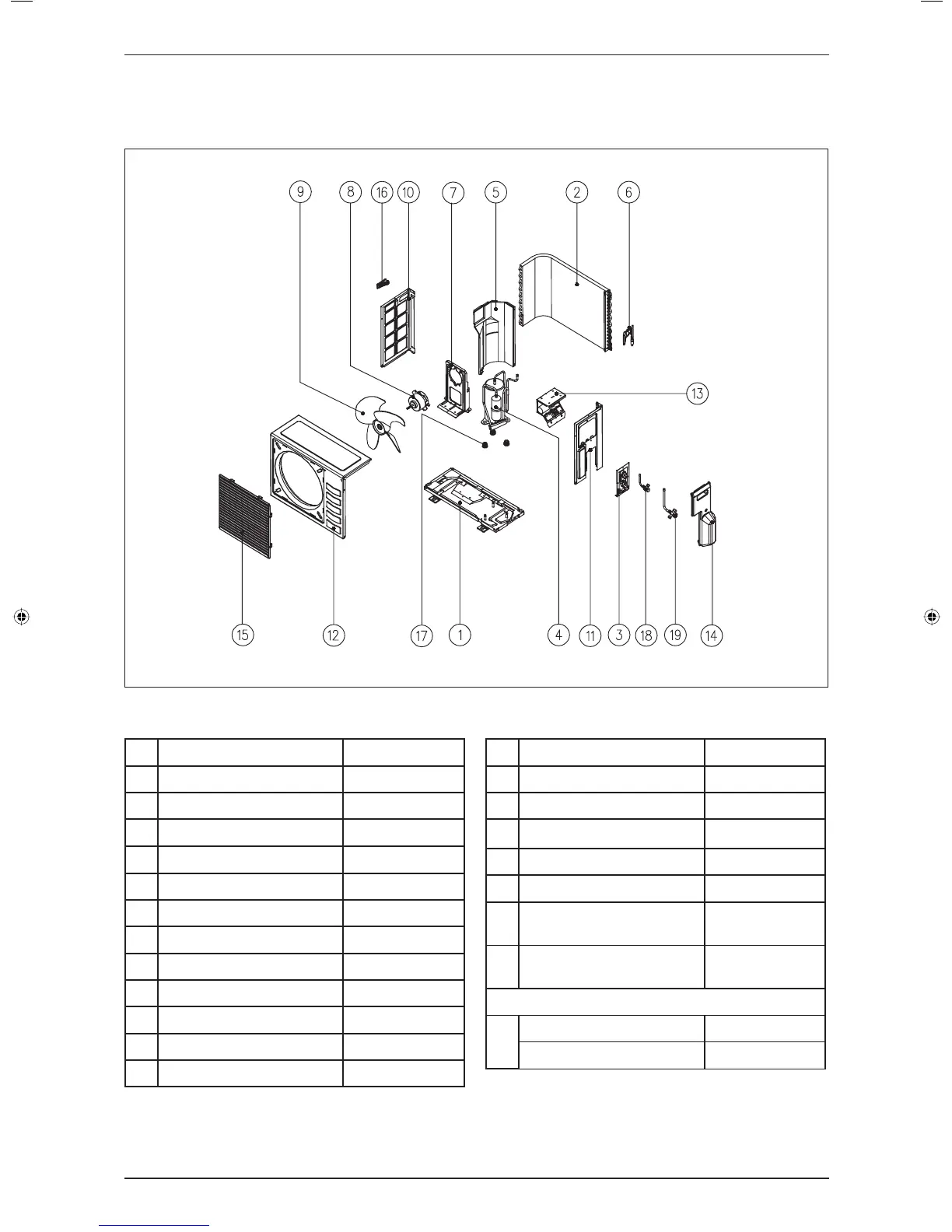

MWM-J-2009 Exploded View and Part List
OUTDOOR UNIT
MODEL: MLC009C
70024056770
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
No Description Part Number
1 Assy. Base Pan R50014057372
2 Assy. Outdoor Coil R50024092722
3
Valve Bracket
R01014051164
4 Compressor R04019031528
5 Assy. Partition R50064084355
6 Assy. Cap Tube R50024100896
7 Bracket, Fan Motor R01014052516
8 Fan Motor R03039028206
9 Fan Blade R03019020744
10 Left Panel R01014052510Y
11 Right Panel R01014084434Y
12 Assy. Front Panel R01014052512
No Description Part Number
13 Assy. Control Panel R50044089886
14 Assy. Valve Cover R50124055172
15 Assy. Front Grille R50124093629
16 Plastic Handle R12014057948
17 Rubber Grommet R11054069501
18 Assy. Flare Valve 2
Ways 1/4”
R50059029814
19 Assy. Flare Valve 3
Ways 3/8”
R50059029815
Parts Not in Diagram
Capacitor, Fan Motor R04029026755
Capacitor, Compressor R04029026775
