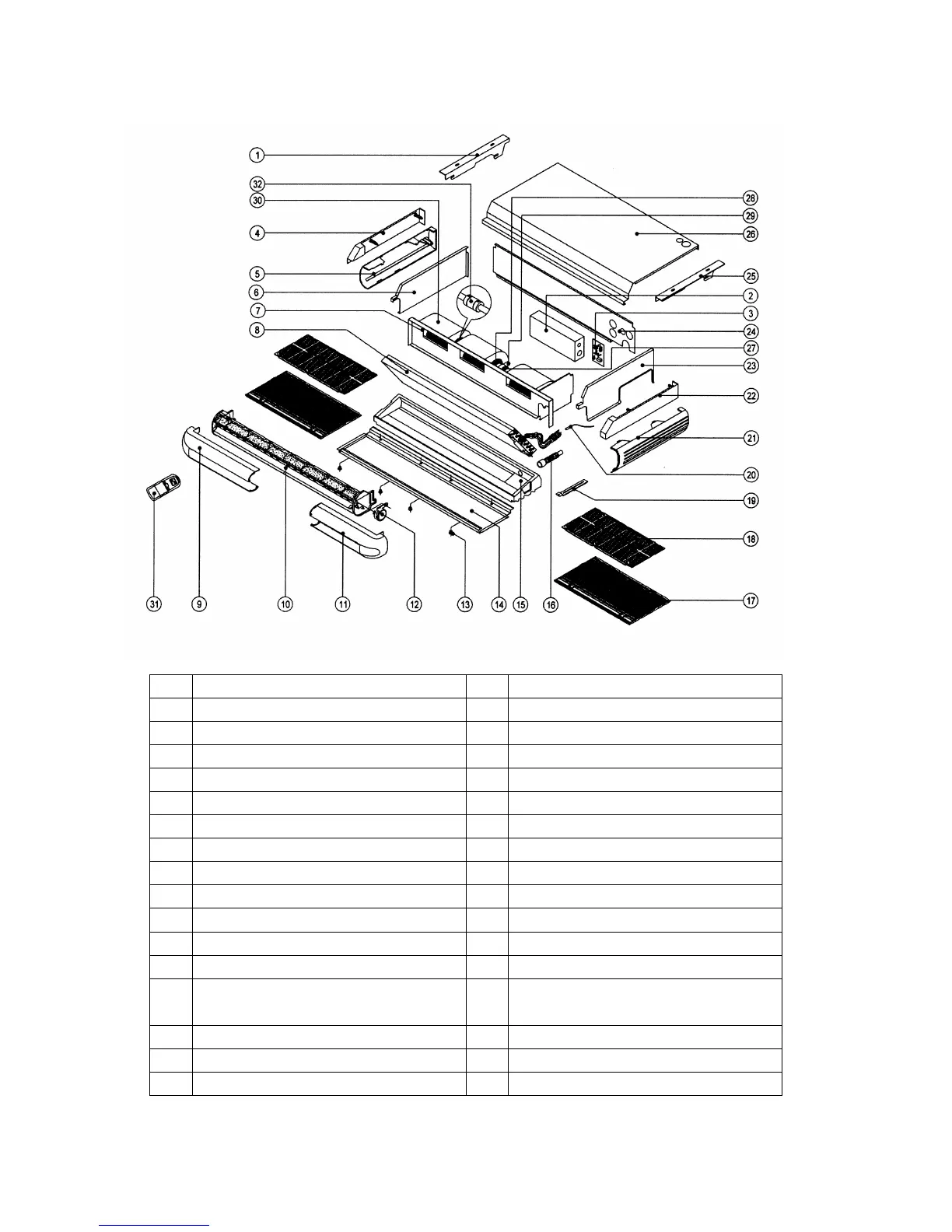

Model : MCM030 D/DR
NO. PART DESCRIPTION NO. PART DESCRIPTION
1 BRACKET HANGER, LEFT 17 GRILLE, AIR INTAKE
2 TERMINAL BOX COVER 18 ASSY, FILTER FRAME LEFT/RIGHT
3 PCB 19 BRACKET CENTRE SUPPORT
4 CLOSE UP, LEFT 20 THERMISTER
5 FRAME, SIDE LEFT 21 FRAME, SIDE RIGHT
6 ASSY, COIL HOLDER LEFT 22 CLOSE UP, RIGHT
7 FAN DECK 23 ASSY, COIL HOLDER RIGHT
8 COIL ASSY 24 BACK PANEL
9 FRAME, FRONT LEFT 25 BRACKET HANGER, RIGHT
10 ASSY, LOUVER BOTTOM 26 TOP PANEL
11 FRAME, FRONT RIGHT 27 FAN MOTOR
12 AIR SWING MOTOR ASSY 28 BLOWER WHEEL
13 AIR INTAKE GRILLE FRAME HOLDER
ASSY
29 HOUSING BLOWER, BOTTOM
14 BOTTOM PANEL 30 HOUSING BLOWER, TOP
15 DRAIN PAN ASSY 31 LCD HANDSET
16 DRAIN HOSE ASSY 32 RUBBER COUPLING
Page 88
