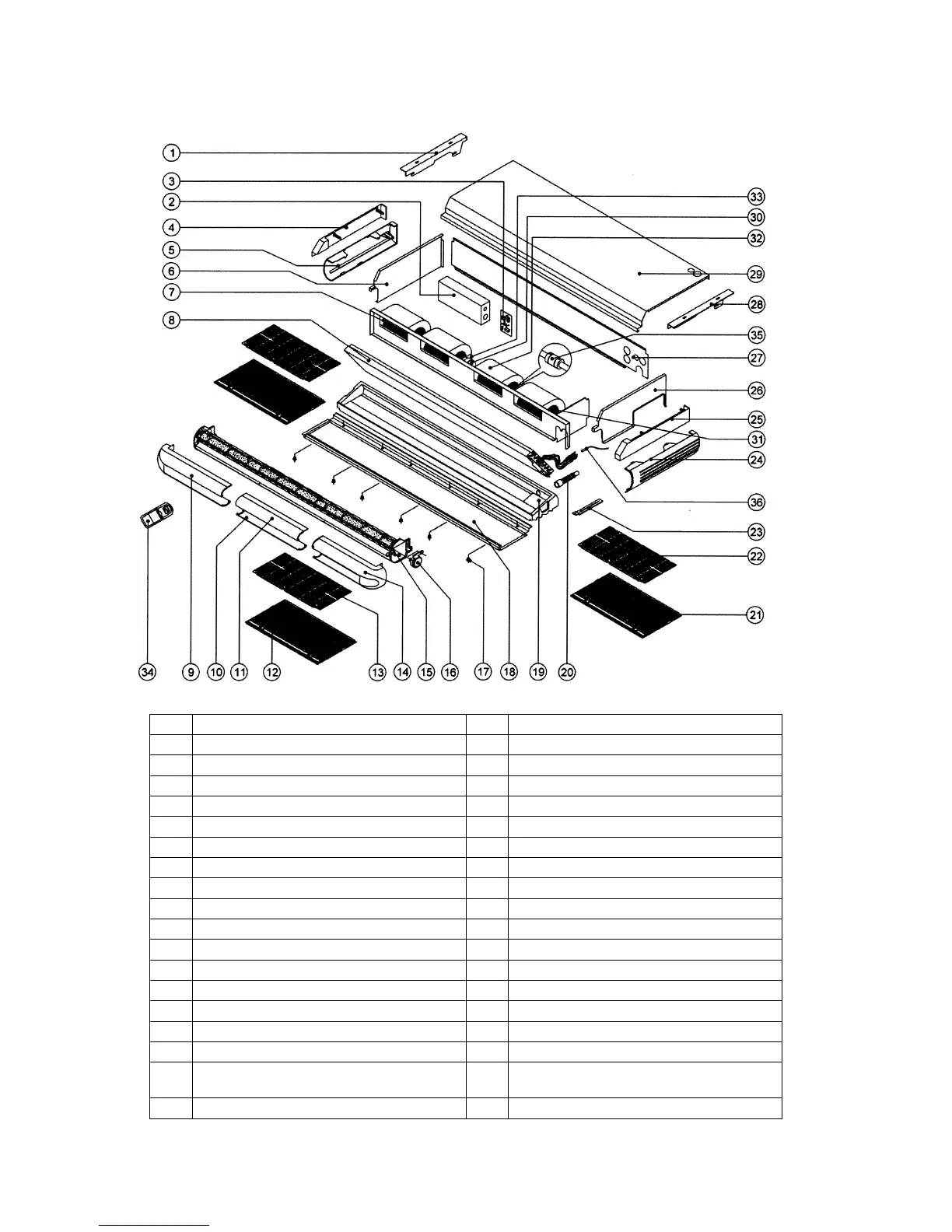

Model : MCM040/ 050 D/DR
NO. PART DESCRIPTION NO. PART DESCRIPTION
1 BRACKET HANGER, LEFT 19 DRAIN PAN ASSY
2 TERMINAL BOX COVER 20 DRAIN HOSE ASSY
3 PCB 21 AIR INTAKE GRILLE ASSY
4 CLOSE UP, LEFT 22 AIR INTAKE GRILLE ASSY
5 FRAME, SIDE LEFT 23 BACKET, CENTER SUPPORT
6 ASSY, COIL HOLDER LEFT 24 FRAME, SIDE RIGHT
7 FAN DECK 25 CLOSE UP, RIGHT
8 COIL ASSY 26 ASSY, COIL HOLDER RIGHT
9 FRAME, FRONT LEFT 27 BACK PANEL
10 FRONT BOTTOM CENTER 28 BRACKET HANGER , RIGHT
11 FRONT TOP CENTER 29 TOP PANEL
12 AIR INTAKE GRILLE CENTER ASSY 30 FAN MOTOR
13 AIR INTAKE GRILLE CENTER ASSY 31 BLOWER WHEEL
14 FRAME, FRONT RIGHT 32 HOUSING BLOWER, TOP
15 ASSY LOUVER BOTTOM 33 HOUSING BLOWER, BOTTOM
16 AIR SWING MOTOR ASSY 34 LCD HANDSET
17
AIR INTAKE GRILLE FRAME HOLDER
ASSY
35 RUBBER COUPLING
18 BOTTOM PANEL 36 THERMISTER
Page 89
To Next Page
