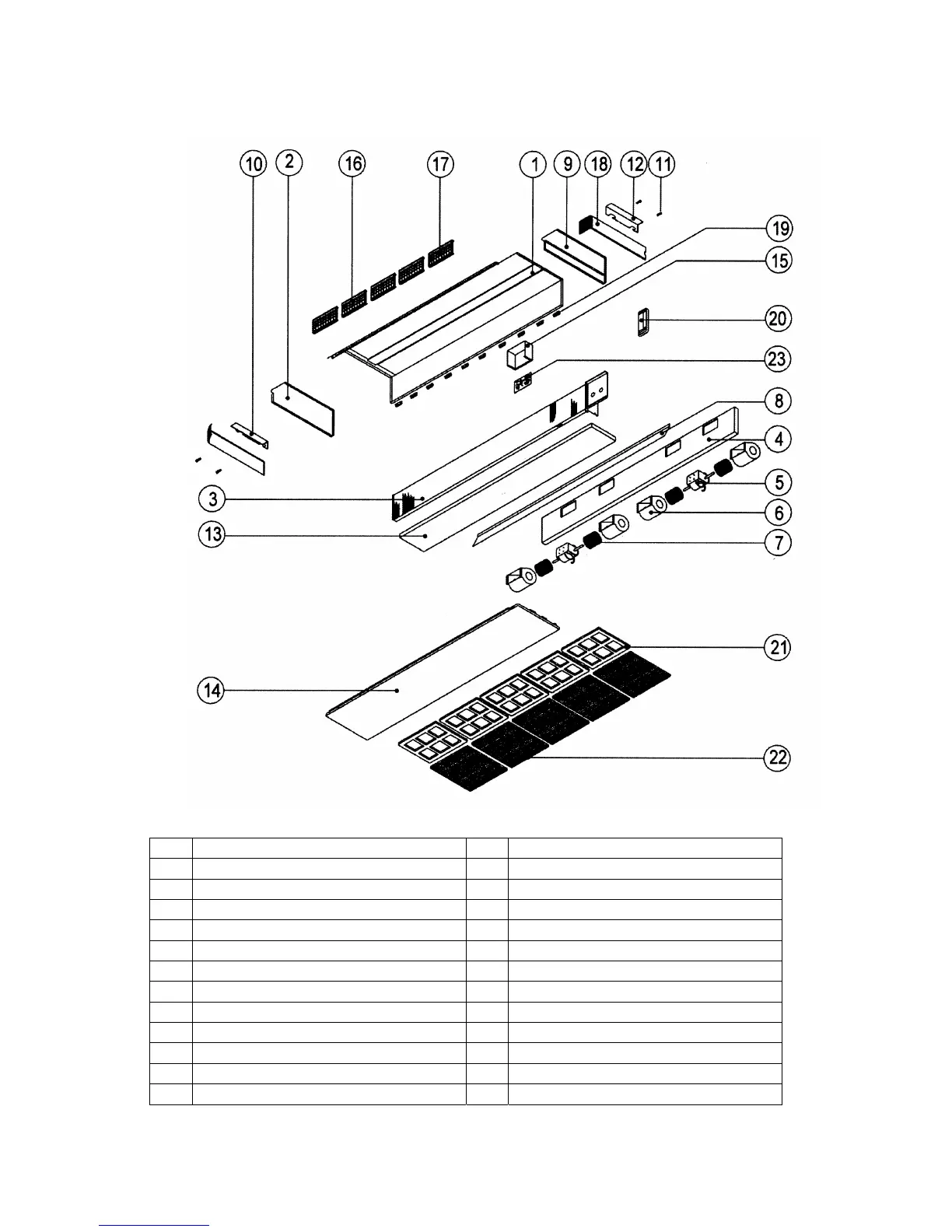

Model : MCM061 / 062 C/CR
NO. PART DESCRIPTION NO. PART DESCRIPTION
1 TOP BACK PANEL 13 DRAIN PAN
2 COIL HOLDER LEFT 14 BOTTOM PANEL
3 COIL ASSY 15 TERMINAL BOX
4 FAN DECK 16 FRONT FRAME (PLAIN)
5 MOTOR 17 FRONT FRAME (WITH LED INDICATORS)
6 BLOWER HOUSING & WHEEL 18 SIDE PANEL
7 RUBBER COUPLING 19 HOOK 4 x 14 mm
8 BRACKET, FAN DECK 20 LCD HANDSET
9 COIL HOLDER RIGHT 21 AIR INTAKE GRILLE C/W FILTER
10 BRACKET LEFT, HANGER W/PAINT 22 AIR INTAKE GRILLE C/W FILTER
11 BOLT, DOME HEAD HEX. 23 PCB
12 BRACKET RIGHT, HANGER W/PAINT
