Model : MLC/ M4LC020/ 025 B/BR
MLC030 B/BR

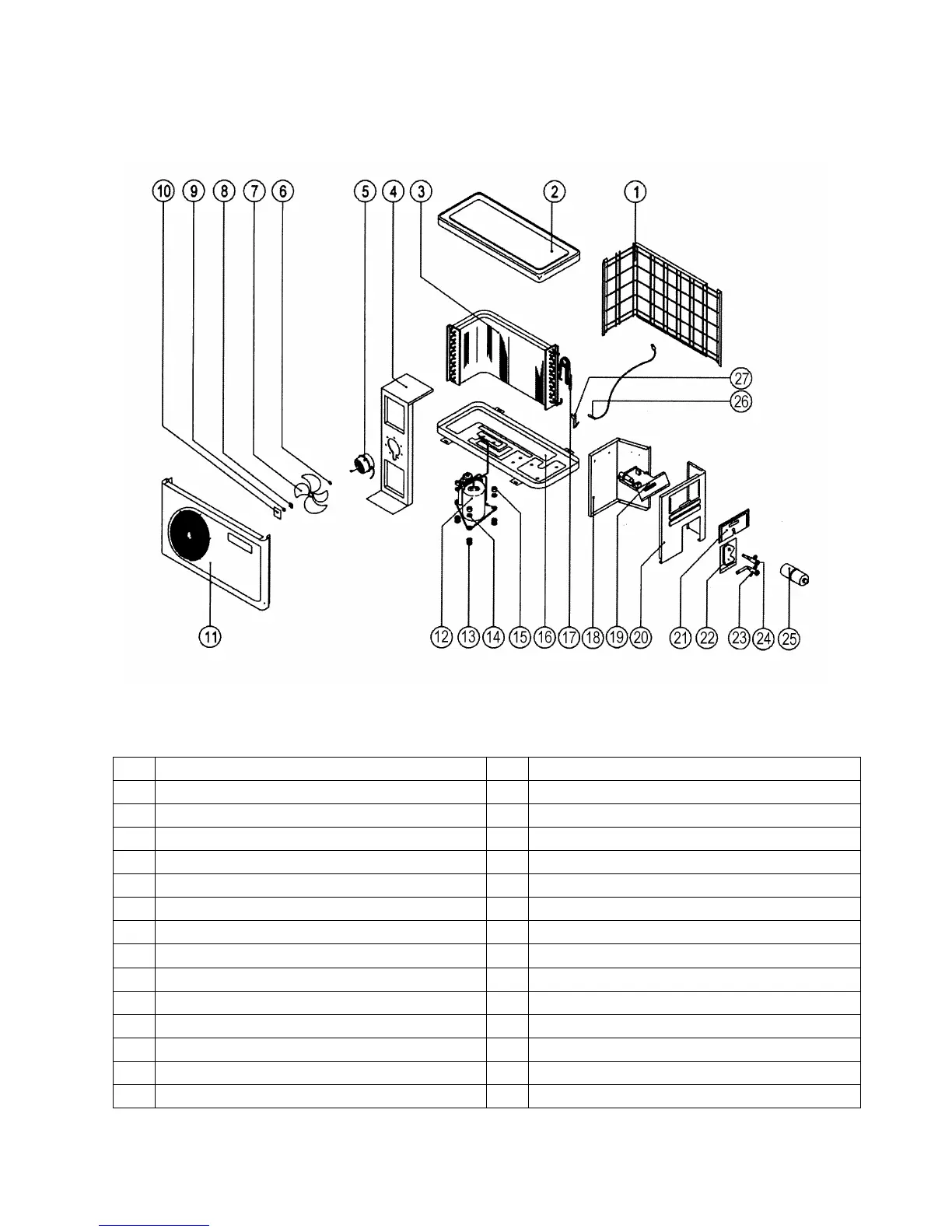

NO PART DESCRIPTION NO. PART DESCRIPTION
1 BACK PANEL 15 NUT
2 TOP PANEL 16 BASE PAN
3 COIL ASSY 17 CAPILLARY TUBE
4 MOTOR MOUNTING BRACKET 18 PARTITION
5 FAN MOTOR 19 TERMINAL BOX PANEL
6 RING WASHER 20 SIDE PANEL
7 FAN BLADE 21 ACCESS PANEL
8 SQUARE WASHER 22 PLATE, FLARE VALVE
9 HEX NUT 23 FLARE VALVE
10 BLACK LABEL 24 FLARE VALVE
11 FRONT PANEL 25 COMPRESSOR CAPACITOR
12 COMPRESSOR 26 OUTDOOR THERMISTER (COPPER)
13 RUBBER GROMMET 27 THERMISTER CLIP
14 WASHER
