MCM-D MCM061C
Figure B
Please ensure that the following steps are taken :

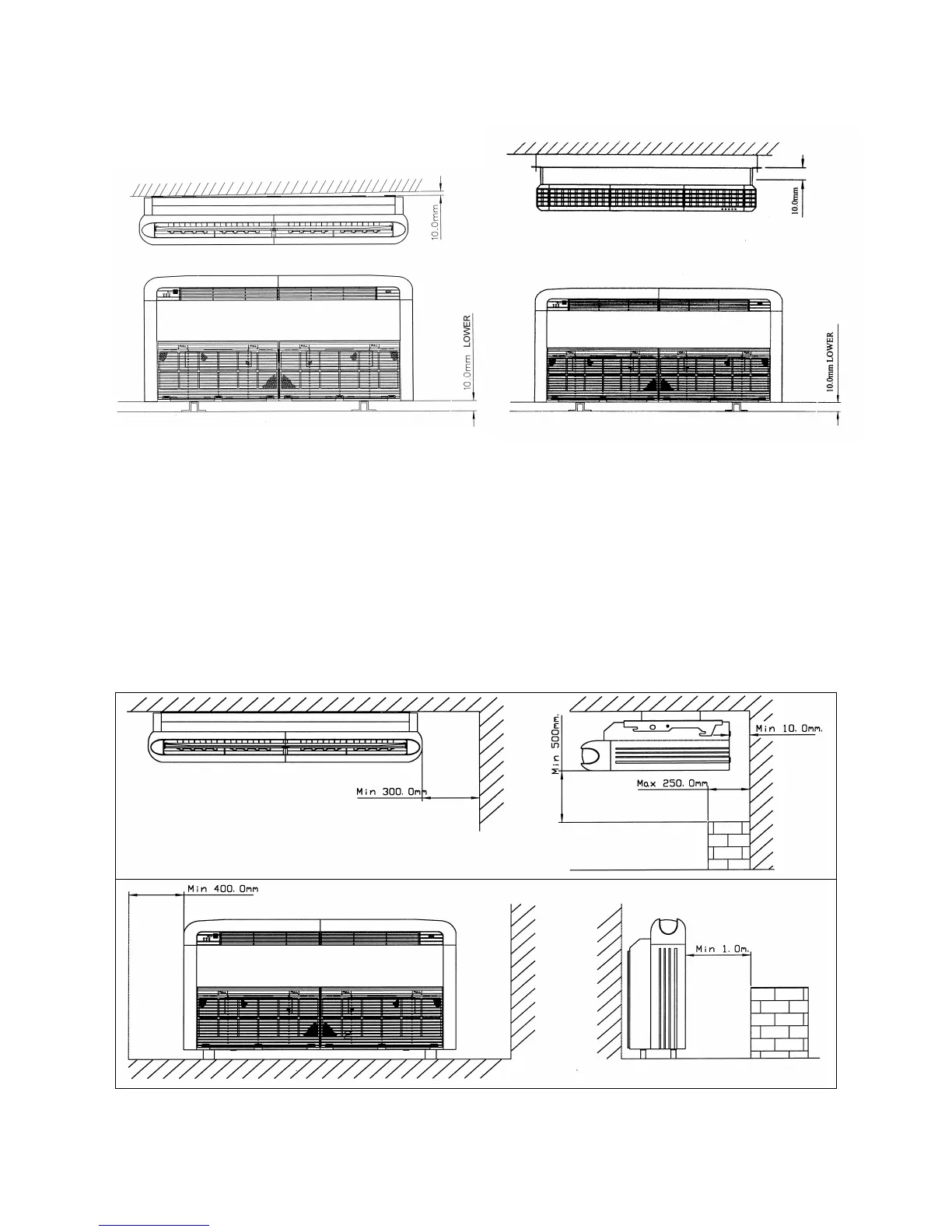

• Check the gradient for drainage flow as recommended in Figure B.
• Provide clearance for easy servicing and optimal air flow as shown in Figure C.
• The indoor unit must be installed such that there is no short circuit of the cool discharge air with the
warm return air.
• Do not install the indoor unit where there is direct sunlight shining on the unit. The location should be
suitable for piping and drainage installation. The unit must be a large distance away from the door.
Semi-Enclosed Mounting
• In case the unit is to be half recessed into false ceiling, please check the unit is well align.
MCM-D
Figure C
Page 66
