page 13
A
B
Deta il
M
D
Detai l M
Screw Hole
1 4×2
0
(f or s et tin g)
8- 14x20 Scre w hol e
14-1 4 x20 Scr ew hol
e
A
B
Deta il
M
D
Detai l M
Screw Hole
1 4×2
0
(f or s et tin g)
8- 14x20 Scre w hol e
14-1 4x20 S cr ew hol
e

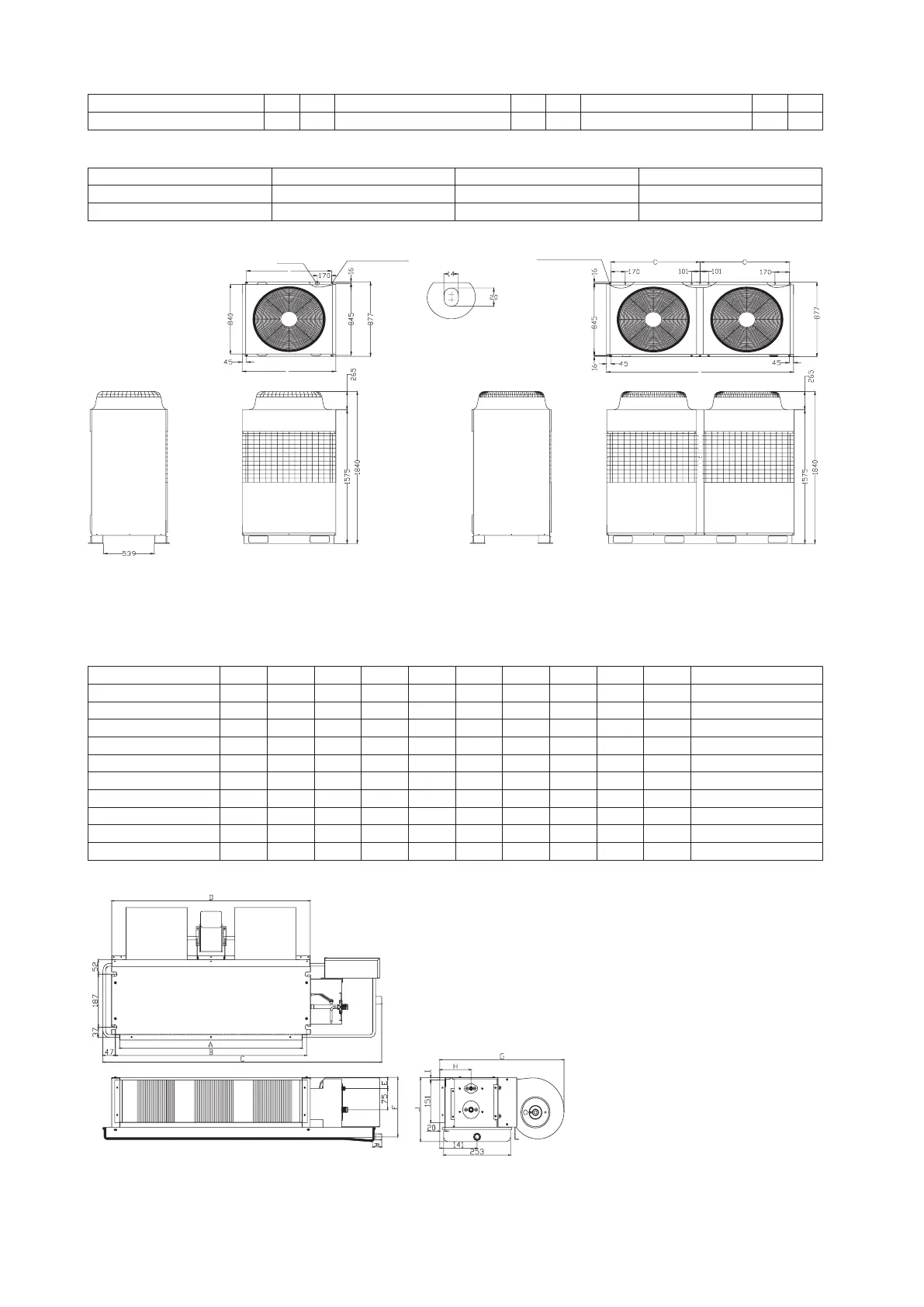

MDS080,100,120,150,180,200,220,240,260,280,300B(R) Unit: mm
Model A B Model A B Model C D
MDS080/100/120B(R)/ 120B(R)M 900 990
MDS150B(R)/130B(R)S/ 150B(R)M/150B(R)S
1200 1290 MDS180/200/220/ 240B(R) 950 1990
MDS260/280/300B(R)are combined units, made up by a master unit and a slave unit
Combined unit MDS260B(R) MDS280B(R) MDS300B(R)
Master unit + Slave unit
MDS120B(R)M+MDS150B(R)S MDS150B(R)M+MDS130B(R)S MDS150B(R)M+MDS150B(R)S
D 990+10+1290 1290+10+1290 1290+10+1290
4.2 Outlines & Dimension of Indoor Unit
MCC008, 010, 015, 018, 020, 025, 030, 040, 050, 060T Unit: mm
Model A B C D E F G H I J No. of fans
MCC008T 690 722 1054 751 39 210 469 118 9 220 2
MCC010T 690 722 1054 751 39 210 469 118 9 220 2
MCC015T 690 722 1054 751 39 210 469 118 9 220 2
MCC018T 690 722 1054 751 39 210 469 118 9 220 2
MCC020T 950 981 1314 1005 32 248 490 81 14 251 2
MCC025T 950 981 1314 1005 32 248 490 81 14 251 2
MCC030T 950 981 1314 1005 32 248 490 81 14 251 2
MCC040T 1300 1331 1664 1355 32 248/ 490 21 14 251 3
MCC050T 1300 1331 1664 1355 32 248/ 490 21 14 251 3
MCC060T 1560 1591 1924 1615 32 248 490 81 14 251 4
