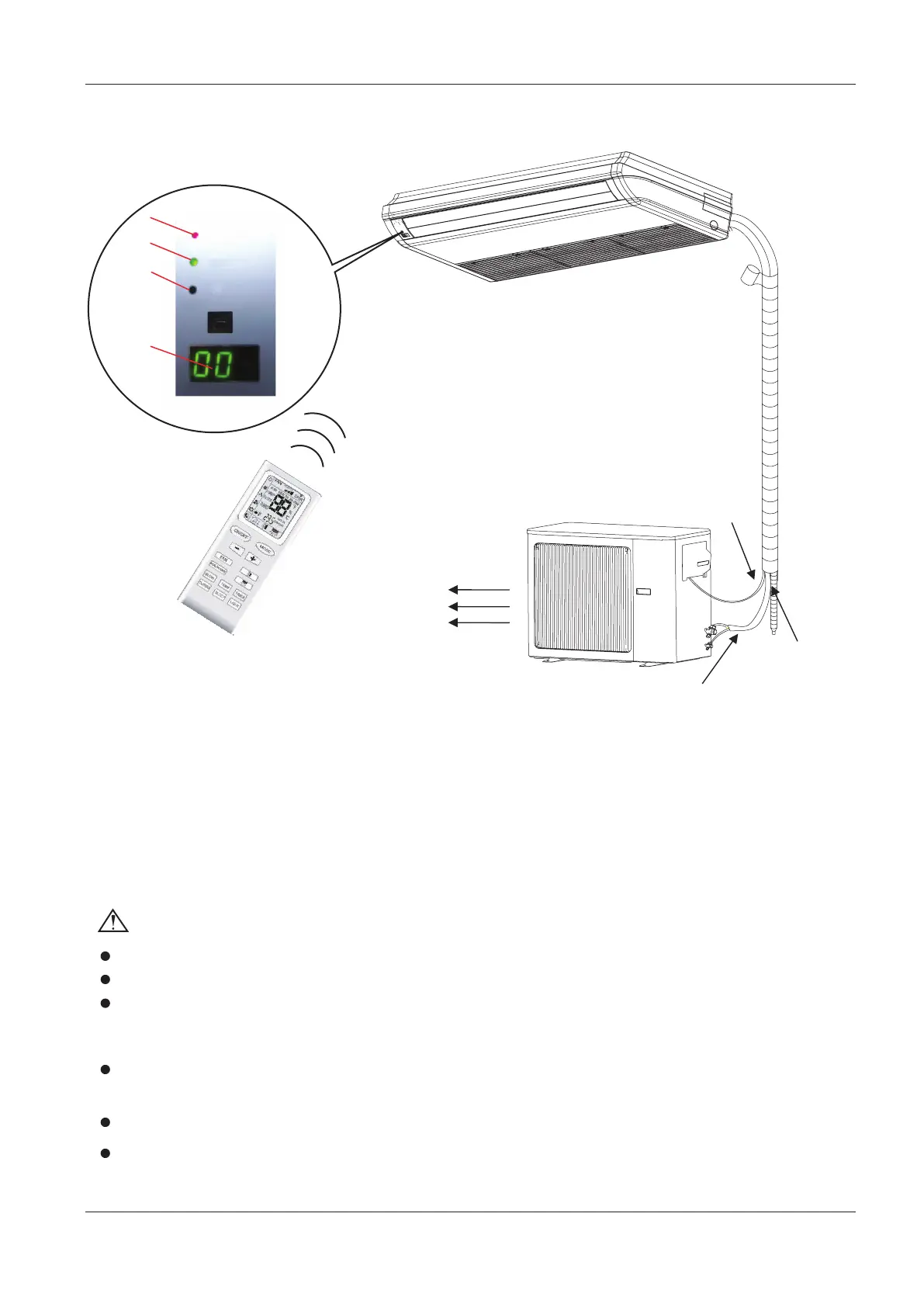

1 Names and Functions of Parts
Power cable
Refrigerant pipe
Drainage pipe
Instruction of LED Board Display
① Indication LED of “POWER”:
The LED will go on when the unit is power on
The LED will go off when the unit is power off
② Indication LED of “COOL” :
The LED is on under “COOL ” mode operating
The LED is off when “COOL” mode is not operating
③ Indication LED of “HEAT”:
The LED is on under “HEAT” mode operating
The LED is off when “H EAT” mode is not operating
④ Display of temperature or malfunction code.
Air outlet
CAUTIONS
:
Wrong wiring will cause electrical malfunction.
Do not pull the wire when fixing it with wire clamps.
Do not make the wire too loose in the outdoor unit.
NOTES:
If the power cord is damaged, it must be replaced by the manufacturer or its service agent or other
qualified person in order to avoid hazard.
The unit should be installed in accordance with national wiring regulations.
The gap between all terminals on the breaker must be 3mm at least. All wiring terminals must be
installed in its ports. And the wires must be fixed with wire clips.
Remote controller
1
POWER
COOL
HEAT
④
③
①
②
