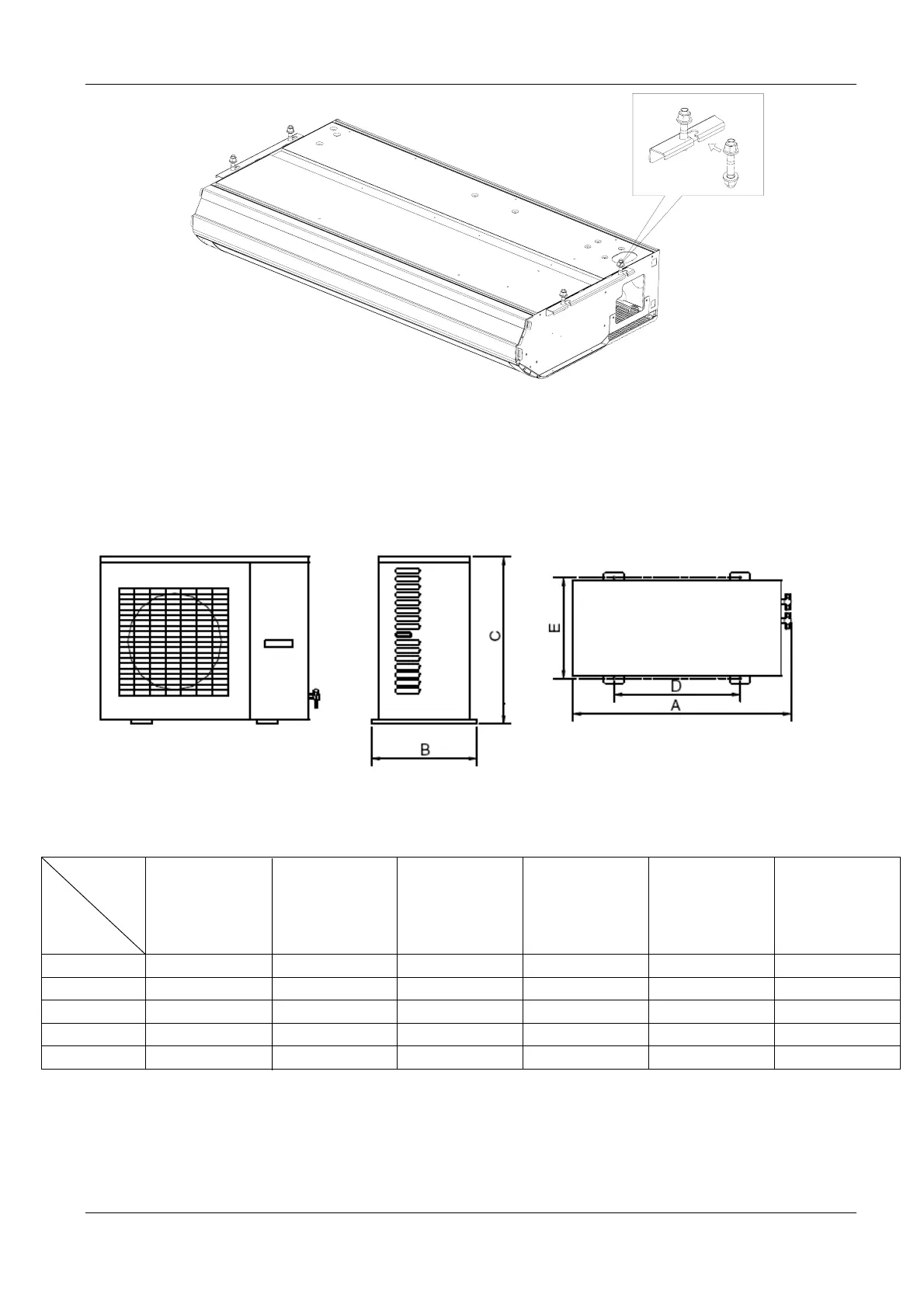

Fig. 11-10
11.2 Installation of the Outdoor Unit
A. Profile Dimensions of the Outdoor Unit
Fig. 11-11
Unit: mm
Model
Item
A
912
1018 980 1018 1107 1107
B
378
412 427 412 440 440
C
690
695 790 840 1100 1100
D
550
572 610 572 631 631
E
378
378 395 378 400 400
38
1.5TON SIDE-
DISCHARGE
OUTDOOR UNIT
DISCHARGE
OUTDOOR UNIT
2 TON SIDE-
DISCHARGE
OUTDOOR UNIT
3 TON SIDE-
DISCHARGE
OUTDOOR UNIT
3.5TON SIDE-
DISCHARGE
OUTDOOR UNIT
4 TON SIDE-
DISCHARGE
OUTDOOR UNIT
2.5 TON SIDE-
