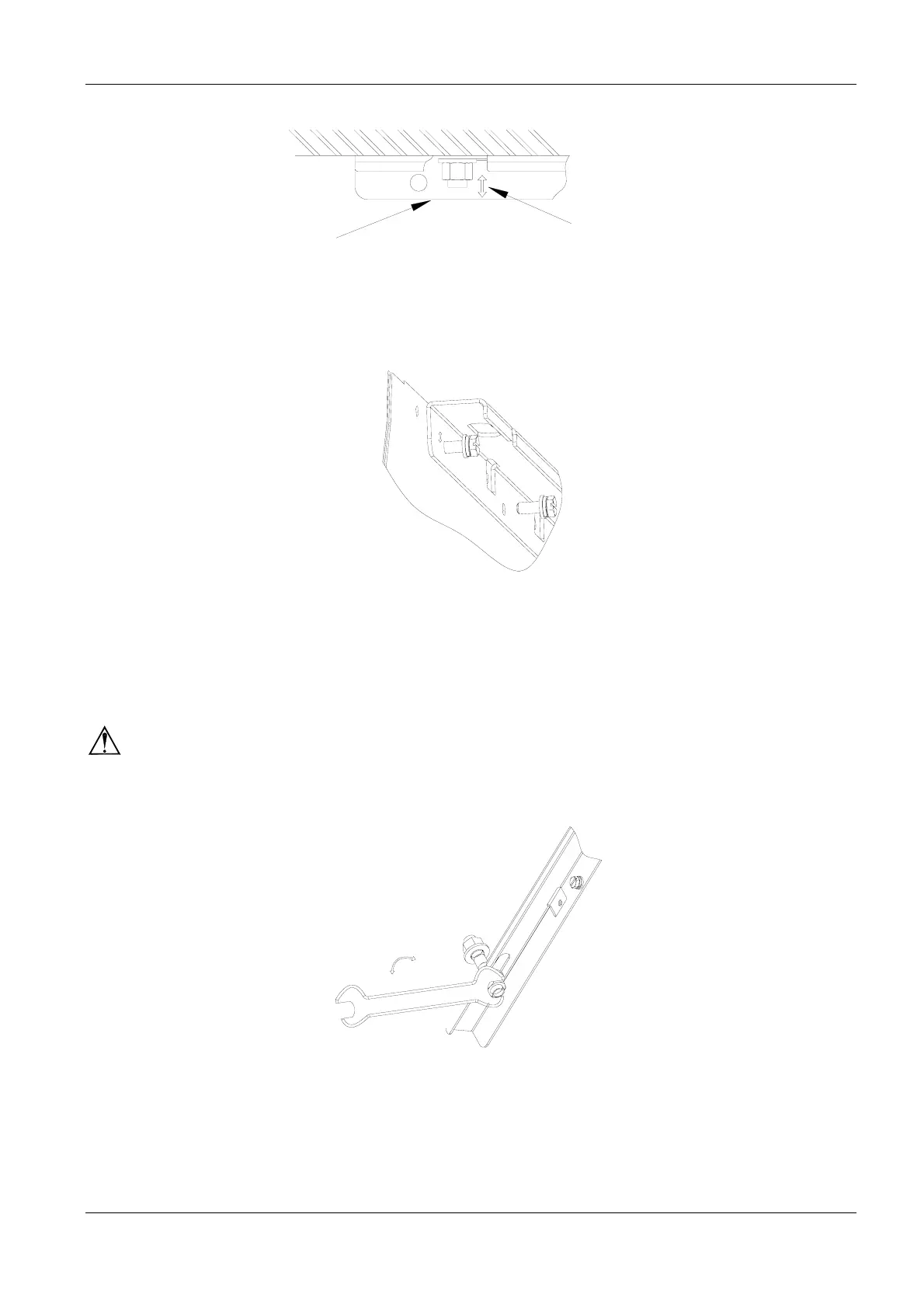

Hanger bracket
Bolt position inward
Ceiling slab
Fig. 11-7
2. Suspension bolts should stay side the cap of the indoor unit .Never remove the cap. Lift the unit and slide the
hanger bracket in the way that the holes on it will match with the corresponding bolts. (See Fig. 11-8)
Fig.11-8
Screw tightly both hanger brackets setting bolts (M10.) (See Fig. 11-6)
Screw tightly both hanger bracket fixing bolts (M6) to prevent the movement of the indoor unit. (See Fig. 11-6)
Adjust the height of the unit to incline slightly the rear side of the drain pipe so as to optimize the drainage.
CAUTIONS!
Adjust the height by turning the unit with a spanner.
Insert the spanner from the hanger bracket opening. (See Fig. 11-9)
Fig. 11-9
Hanging and Mounting
It is possible to carry out the installation by using inward facing hanger brackets without moving the brackets
from the indoor unit. (See Fig.11-10)
Be sure to use only the specified accessories and parts for installation work.
