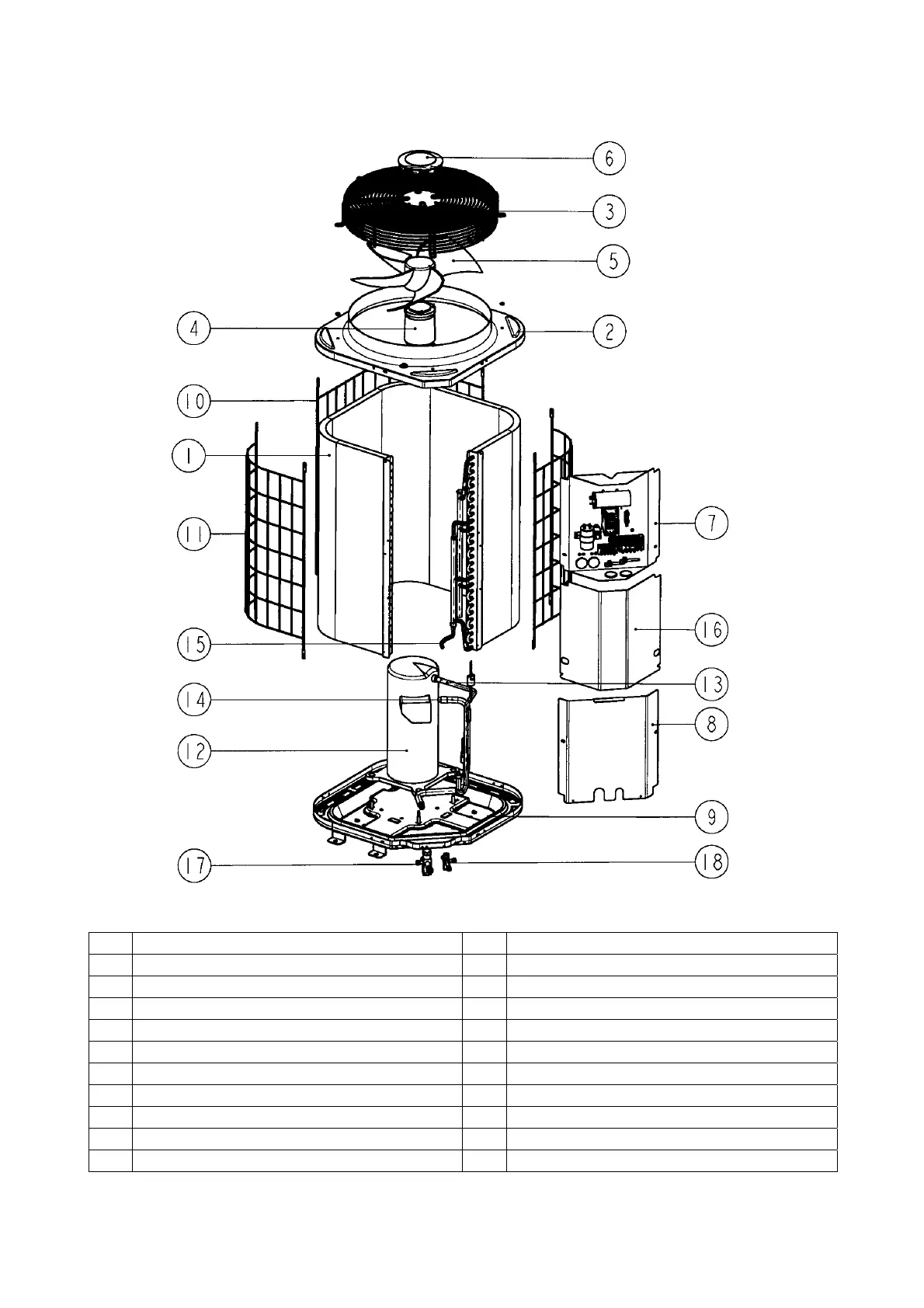

MODEL : MVCU 030 / 035A
NO DESCRIPTION NO DESCRIPTION
1 COIL ASSY 11 SIDE COIL GUARD
2 TOP PANEL 12 COMPRESSOR
3 FAN GUARD 13 DISCHARGE TUBE ASSY
4 FAN MOTOR 14 SUCTION TUBE ASSY
5 FAN BLADE 15 ASSY, TUBE HEADER TO DISCHARGE
6 FAN COVER 16 TERMINAL BOX COVER
7 CONTROL BOX ASSY 17 SUCTION VALVE
8 SERVICE PANEL 18 DISCHARGE VALVE
9 BASE PANEL
10 MIDDLE COIL GUARD
