McQuay MVCU 025 A

38

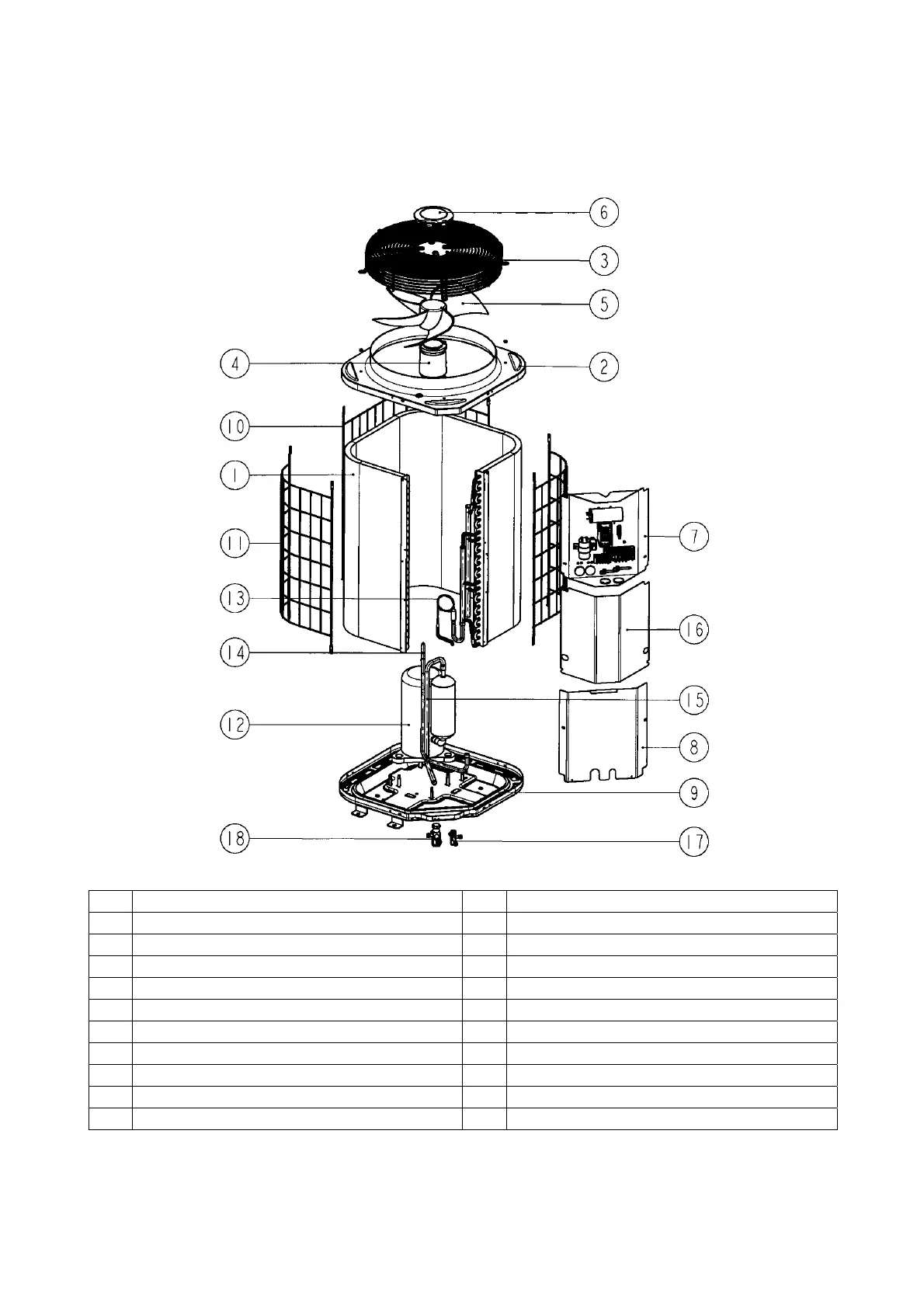

Parts List
MODEL : MVCU 025A
NO DESCRIPTION NO DESCRIPTION
1 COIL ASSY 11 SIDE COIL GUARD
2 TOP PANEL 12 COMPRESSOR
3 FAN GUARD 13 ASSY, TUBE HEADER TO DISCHARGE
4 FAN MOTOR 14 DISCHARGE TUBE ASSY
5 FAN BLADE 15 SUCTION TUBE ASSY
6 FAN COVER 16 TERMINAL BOX COVER
7 CONTROL BOX ASSY 17 DISCHARGE VALVE
8 SERVICE PANEL 18 SUCTION VALVE
9 BASE PANEL
10 MIDDLE COIL GUARD
