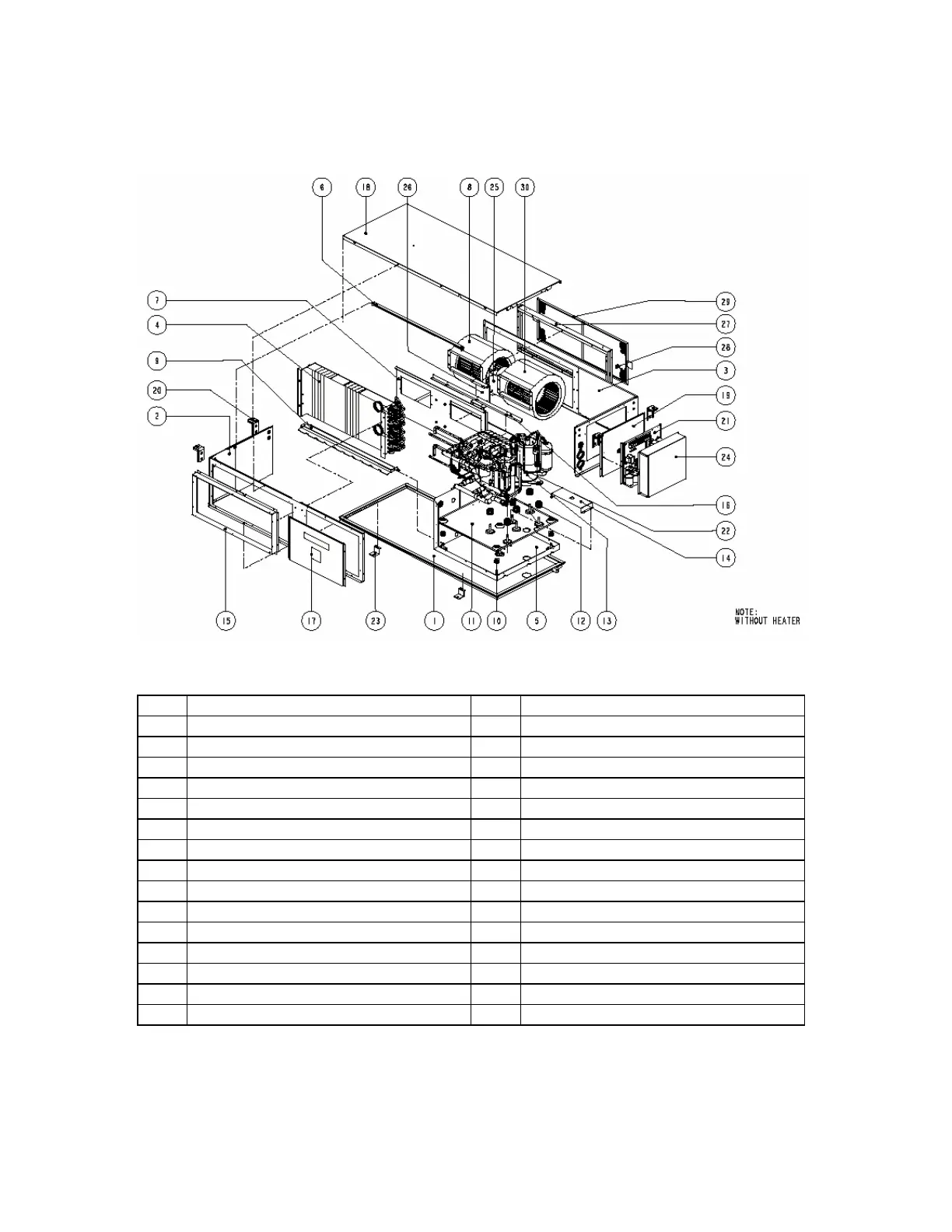

Model : MWH025B
No. Part Description No. Part Description
1 Assy., Ins. Drain Panel 16 Assy., Fan Deck Support
2 Assy., Ins. Front Panel 17 Assy., Ins. Front Service Panel
3 Assy., Ins. Back Panel 18 Assy., Ins. Top Panel
4 Assy., Coil 19 Assy., Ins. Right Service Panel
5 Assy., Ins. Comp. Base Lower 20 Hanger Bracket
6 Assy., Ins. Fan Dek Hanger 21 Assy., Electrical Box
7 Assy., Ins. Fan Deck 22 Assy., Unit Tubing
8 Blower Right 23 Packing Bracket
9 Assy., Ins. Water Condensate Guide 24 Cover Control Box
10 Rubber Grommet 25 Fan Motor
11 Assy., Ins. Comp. Base Upper 26 Assy., Motor Support
12 Compressor Grommet 27 Assy., Filter Flange
13 Compressor 28 Thermistor Holder
14 Tube In Tube Clamp 29 Air Filter
15 Duct Flange 30 Blower Left
